Acoustic & Vapor Seal

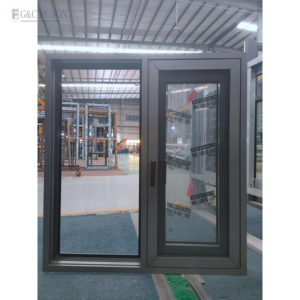

Fuson Canadian Standard Black Aluminum Alloy Glass Casement Swing Door & Window
View Specifications
Precision Architectural Aluminium & Glazing Systems
Explore our CE-certified kitchen-entry, balcony, and residential barrier systems. Engineered with industrial-grade 6063-T6/T5 alloy extrusions, advanced thermal barrier integration, and high-performance safety glass.
Acoustic & Vapor Seal
UL Fire Rated Grade
Premium Luxury Fire Rated Frameless Hidden Leather Aluminium Interior Kitchen Barrier
View Specifications
Smart Motorized Lift
Fuson Electric Lifting Intelligent Balcony & Kitchen Pass-Through Fold-Up Glazing
View Specifications
Heavy-Duty Axis
Modern Architecture High-Security Black Aluminum Structural Glazed Pivot Door
View Specifications
Continuous Folding

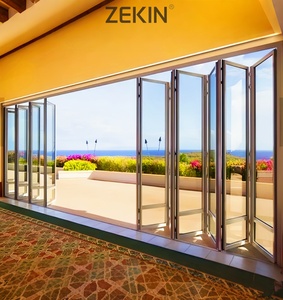

ZEKIN Customized Accordion Bi-Fold Double Glazed Kitchen Space Divider Door
View Specifications
Passive House Standard
High-Efficiency Wood-Aluminium Composite Passive Thermal Performance Partition System
View Specifications
Polyamide Thermal Break
Modern Slim Profile Pivot Aluminum Tempered Glass Thermal Separation Door
View Specifications
Electric Automation
High-Span Motorized Aluminium Extrusion Shutter & Commercial Utility Door
View Specifications
180,000㎡
Smart Production Base
25+ Yrs
Extrusion & Glazing R&D
100+
Patents & Global Standards
AS2047N6
Typhoon & Wind Pressure Rated
Quality, Compliance & Engineering
CE Certified Aluminium Glass Kitchen Doors: Technical Benchmark
In modern architectural spatial design, the transition between cooking spaces and living environments represents one of the most mechanically and chemically challenging barrier lines in residential buildings. High-end kitchens subject partition assemblies to accelerated oil-vapor exposure, recurrent humidity spikes, thermal shifts, and frequent cycle fatigue. Sourcing compliant, CE Certified Aluminium Glass Kitchen Doors from qualified exporters requires deep scrutiny of profile metallurgy, gasket elasticity, and mechanical hinge resistance.
The European Harmonised Standard EN 14351-1:2006+A2:2016 establishes mandatory declaration of performance criteria for pedestrian doorsets, windows, and partition barriers. When applied to premium aluminium glass kitchen doors, rigorous certification ensures compliance with critical safety and environmental vectors:
EN 12150-1 Toughened Glass
Thermally toughened soda lime silicate safety glass guarantees 4 to 5 times greater flexural strength than annealed glass, resisting thermal shock up to 200°C from cooking equipment while eliminating shatter hazards.
Alloy Purity (6063-T6/T5)
Engineered via prime aluminium billets with controlled silicon and magnesium ratios. Ensures high tensile strength (≥205 MPa) with minimal profile deflection, supporting expansive 3.2-meter ceiling-height installations.
Air Permeability Class 4
Complies with EN 12207 air tightness standards. Co-extruded EPDM cellular gaskets and magnetic interlocks effectively trap kitchen aerosolized oils, volatile organic compounds, and steam within the cooking envelope.
Information Gain Insight: Unlike standard interior timber or basic UPVC joinery, 6063 architectural aluminium possesses zero hygroscopic expansion. In tropical or coastal markets (e.g., Southeast Asia, the Gulf, and Mediterranean belts), timber kitchen doors regularly bind against jambs due to monsoon moisture absorption. Architectural aluminium doors maintain sub-millimeter tolerances permanently, preserving smooth sliding or pivot kinematics across decades of heavy service.
Engineering Matrix: Kitchen Door Structural Substrates
| Performance Parameter | Architectural Aluminium Glass (DERCHI) | UPVC / Vinyl Profiles | Engineered Solid Wood / Timber |
|---|---|---|---|
| Dimensional Stability | Zero swelling; linear thermal coef. 23×10⁻⁶/K | Moderate creep under elevated temperatures | High hygroscopic expansion (3-8% volume shift) |
| Vapor & Grease Resistance | Hydrophobic fluorocarbon/powder coat; inert | Degrades and yellows under airborne kitchen grease | Absorbs grease stains; requires constant resealing |
| Sightline Minimalism | Ultra-narrow visible stiles down to 16mm | Bulky frames (>75mm) to offset flexure | Heavy intermediate rails (>90mm) required |
| Fire Retardancy & Safety | Class A1 / EN 13501-1 Non-combustible base | Releases toxic hydrogen chloride (HCl) gas | Combustible; low fire rating without core treat |
| Acoustic Isolation (Rw) | 32 dB to 42 dB with laminated double glazing | 26 dB to 30 dB standard | 28 dB to 33 dB dependent on core mass |
Global Market Intelligence
Future Procurement & Technological Trends (2025–2030)
Strategic insights for real estate developers, commercial architectural procurement managers, and international building materials distributors.
Ghost Stiles & Flush Tracks
Global demand is rapidly shifting toward zero-threshold recessed floor tracks and completely concealed top-hung roller hardware. This achieves barrier-free universal access (ADA compliance) while eliminating grease-trapping floor channels.
BIM Integration & Modular Prefab
Modern Tier-1 general contractors require digital twin readiness. Procuring pre-glazed, pre-hung cassette kitchen doors supported by Level 300/350 BIM models reduces jobsite finishing timelines by up to 65% in hospitality and multi-family towers.
Dynamic Glazing & Smart Film
Architects are heavily specifying switchable PDLC (Polymer Dispersed Liquid Crystal) privacy glass. Kitchens instantly toggle from open, daylight-flooded visual transparency to opaque shielding during intense culinary preparation.
Additionally, Low-Carbon Extrusion Verification (EPD) has become a primary qualifying hurdle across European and North American customs clearing. Leading exporters now supply Environmental Product Declarations validating the use of renewable-powered aluminium smelting and post-consumer scrap loops, contributing critical credits toward LEED Platinum and BREEAM certifications.
Manufacturing Capabilities
Why Engineering Teams Choose DERCHI (Dejiyoupin)
Guangdong Dejiyoupin Doors and Windows Co., Ltd. ranks among China's Top 10 premium door and window manufacturers, operating from the industrial epicenter of Foshan.
180,000㎡ Intelligent Facility
Housing automated CNC multi-axis machining centers, dust-free robotic glazing lines, and German-designed profile joining technologies, supporting annual capacities exceeding 300,000 square meters of high-end joinery.
Global Certification Array
Complete compliance documentation including CE (EN 14351-1), ISO 9001 quality management, Australian AS 2047 N6 structural wind load testing, and UL fire-rated door assemblies. Tested and accepted by third-party testing bodies.
Dedicated Engineering Support
Our bilingual structural engineers prepare parametric CAD shop drawings, glass wind-load deflection calculations, and custom extrusion profile dies, delivering turnaround on bespoke requests within 24 to 48 hours.
Procurement Knowledge Base
Frequently Asked Questions for Importers & Contractors
What specific standards govern CE certified aluminium glass kitchen doors? +
Under the EU Construction Products Regulation (CPR 305/2011), the harmonised standard EN 14351-1 dictates factory production control (FPC) and mandatory testing criteria. This covers mechanical strength, air permeability (EN 12207), water tightness (EN 12208), acoustic insulation (EN ISO 10140-2), and the critical safety verification of safety glass impact performance (EN 12600). CE marking verifies that the manufacturer has established complete traceability and legal declarations of performance (DoP).
How does aluminium glass construction resolve the humidity and vapor issues typical of domestic kitchens? +
Unlike organic materials, 6063-T6 anodized or powder-coated aluminium profiles are completely non-porous and zero-hygroscopic. They do not retain grease, harbor mildew, or exhibit seasonal swelling. Equipped with multi-lip EPDM weatherstripping and silicone perimeter sealing, aluminium doors isolate kitchen odors, oil mist, and humidity from adjacent open-concept living zones, while remaining effortless to degrease with standard non-abrasive cleaners.
What are the minimum ordering requirements and typical lead times for custom project configurations? +
Because our facility supports both modular projects and bespoke architectural villas, Minimum Order Quantities (MOQ) start as low as 1 bespoke unit for residential luxury estates, or full container loads (FCL) for high-rise residential developments. Standard engineering drafting and CAD shop approvals require 2-3 business days. Production timelines range from 20 to 30 days depending on profile finishes (e.g., AkzoNobel powder coating vs. fluorocarbon PVDF) and specialized glazing specifications.
How are oversized glass and slimline frames packaged to prevent damage during ocean transit? +
Export consignments utilize heavy-duty ocean-grade packing protocols: every aluminium profile is wrapped in scratch-resistant protective PE film, corners are shielded with reinforced EPE foam protectors, and entire glazed assemblies are packed into fumigated, fully enclosed plywood crates with structural interior desiccant packs to prevent moisture condensation during multi-week ocean freight voyages.
Can DERCHI supply complete hardware fittings conforming to European mortise standards? +
Yes. We integrate first-tier international hardware including German Siegenia, Hoppe, and Roto hardware systems, or custom heavy-duty concealed pivots rated for >200,000 continuous operating cycles (EN 1191 test standard). Magnetic silent latches, hydraulic soft-closing dampers, and digital smart security locks are routinely integrated into our factory-machined profiles.
Accelerate Your Project with Certified Architectural Joinery
Submit your door schedules, opening dimensions, or CAD elevations. Our engineering team will return comprehensive shop drawings, structural wind-load validations, and factory-direct export proposals within 24 hours.
Contact Us
