Precision-Engineered Architectural Systems
Explore our certified aluminium internal doors, double-glazed acoustic partitions, hung casements, and sliding solutions custom-manufactured to strict European CE and international architectural tolerances.
Acoustic / Ventilation

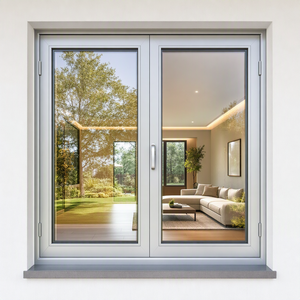

Factory Workshop Bottom Hung Aluminum Casement Window
AS 2047 & CE

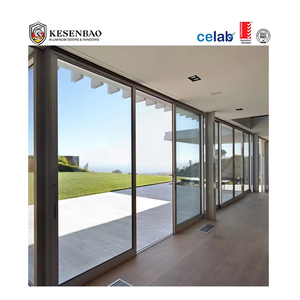

Australian Standard Double Glazed Sliding Door System
French Patio
High Quality Exterior Sliding Glass French Door
Grand Entrance

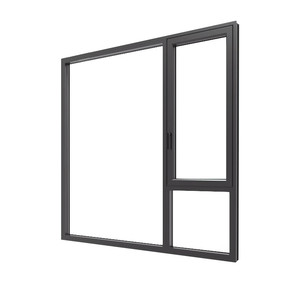

Custom Large Glazed Architectural Entry Doors
Clad Wood / CE

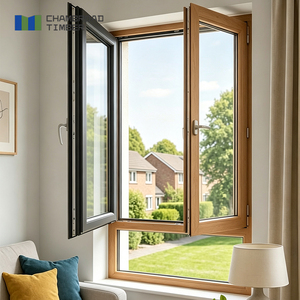

Energy-Saving Triple Glazed Aluminum Clad Wood Windows
Acoustic Inside Door
Modern Custom Sound Insulated Aluminum Casement Door
Impact / NFRC

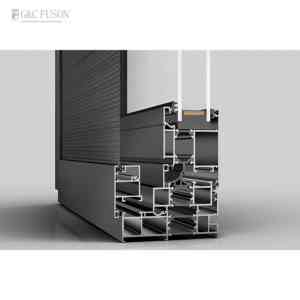

Fuson American NFRC Hurricane Impact Casement Window
Thermal Break

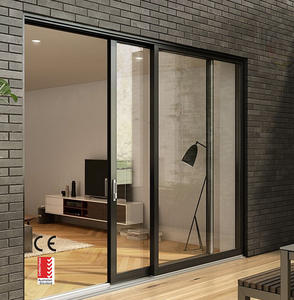

Heavy Duty Thermal Break Sliding Door With Insect Screen
Technical Specification & CE Harmonized Norms
In modern architectural design, interior doors are no longer treated as passive space dividers. Commercial interior glazed screens, executive office casements, and residential suite entry doors must satisfy rigorous acoustic isolation, cyclical fatigue endurance, and mechanical stability standards.
1. Understanding CE Certification Under EN 14351-1 & prEN 14351-2 for Inside Doors
CE marking on aluminium internal doors signifies strict conformity with the Construction Products Regulation (CPR, EU Regulation No 305/2011). Under standard harmonized test methods, internal doorsets are assessed for Release of Dangerous Substances (VOC emission classification), Acoustic Performance (EN ISO 10140-2 / EN ISO 717-1), Operating Forces (EN 12217, achieving Class 1 to Class 4 depending on handle activation torque), and Mechanical Durability (EN 1191 / EN 12400 testing up to 200,000 continuous opening and closing cycles without hinge drop or latch failure).
For European and international specification engineers, acquiring our Declaration of Performance (DoP) and Factory Production Control (FPC) audit documentation ensures that door sets meet the exacting legal standards of municipal building control. The profile wall thickness across our primary interior door series conforms to high-precision EN 12020-2 standards, with wall thicknesses calibrated between 1.6mm and 2.5mm for structural integrity under frequent daily commercial traffic.
2. Metallurgy, Extrusion Quality, and Surface Finishing Technology
Our factory utilizes primary architectural-grade 6063-T5 / 6063-T6 virgin aluminium alloy billets, guaranteeing superior chemical composition with strictly governed magnesium and silicon ratios. Unlike secondary scrap extrusions prone to surface pitting and structural brittleness, our virgin billets provide tensile strengths exceeding 160 MPa and yield strengths above 110 MPa. This metallurgical purity is critical when milling mortise pockets for concealed multi-axis hinges and flush magnetic latch plates.
Surface treatment directly governs scratch resistance, UV resilience, and tactile luxury. Our export production lines are equipped with Qualicoat-certified electrostatic powder coating systems (delivering 60 to 80 microns of architectural dry film thickness), Qualanod-certified anodizing (Class 15 and Class 20 films providing exceptional abrasion resistance and metallic lustre), and AkzoNobel fluorocarbon (PVDF) finishes that withstand aggressive interior cleaning agents in clinical or hospitality environments.
Acoustic Decoupling
- Rw values from 32 dB to 44 dB
- Concealed drop-down bottom threshold seals
- Multi-cavity vulcanized EPDM gaskets
- Acoustic PVB laminated glazing
Thermal Barrier
- Polyamide PA66 GF25 thermal breaks
- Frame Uf values down to 1.6 W/(m²·K)
- Warm edge spacer bars (Swisspacer)
- Condensation control in climate-zoned spaces
Glazing & Fire Norms
- Fully tempered safety glass (EN 12150-1)
- Laminated safety panes (EN 14449)
- EI30 / EI60 fire-rated glass options
- Class 0 surface flame spread ratings
Endurance Testing
- EN 1191 Grade 7: 200,000 test cycles
- Heavy-duty 3D adjustable pivot/butt hinges
- German & Italian locking mechanisms
- Zero sag tolerance over 3000mm heights
Why Tier-1 Contractors Partner with DERCHI
Operating from our modern 180,000㎡ industrial headquarters in Foshan, Guangdong—the epicentre of global architectural aluminium manufacturing—Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) delivers end-to-end engineering excellence for prestigious villa estates, 5-star hotels, commercial office towers, and mixed-use developments worldwide.
Top 10 Chinese Door & Window Brand with Over 25 Years of Export Heritage
Founded on rigorous structural engineering and an unwavering commitment to craftsmanship, DERCHI has expanded into a comprehensive architectural enterprise. Our intelligent fabrication campus houses automated Italian Elumatec and German Schüco-spec 5-axis CNC machining centers, robotic corner-crimping units, automated glass assembly clean rooms, and high-precision testing laboratories.
By controlling the complete value chain—from initial architectural shop drawings, structural wind-load and acoustic simulation, profile extrusion and thermal stripping, down to final export crating—we guarantee millimetre-level dimensional accuracy and flawless mechanical operation across large-volume international purchase orders.
Integrated BIM & CAD Engineering
Our dedicated R&D engineering office converts architectural elevations into parametric BIM families and shop drawings with 48-hour turnarounds, eliminating costly on-site discrepancies.
Global Testing Certifications
DERCHI holds CE certification under European standards, Australian AS 2047 cyclonic pressure compliance, UL fire ratings, and ISO 9001 / ISO 14001 environmental management protocols.
Seaworthy Export Crating
Minutes from Pearl River Delta container ports (Nansha, Shekou, Yantian), every door is wrapped in anti-scratch PE film, corner-guarded with high-density EPE foam, and encased in ISPM-15 fumigated plywood crates.
Independent Lab Verification & Project Track Record
Proven across luxury hospitality, corporate headquarters, and high-density residential towers across Europe, Australia, Southeast Asia, and the Middle East.
Technological Innovations in Aluminium Inside Doors
Driven by minimalist interior architecture and stringent environmental mandates, interior door engineering is undergoing a transformative shift toward invisible integration, acoustic comfort, and smart living.
Flush-to-Wall Frameless Architecture
Modern luxury developments demand zero-trim aesthetics. Our sub-frame profiles install directly into gypsum and masonry partitions prior to skim plastering. Paired with concealed 3-way adjustable hinges and magnetic latches, the door leaf sits 100% coplanar with the adjacent interior drywall for a seamless planar finish.
Acoustic Decoupling & Drop Seals
With remote work and private executive zones requiring speech privacy, inside doors must deliver measurable acoustic isolation. Our engineering incorporates multi-cavity EPDM perimeter compression gaskets combined with mechanical automatic drop-down bottom seals that drop smoothly upon latching, achieving up to Rw 42 dB sound attenuation.
Smart Access & Magnetic Latch Systems
Interior doors are rapidly integrating biometrics, smartphone NFC, and hidden motorized electromagnetic lock systems. Our mortise cavities are CNC-machined to accommodate low-voltage concealed cabling and Italian magnetic latches that eliminate metal strike clicks, delivering whisper-quiet closing tactile luxury.
Future Procurement Trends in the B2B Door Market
Global supply chain volatility and sustainability mandates are reshaping how commercial developers, general contractors, and door distributors approach factory sourcing.
Prefabricated Modular Pre-Hung Kits
High international site labor costs make on-site door routing and hinge fitting economically obsolete. Procurement managers are aggressively shifting toward complete pre-hung assemblies where frame, architrave, sash, concealed hinges, lock body, and pre-cut gaskets arrive fully pre-machined and factory-tested, cutting jobsite installation time by 60%.
Low-Carbon Recycled Aluminium (ESG Focus)
European and North American green building rating systems (LEED v4.1, BREEAM, and DGNB) mandate verified Environmental Product Declarations (EPD). Global buyers prioritize extrusion mills using hydro-powered smelting and high post-consumer recycled content (up to 75%), lowering embodied carbon footprints significantly.
Hybrid Material Blends: Aluminium + Timber/Stone
While solid timber doors warp in humid, air-conditioned environments, pure metal can occasionally feel cold. Forward-looking architectural specs favor hybrid systems: an extruded structural aluminium chassis offering lifetime dimensional stability, clad internally with micro-thin real wood veneers, sintered stone, or acoustic fluted felt panels.
Frequently Asked Questions on Aluminium Inside Door Procurement
Detailed technical, commercial, and logistic guidance for architects, quantity surveyors, project managers, and building material importers.
