Certified Fenestration Solutions & System Recommendations
Engineered by Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI), our structural aluminum series integrates aerodynamic multi-track stackers, thermal break profiles, and hurricane-rated assemblies tested for extreme regional environments.

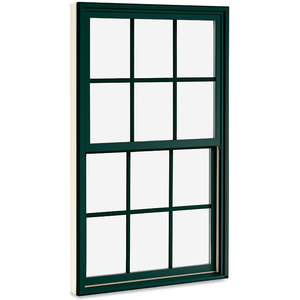

Arch Australia Standard Double Glazed Vertical Sliding Window
View Technical Details →

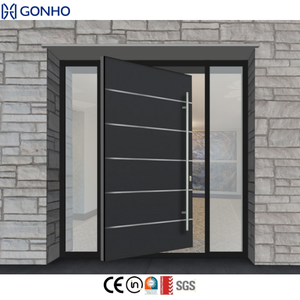

WANJIA Waterproof Swing Exterior Pivot Entry Glass Door
View Technical Details →

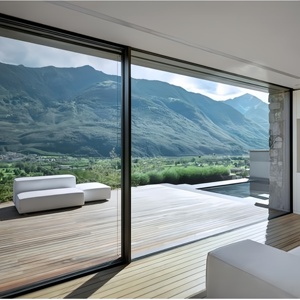

Custom Villa Balcony Double Glazed Energy Efficient Sliding Door
View Technical Details →

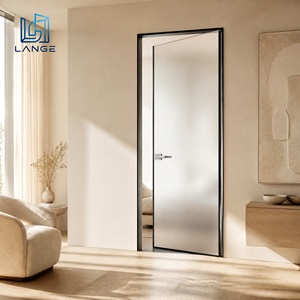

LANGE Invisible Hinge Minimalist Interior Casement Door
View Technical Details →

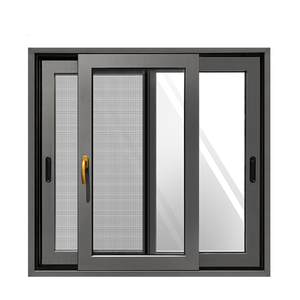

Hurricane Impact Thermal Break Double Layered Sliding Window
View Technical Details →

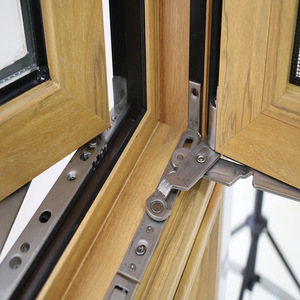

Heat-Insulated Aluminum Clad Wood French Casement Window
View Technical Details →

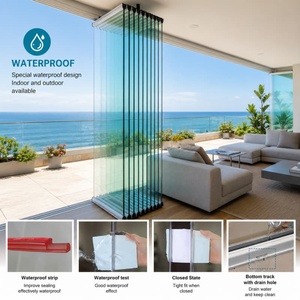

Full-View Folding Bi-Fold Stacking Balcony Window System
View Technical Details →

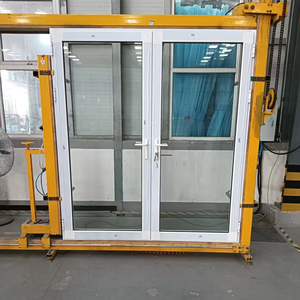

Double Panel Exterior Aluminium Glass French Patio Doors
View Technical Details →Structural Integrity & CE Compliance of Aluminum Stacking Systems
Aluminum stacking windows (multi-slide pocket and telescopic window configurations) serve as a dominant fenestration choice for modern building envelopes. Unlike conventional sliding windows, stacking systems maximize spatial continuity by nesting panels along parallel linear tracks.
EN 14351-1 CE Harmonized Standards
CE certification mandates rigorous third-party mechanical verification. Under European standard EN 14351-1, stacking units must demonstrate air permeability (EN 12207 Class 4), water tightness under driving rain (EN 12208 Class 9A), and wind load structural resistance (EN 12210 Class C5). This guarantees profile deflection under negative and positive pressures does not exceed 1/300 of the span.
Polyamide Thermal Barrier Integration
To achieve building envelope compliance, our profiles incorporate multi-cavity PA66 GF25 (25% glass fiber reinforced polyamide) thermal barriers. By isolating the exterior aluminum casing from the interior architectural profile, overall frame thermal transmittance is drastically reduced ($U_f \le 1.6 \text{ W/m}^2\text{K}$), eliminating condensation risks across dynamic climate zones.
Multi-Track Load-Bearing Mechanics
Stacking configurations place intense weight on the bottom sill. DERCHI integrates CNC-machined 316 marine-grade stainless steel tracks paired with quad-bearing synthetic acetal rollers. Rated to carry up to 300 kg per panel, our precision carriage assemblies maintain low rolling resistance ($\mu \le 0.04$) across over 100,000 cyclical open-close sequences.
| Performance Characteristic | Commercial Grade CE Benchmark | DERCHI Engineered System Metric | Compliance Test Standard |
|---|---|---|---|
| Air Permeability | Class 3 (≤ 9.0 m³/h·m²) | Class 4 (≤ 3.0 m³/h·m²) | EN 1026 / EN 12207 |
| Water Tightness (Static) | Class 7A (300 Pa) | Class 9A / E900 (900 Pa) | EN 1027 / EN 12208 |
| Wind Load Resistance | Class C3 (1200 Pa) | Class C5 / AS 2047 N6 (3000+ Pa) | EN 12211 / AS 2047 |
| Acoustic Attenuation (Rw) | Rw 32 dB | Rw 42 dB (With Acoustic PVB Laminate) | ISO 10140-2 / EN 717-1 |
| Frame Thermal Transmittance ($U_f$) | ≤ 2.4 W/(m²·K) | ≤ 1.5 W/(m²·K) | EN ISO 10077-2 |
Future Procurement Dynamics & Industry Trends (2025–2030)
Procurement managers, commercial developers, and institutional specifiers must navigate shifting global regulations, strict energy ratings, and digital engineering workflows when sourcing large-aperture fenestration systems.
1. Life-Cycle Carbon & EPD Mandates
International green building schemes, including LEED v4.1, BREEAM, and the EU Energy Performance of Buildings Directive (EPBD), increasingly require verifiable Environmental Product Declarations (EPD). Global buyers are prioritizing extrusion partners using low-carbon primary aluminum refined via renewable hydroelectric power, paired with recycled billet inputs (scrap circularity ≥ 40%).
2. BIM-Centric Modular Pre-Fabrication
The risk of site re-drilling and alignment errors has driven commercial builders toward direct BIM Level 2 / IFC 4.0 data exchanges. Exporters capable of supplying LOD 350-ready parametric models eliminate discrepancies before extrusion cutting. Fully unitized or match-marked sub-frame systems ensure accurate site installations, lowering total landed labor costs by up to 35%.
3. Automated Sensor & Motorization Demands
Modern architectural demands require seamless panel movement across heights exceeding 3.5 meters. Stacking window procurement is rapidly migrating toward concealed, brushless DC belt drives controlled via KNX, RS-485, and Zigbee protocol networks. Integrated wind-rain sensors and optical perimeter pinch-guards now represent common requirements for high-end hospitality and penthouse tenders.
Factory Authority: Foshan Direct Manufacturing Power
Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) operates from the global heart of architectural aluminum processing. Ranked consistently among the Top 10 fenestration brands in China, our full-cycle facility manages raw ingot extrusion, anodizing, precision CNC routing, and complete system testing.
180,000㎡ Production Footprint
Our centralized industrial park features 12 automated production lines, delivering over 35,000 square meters of certified windows and doors monthly with absolute dimensional accuracy.
Certified Multi-Regional Portfolios
DERCHI holds CE (EN 14351-1), AS 2047 / AS 1288 (Australia N6 Cyclic), ISO 9001, and UL certifications, ensuring streamlined local building approvals across global project jurisdictions.
In-House Shop Drawings & R&D
Our experienced engineering team provides free structural calculations, BIM objects, and customized CAD shop drawings within 24 hours of receiving site window schedules.
One-Stop System Unification
Source stacking systems, cast aluminum entry doors, modern security pivot doors, minimal glass doors, and garage doors under a single unified factory warranty, reducing freight complexity.
Frequently Asked Questions for Importers & Specifiers
Key considerations covering structural wind loads, logistics, glazing certifications, and factory verification for commercial and residential tenders.
How do stacking windows achieve structural wind load compliance for high-rise coastal installations?
Stacking window designs naturally feature interlocking mullions at each sliding panel joint. For high-rise coastal applications exposed to typhoons or cyclonic events, DERCHI inserts internal high-tensile structural steel or structural 6063-T6 aluminum stiffeners within the interlockers. Our systems achieve the AS 2047 N6 rating and CE Class C5 wind pressure resistance, verified under dynamic water spray and static structural loads exceeding 3000 Pa.
What surface treatment standards are utilized to resist coastal corrosion and UV degradation?
Standard anodizing or entry-level powder coatings often pit and peel within 36 months in coastal environments. DERCHI utilizes AkzoNobel or PPG architectural fluorocarbon PVDF coatings (exceeding AAMA 2605 performance thresholds) or Qualicoat Class 2 super-durable powder formulations. These coatings undergo 4,000-hour continuous salt-spray testing without blistering, ensuring lasting color stability in tropical or coastal conditions.
How does DERCHI guarantee zero transit damage and accurate glass delivery internationally?
All custom glass units are packed in IPPC-certified, heat-treated plywood crates reinforced with exterior steel banding. Panels are isolated using shock-absorbing EVA rubber spacers, waterproof plastic wrap, and desiccants to prevent container-sweat oxidation. Aluminum framing bundles are individually wrapped in protective films and crated, while complete assembly hardware packages are numbered to match CAD shop drawings for efficient job-site installation.
Can DERCHI match bespoke architectural profiles and supply complete structural hardware sets?
Yes. Beyond standard multi-track sliding formats, DERCHI provides custom pocketing jamb details, flush floor-track drainage integrations, integrated insect screens, and concealed heavy-duty German multipoint locking gear (Siegenia, Hoppe, or Sobinco). We engineer every system precisely around your project schedule and architectural plans, delivering fully coordinated fenestration assemblies ready for installation.
Need Certified Engineering Shop Drawings for Your Project?
Contact our technical team in Foshan. Submit your project schedule, architectural elevations, or opening schedules to receive custom CAD details, structural load calculations, and comprehensive FOB/CIF estimates within 24 hours.
