EN 14351-1 Technical Specification & Global Export White Paper

CE Certified Aluminum Terrace Doors Suppliers & Exporter

Architectural Thermal Barrier Enclosures, Impact Resilience, and Turnkey Fenestration Engineering for Global Developers, Façade Contractors, and Commercial Importers.

Export-Grade Architectural Enclosures

Featured Aluminum Systems & Terrace Ingress Portals

Precision-engineered in our 180,000㎡ industrial smart facility under strict ISO 9001 quality supervision, verified to European CE (EN 14351-1), Australian AS 2047, and North American UL performance thresholds.

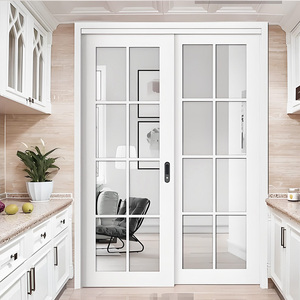

Nordic Style Sliding Glass Door for Kitchen and Terrace Partitions Slimline Series

Customized Nordic Style Sliding Glass Door & Architectural Partition

Explore Specifications
Triple Pane Aluminum Fixed Glazed Windows Uw ≤ 0.82 W/m²K

Triple Pane Insulated Glazed Aluminum Fixed Architectural Daylight System

Explore Specifications
Retractable Plisse Insect Screen Door Integrated Screen

Retractable Pleated Insect Screen Door with Heavy-Duty Aluminum Frame

Explore Specifications
Modern Aluminum Folding Glass Door Frameless Bifold 90% Free Span

Modern Frameless Balcony & Terrace Aluminum Bifold Sliding System

Explore Specifications
Hurricane Proof High Impact Aluminum Windows and Terrace Doors Class C5 / N6 Impact

Hurricane Proof High-Impact Casement and Terrace Enclosure Systems

Explore Specifications
Modern Aluminum Security Front and Terrace Doors EN 1627 RC3/RC4

Modern Multi-Point Locking Bulletproof Glass & High-Security Portal Door

Explore Specifications
High Quality Aluminum Alloy Tilt Turn Window and Terrace Door Multi-Axis Turn

German Architectural Hardware Aluminum Alloy Tilt-Turn Terrace Unit

Explore Specifications
Minimalist Glass Light Security Entrance and Terrace Door Ultra-Narrow Stile

Minimalist Panoramic Daylight Architectural Glass & Terrace Entry Portal

Explore Specifications
180,000㎡
Integrated Factory Base
25+ Yrs
B2B Export Heritage
100+ Nos
Global Patents & Testing
AS 2047N6
Typhoon & Wind Rating
Strategic Procurement Intelligence

Future Sourcing Trends in High-Performance Aluminum Terrace Portals

As international energy codes tighten and extreme weather incidents become frequent across coastal and continental regions, global procurement directors, envelope engineers, and real estate developers must recalibrate procurement checklists. Below are three transformative shifts governing institutional fenestration purchasing.

1. Mandatory Life-Cycle Carbon & Stringent EPD Audits

Procurement mandates across the European Union, the GCC, and Southeast Asia have transitioned from simple thermal compliance to comprehensive Life Cycle Assessments (LCA). Developers now require verified Environmental Product Declarations (EPD) that trace aluminum billet provenance from primary low-carbon electrolytic smelt facilities through to anodizing and powder-coating lines.

Suppliers unable to substantiate circular scrap content (post-consumer recycled aluminum ≥ 40%) face exclusion from LEED Platinum, BREEAM Outstanding, and DGNB-rated enterprise projects.

  • Scope 1, 2, and 3 embodied carbon documentation
  • Zero-halide, non-toxic PA66-GF25 thermal insulation
  • Fluorocarbon (PVDF) 3-coat architectural coating longevity

2. Turnkey BIM/CAD Shop Drawing Pre-Validation

The standard practice of procuring loose profiles for decentralized site fabrication has proven uneconomical due to labor volatility and envelope failure risks. Institutional commercial purchasers now prioritize suppliers offering fully unified BIM Level 2 execution models and parametric CAD schedules prior to factory extrusion.

Factory-assembled sub-frames, calibrated CNC hardware pockets, and certified pre-glazed sash assemblies mitigate coastal site water infiltration while reducing on-site installation schedules by up to 45%.

  • Parametric IFC & Revit library direct integration
  • Automated thermal bridge finite-element simulation
  • Factory unitized crating matched to site crane manifests

3. Multi-Standard Global Certification Reciprocity

Global portfolio developers require factory platforms with certified test data reciprocal across jurisdictional building codes. A terrace portal tested exclusively under local domestic criteria presents severe compliance bottlenecks when imported into Australia (AS 2047 / AS 1288), Europe (CE mark EN 14351-1), or the Americas (AAMA/WDMA/CSA 101/I.S.2/A440).

Tier-1 exporters are evaluated on verifiable notified-body test reports covering cyclical wind-load pressure, air permeability, dynamic water penetration under simulated monsoons, and structural seismic drift.

  • CE Marking EN 14351-1 + Notified Body FPC audit
  • Australian AS 2047 N6 ultimate deflection test (≥4500Pa)
  • UL 10C / NFPA 252 60-90min fire-rated options

Engineering Parameter Baseline: CE / AS / ASTM Matrix

Verified DERCHI Laboratory Values
Performance Vector European EN Standard Australian Standard DERCHI Factory Output Capability Architectural Impact
Thermal Transmittance (Uw) EN ISO 10077-1 / 2 AS/NZS 4859.1 0.79 – 1.35 W/(m²·K) Passivhaus compliant; drastically drops HVAC consumption in extreme climates.
Air Permeability EN 12207 (Class 4) AS 2047 (0.1 L/s·m²) Class 4 (≤ 3 m³/h·m²) Continuous EPDM vulcanized gasket seals prevent draft and conditioned air loss.
Watertightness Under Pressure EN 12208 (Class 9A / E1050) AS 2047 (450 Pa – 600 Pa) Class E1200 (1200 Pa static) Zero water penetration during cyclonic driving rain and extreme monsoon deluges.
Wind Load Resistance EN 12210 (Class C5 / B5) AS 2047 (N6 ≥ 4500 Pa) Deflection < L/300 @ 5000 Pa Structural 6063-T6 aluminum alloy prevents frame twist on high-rise penthouse decks.
Acoustic Attenuation (Rw) EN ISO 717-1 AS/NZS ISO 717.1 38 dB – 46 dB (Triple Glazed) Acoustic PVB laminate dampens urban transport decibels for restful interior living.
Structural Envelope Evolution

Engineering Breakthroughs Driving Terrace Door Design

Modern architectural discourse emphasizes transparency, continuous floor-to-ceiling vistas, and barrier-free integration without compromising envelope safety. The engineering of aluminum terrace systems has evolved across four distinct vectors.

01

Multi-Cavity Polyamide Isolators

Traditional single-strut thermal barriers have been superseded by 34mm–54mm multi-chambered polyamide (PA66 GF25) techno-polymers reinforced with aerogel thermal cores. This prevents thermal bypass across interior and exterior skins, completely preventing condensation during sub-zero winters or sweltering equatorial summers.

02

Flush Invisible Thresholds (Zero-Barrier)

In accordance with universal access codes (DIN 18040-1/2 and ADA), contemporary terrace doors integrate buried, magnetic-seal concealed drainage channels. These systems eliminate the trip hazard of standard 50mm track sills while successfully diverting driven rainwater through subterranean weep networks at up to 120 liters/minute.

03

Heavy-Capacity Concealed Hardware

Triple and quadruple laminated glazed panels can easily weigh between 400kg and 1,200kg per sash. Next-generation pivot and lift-slide bogie trucks incorporate precision stainless steel rollers with sealed ceramic bearings, enabling feather-light manual operation with push-forces under 15 Newtons, or silent automated brushless drive integration.

04

Multi-Point Perimeter Security (RC3/RC4)

Terraces and balconies represent the most vulnerable intrusion ingress vectors. Modern systems employ continuous mushroom-cam interlocking gearboxes, anti-lift pins, and reinforced striker plates that withstand high mechanical prying forces in strict alignment with European EN 1627-1630 burglary resistance standards.

Direct Manufacturer Strengths

Why International Developers & Glazing Contractors Partner with DERCHI

Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) stands among China's elite Top 10 premium architectural fenestration manufacturers. Operating from our central industrial campus in Foshan, Guangdong, we deliver end-to-end engineering, testing, and ocean freight logistics to over 60 countries across Asia, Oceania, the Middle East, Europe, and the Americas.

180,000㎡ Mega Manufacturing Hub

Our Foshan facility operates high-speed German Elumatec 5-axis CNC machining centers, automated robotic powder coating lines, and computerized precision cutting cells capable of delivering over 350,000 square meters of certified architectural doors and windows annually.

Full Certification Compliance

DERCHI products carry genuine, authenticated test reports for European CE Mark (EN 14351-1), Australian AS 2047 / AS 1288, ISO 9001 quality management, ISO 14001 environmental stewardship, and American UL fire ratings, giving institutional developers full peace of mind during municipal inspections.

Free Parametric CAD / BIM Shop Drawings

Our dedicated R&D engineering office comprising 45+ structural engineers develops complete, complimentary CAD shop drawings, wind-load calculation sheets, and glass deflection analyses matching your exact schedule before any raw material is extruded or cut.

Robust Global Freight Packaging

Located in the Pearl River Delta logistics corridor adjacent to Guangzhou and Shenzhen ports, all shipments feature full EPE foam wrapping, vacuum film protection, corner armor, and fumigated steel-reinforced A-frame wooden crates engineered to survive transoceanic transit without scratch or warp.

B2B Procurement Knowledge Base

Frequently Asked Questions on Aluminum Terrace Door Sourcing

Technical, logistical, and compliance answers prepared by DERCHI fenestration engineers to streamline your procurement due diligence.

What specific standards must an aluminum terrace door fulfill to achieve legitimate CE Certification?
Under European Construction Products Regulation (CPR 305/2011), external pedestrian doorsets and terrace systems must comply with harmonized standard EN 14351-1+A2. Legitimate CE compliance requires testing by an accredited Notified Body covering: Watertightness (EN 12208 up to Class 9A or Exxx), Air Permeability (EN 12207 Class 1-4), Wind Load Resistance (EN 12210 Class 1-5 with deflection C1-C5), Thermal Transmittance (EN ISO 10077-1/2), and Dangerous Substance release. DERCHI provides verified Declarations of Performance (DoP) with full factory production control audits.
How do you prevent salt-spray galvanic corrosion on coastal and marine terrace installations?
For projects situated within 3km of ocean coastlines or tropical marine climates (such as the Philippines, Southeast Asian resorts, or Florida), DERCHI treats primary architectural 6063-T6 / 6061-T6 aluminum alloys using an advanced pre-treatment zirconium chemical wash, followed by either Qualicoat Class 2/3 super-durable fluorocarbon PVDF finishes (70% Kynar 500 resin, ≥ 40 microns) or architectural hard anodization (≥ 25 microns). All screws, hinges, and multipoint lock mechanisms are manufactured strictly from Marine Grade 316 stainless steel to eliminate galvanic oxidation and pitting.
Can DERCHI accommodate oversized sash dimensions, such as 3.5m+ floor-to-ceiling heights?
Yes. Our custom engineering department specializes in structural oversized openings. By utilizing reinforced profile wall thicknesses (ranging from 2.0mm to 3.5mm), internal heavy-duty structural steel stiffeners, and specialized German pivot or lift-and-slide hardware mechanisms rated for sashes up to 800kg, we routinely engineer certified terrace portals exceeding 3,800mm in clear vertical height while strictly maintaining deflection limits within L/250 to L/300 under 4,500 Pa wind pressure.
What is the production lead time and minimum order quantity (MOQ) for international container orders?
For custom project schedules with bespoke finishes and tailored dimensions, our typical factory turnaround is 25 to 35 calendar days following client approval of CAD shop drawings and hardware finishes. Because we cater directly to luxury custom villas, boutique hospitality developments, and commercial developers alike, our MOQ is flexible: we accept single high-specification villa orders (approx. 50㎡) up to multi-container 40ft HQ shipments for high-rise residential developments.
How does DERCHI manage thermal break performance to eliminate condensation in extreme hot/cold zones?
We integrate continuous, multi-chambered polyamide PA66 GF25 strips (reinforced with 25% glass fiber) manufactured by international leaders such as Technoform. The thermal break breaks the continuity of the aluminum alloy frame, achieving an overall frame U-factor (Uf) as low as 1.1 W/(m²·K). Paired with double or triple Low-E argon-filled insulated glass units (IGU) incorporating warm-edge spacers, our terrace door assemblies prevent thermal bridges, surface weeping, and condensation across indoor-outdoor temperature differentials of up to 45°C.
What export packing guarantees are provided to eliminate maritime freight damage?
Every door frame and glazed leaf is subjected to an exhaustive five-stage export packing procedure: 1) Surface peelable protective laser film; 2) 360-degree EPE pearl cotton cushioning wrap; 3) Heavy-duty corrugated corner and edge protectors; 4) Moisture-barrier stretch shrink wrapping; and 5) Fully enclosed, fumigated solid plywood crates or steel A-frames equipped with forklift entry pockets and internal shock-dampening rubber feet. Our cargo insurance claims rate across transoceanic shipping stands below 0.12%.

Engage DERCHI Engineering for Your Project Tender

Submit your architectural drawings, door schedules, or structural wind load specifications. Our senior fenestration engineers will review your opening dimensions and provide turnkey CAD shop drawings, glass thermal configurations, and competitive factory-direct export proposals within 24 business hours.

Get a Quote
