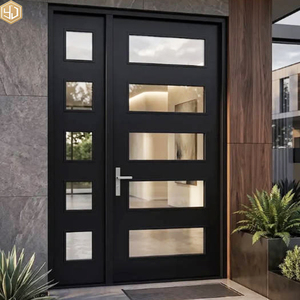

Modern Black Aluminum Entrance Door Sidelite Glass Panel Front Door for Villa House
Heavy-Duty
Thermal Break
Storm Proof
Modular Built
Engineering Architecture of Commercial Aluminium Awning Windows
Aluminium awning windows top-hinge and project outward from the bottom, generating a protective envelope that permits ambient natural ventilation even during severe monsoon rains. Achieving continuous air-tightness and water barrier integrity demands uncompromising structural design and material composition.
Polyamide PA66 GF25 Thermal Barriers
Standard aluminium frames present high thermal conductivity, resulting in undesirable HVAC load loss and inner sash condensation. DERCHI integrates precision-knurled, fiberglass-reinforced Polyamide (PA66 GF25) thermal struts. This separates outer and inner alloy profiles into distinct thermodynamic chambers, preventing structural warping caused by intense temperature differentials while driving overall frame thermal conductivity down to Passive House standards.
Perimeter EPDM Gasket Compression
Water infiltration during horizontal driving rain is eliminated via three-stage continuous EPDM co-extruded cellular rubber seals. Unlike PVC gaskets that become brittle under UV radiation, our vulcanized automotive-grade EPDM retains elastic memory across a -40°C to +120°C spectrum, ensuring airtight acoustic seals and passing the rigorous AS2047 water penetration test above 700 Pascals.
Heavy-Duty 304 Stainless Friction Hinges
Awning vents bear high deadweight and live cantilever torsional moments. We configure four-bar and six-bar heavy-gauge SUS304 stainless steel egress friction stays. These mechanisms provide smooth positioning angles up to 60 degrees, prevent sash drop, and endure more than 50,000 continuous cycle tests without mechanical fatigue, deflection, or clearance loss.
Global B2B Procurement Trends & Specifier Demands
International contractors, real estate developers, and architectural specifiers are navigating stringent carbon policies, evolving building codes, and aggressive delivery timelines. Strategic window procurement from China has shifted dramatically toward validated performance metrics and comprehensive supply-chain consolidation.
Extreme Weather Resilience
Climate volatility has elevated demand for AS2047 N6 and ASTM E1886/E1996 hurricane impact certifications. Importers in coastal regions (Southeast Asia, Australia, Caribbean, and the US Gulf) reject standard domestic assemblies in favor of thick-wall (≥2.0mm) structural extrusions with reinforced corner cleat injection.
Thermal Decarbonization
Governments mandate lower Building Envelope U-values. Importers demand Warm-Edge swisspacers, argon-gas filling, Low-E pyrolytic coatings, and triple-glazing packages achieving Uw ≤ 1.1 W/m²K to satisfy LEED, BREEAM, and Australian Green Star building standards.
Single-Source Sourcing
Developers avoid dividing contracts between window workshops and door fabricators. DERCHI’s 180,000㎡ unified operation enables combined container loads including awning windows, large pivot doors, thermal sliding assemblies, and cast aluminum gates under a cohesive architectural color finish.
BIM & Parametric CAD
Modern procurement is initiated within Revit and Navisworks. Engineering-focused factories that supply native IFC/Revit models, structural deflection calculations, and custom cross-section shop drawings prior to extrusion cutting win tier-one commercial construction bids.
Next-Generation Engineering Innovations in Awning Systems
Fenestration technology is experiencing a paradigm shift toward intelligent automation, advanced vacuum insulation, and active building envelopes. DERCHI's Foshan R&D center is leading several breakthrough commercializations.
Concealed Motorized Actuators & IoT Smart Integration
High-elevation awning transoms and clerestory units present operational challenges. Our next-generation systems integrate concealed 24V linear chain actuators directly inside the frame rebate. Paired with optical rain sensors, wind anemometers, and KNX/Zigbee building automation systems, the windows automatically lock down when storm winds or rainfall occur, safeguarding structural interiors without human intervention.
Vacuum Insulated Glass (VIG) & Aerogel Composite Cores
To exceed net-zero energy demands without increasing glass weight, DERCHI pilots vacuum-insulated glazing units. With a microscopic 0.15mm high-vacuum chamber, heat transfer via conduction and convection is virtually eliminated. Combined with aerogel granules injected inside internal extrusion pockets, these systems deliver an unprecedented Center-of-Glass U-factor under 0.45 W/m²K with acoustic dampening exceeding STC 42.
C4/C5 Marine-Grade Fluorocarbon & Anodizing
Urban and coastal infrastructure requires surface finishes impervious to saline aerosols and industrial pollutants. We utilize PPG Duranar® PVDF fluorocarbon coatings (triple-coat, dual-bake) and 25-micron hard anodizing. This chemistry delivers salt-spray resistance exceeding 4,000 hours per ASTM B117 standards, preventing surface blistering, chalking, or discoloration for over 30 years.
Engineering Specification & International Standards Matrix
To assist project engineers and consulting architects with code validation, the matrix below highlights performance metrics achieved by DERCHI aluminium awning systems versus global building compliance criteria.
| Performance Characteristic | Test Methodology / Standard | Commercial Grade (DERCHI Benchmark) | Standard Market Level | Engineering Benefit |
|---|---|---|---|---|
| Structural Wind Load Resistance | AS 2047 / ASTM E330 | Serviceability: 3500 Pa Ultimate: 4500 Pa (N6 Rating) |
1200 - 1800 Pa | Certified structural survival during Super Typhoons and high-rise envelope wind pressures. |
| Water Infiltration Pressure | AS 2047 / EN 12208 / ASTM E331 | 700 Pa - 900 Pa (Static & Cyclic) | 150 - 300 Pa | Eliminates internal water pooling during severe wind-driven downpours. |
| Air Tightness Infiltration | ASTM E283 / EN 12207 | < 0.1 L/s·m² @ 75 Pa (Class 4) | 0.5 - 1.2 L/s·m² | Drastically reduces building infiltration loss and stabilizes HVAC interior temperature. |
| Thermal Transmittance (Overall Uw) | ISO 10077-2 / NFRC 100 | 0.8 to 1.4 W/m²K (Project specific) | 2.4 - 3.2 W/m²K | Direct compliance with European Passive House and Australian BCA Section J energy mandates. |
| Acoustic Sound Attenuation | ASTM E90 / ISO 140-3 | Rw / STC 38 dB to 44 dB | STC 26 - 30 dB | Isolates high-frequency urban traffic noise, airport corridors, and heavy rain harmonics. |
| Alloy Grade & Wall Thickness | GB 5237 / ASTM B221 | 6063-T6 / 6061-T6 (2.0mm to 2.5mm) | 1.2 - 1.4mm (6063-T5) | Superior corner-weld rigidity, screw holding retention, and wind deflection deflection safety. |
Why DERCHI Is China’s Premier Awning Windows Exporter
Operating from the industrial manufacturing core of Shishan Town, Nanhai District, Foshan, Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) represents the pinnacle of Chinese facade and aperture engineering.
180,000㎡ Intelligent Foshan Base
Our facility features automated CNC 5-axis profile machining centers from Germany, CNC hydraulic angle-crimping stations, and robotic double-sided sealant application lines. Over 600 skilled technicians oversee high-throughput fabrication with pinpoint ±0.5mm tolerances across large-format curtain wall awning units.
Rigorous International Accreditations
We hold over 100 patents and formal compliance certifications including CE (EN 14351-1), ISO 9001 quality management, Australian AS 2047, and UL fire-rated credentials. Our structural systems are tested regularly in NATA-accredited and independent third-party laboratories to guarantee flawless local site approvals.
Proven Export & Project Track Record
As highlighted during our exhibitions at the Philippines WORLDBEX and throughout landmark projects across the Middle East, Southeast Asia, Australia, and North America, our dedicated export division manages full-cycle international logistics, seaworthy fumigated steel-frame crating, and English CAD engineering coordination on GMT+8.
Frequently Asked Questions for Commercial Buyers
Direct technical and commercial answers addressing freight, structural loads, hardware customization, and lead times for global importers.
What structural benefits make aluminium awning windows superior to sliding or hopper configurations?
Can DERCHI supply complete AS2047 test reports and structural shop drawings for council approval?
How does the factory prevent corrosion during ocean freight and tropical coastal installation?
What is the standard production lead time, and what is your Minimum Order Quantity (MOQ)?
Can motorized awning windows be integrated with existing Smart Home and fire-smoke clearance systems?
Plan Your Architectural Fenestration With DERCHI Engineers
Submit your door and window schedule, architectural elevations, or tender specifications. Our technical engineering division will generate bespoke CAD shop drawings, structural wind load evaluations, and direct factory-tiered commercial proposals within 24 business hours.
