Engineered to satisfy stringent global criteria: thermal insulation, typhoon-grade structural wind load resistance, and bespoke architectural aesthetics for high-end residential and commercial developments.
Heavy-duty commercial double swing doors engineered with 6063-T6 multi-chamber extrusions and multi-point mortise security locks for coastal retail facades.
Australia standard AS2047 compliant gas-strut server windows designed for seamless indoor-outdoor hospitality integration and high cycle durability.
Minimalist pivot and double hinged villa front doors integrated with Low-E insulated glass panels and biometric smart entry hardware options.
TUV-certified exterior double glazed French doors featuring polyamide thermal barrier strips and laminated impact safety glazing for luxury resorts.
Heavy-duty top-hung bifold system with integral 304 marine-grade stainless steel security netting, engineered for tropical ventilation without pest intrusion.
Engineered with recessed water-drainage threshold tracks and dual EPDM weather seals to resist up to 4500Pa cyclonic wind load in coastal regions.
NFRC compliant double sash sliding assemblies boasting low U-factor values, precision stainless steel rollers, and airtight sound dampening.

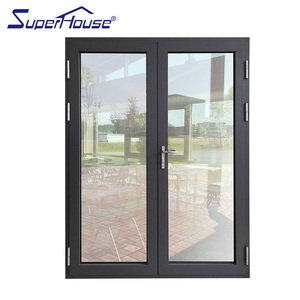

Architectural French double entry units tested for zero water leakage under severe driving rain, featuring concealed German hardware and flush transoms.
Evaluating primary structural, acoustic, and thermal indicators to help foreign buyers eliminate warranty disputes and structural failures.
| Evaluation Parameter | Commodity Residential Grade | Export Project Grade (DERCHI Baseline) | Verification Test Standards |
|---|---|---|---|
| Aluminium Alloy & Wall Thickness | 1.2mm – 1.4mm / Recycled scrap billets | 2.0mm – 3.0mm 6063-T6 Primary Ingot Extrusions | GB/T 5237 / ASTM B221 |
| Structural Wind Load (Typhoon) | 1200 Pa – 1800 Pa (Prone to deflection) | AS2047 N6 Rating (≥ 4500 Pa Design Pressure) | AS/NZS 4420.2 / ASTM E330 |
| Thermal Insulation (U-Factor) | U > 3.8 W/m²·K (Non-thermal break) | U ≤ 1.4 – 1.8 W/m²·K (PA66 GF25 Polyamide Bars) | NFRC 100/200 / EN ISO 10077 |
| Surface Coating Longevity | Standard powder coating (Fades in 3-5 yrs) | AkzoNobel / PPG Fluorocarbon (PVDF) ≥ 30-Year Salt Spray | AAMA 2605 / Qualicoat Class 3 |
| Acoustic Attenuation (STC) | Rw 22 – 26 dB (Single air cavity) | Rw 38 – 44 dB (Argon-filled laminated double glaze) | ISO 10140-2 / ASTM E90 |
| Locking & Security Defense | Single-point mechanical latch | Multi-point stainless mortise + RC2/RC3 Burglar Resistance | EN 1627 / UL Fire-Rated Protocol |
How stringent ESG initiatives, smart automation, and extreme climatic events are reshaping global facade specifications.
Global procurement teams across North America, Australia, and the EU now mandate Environmental Product Declarations (EPD). Modern Chinese tier-1 extrusion plants are aggressively switching to hydro-powered electrolytic aluminium and recycled closed-loop scrap, reducing profile carbon intensity to below 4.0 kg CO2e per kg of aluminium while matching structural rigidity.
Modern luxury villas and commercial lobbies demand clean sightlines. The trend shifts from bulky overhead closers to concealed floor-spring pivots and invisible electromotive operators. Modern double doors increasingly incorporate integrated BACnet / KNX building management systems, facial recognition access, and motorized perimeter gaskets that automatically seal against wind-driven downpours.
Architects favor monumental openings up to 4.5 meters high with ultra-narrow vertical stiles (under 25mm). To prevent sagging and structural flex in double swing configurations, manufacturers embed carbon-fiber composite stiffeners and internal heavy-duty stainless truss bars, ensuring effortless one-finger glide even under thermal deflection stresses.
Operating from our modern 180,000㎡ industrial park in Foshan, China, DERCHI stands among the premier Top 10 fenestration and entrance door manufacturers nationwide. With over 25 years of engineering mastery, we operate complete in-house extrusion finishing, precision CNC machining, thermal-barrier crimping, and automated insulating glass lines.
Our project footprint spans luxury beachfront villas in the Philippines, high-traffic commercial resorts in the Middle East, and residential compounds across North America and Australia. By executing full-cycle manufacturing under strict ISO 9001 quality audits, we offer overseas developers verified cost efficiencies without compromising structural tolerances.
Certified against international codes including Australian AS2047 N6, CE Mark, ISO 9001, and UL fire ratings to secure local council code approvals without delay.
Streamline your procurement schedule: combine exterior aluminium double doors, interior flush doors, pivot units, and motorized garage portals within a single container order.
Equipped with genuine Siegenia, Hoppe, Sobinco, or customized 316 stainless multi-point locks ensuring 200,000+ open-close duty cycles without latch sag.
Bilingual architectural support teams operating across GMT+8, providing rapid 24-hour turnaround on revisions, glass static calculations, and site installation guides.
Key technical insights on warranties, customs clearance, structural performance, and glass configurations.
Send our structural engineering department your architectural drawings, door schedules, or tender specifications for a free preliminary evaluation, CAD shop drawings, and direct export pricing within 24 hours.
