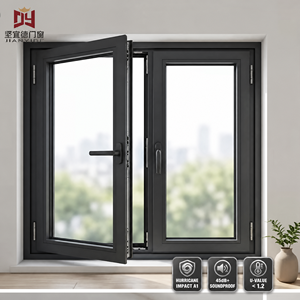

86 Series / Villa
High-Performance System Windows & Sliding Portals
From typhoon-rated multitrack sliding suites to multi-cavity thermal break casement frames, explore our core export portfolio fabricated with virgin 6063-T5 aluminum extrusions, EPDM continuous co-extrusion seals, and world-standard acoustic glass units.
JE140 Heavy Duty

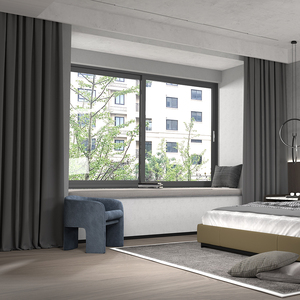

AS2047 Soundproof

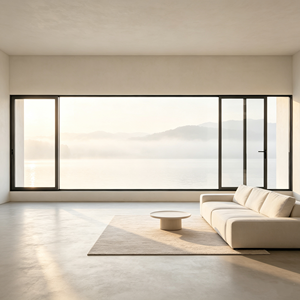

US Spec Side-Pressure
Hurricane Impact
Slimline Sightlines
3-Track Hybrid
Passive Standard
High U-Value Casement
Thermal Break Aluminum Frame Double Glazed Window Casement Windows
System Fenestration Engineering Baseline
The Anatomy of Architectural Aluminum System Windows: Material Science & Structural Feasibility
Global procurement directors, project architects, and general contractors frequently encounter disparity when evaluating window estimates from Chinese suppliers. An off-the-shelf standard window differs exponentially from an engineered system window. A true system window constitutes a holistic envelope solution where profile extrusion alloys, polyamide thermal breaks, vulcanized multi-chamber EPDM gaskets, structural corner braces, and multi-point locking gear are mathematically and thermally matched to deliver measurable U-values, acoustic STC ratings, and cyclonic wind-load resistances.
At our Foshan manufacturing headquarters, Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) leverages virgin 6063-T5 and structural 6063-T6 aluminum alloy billets exclusively. By repudiating secondary remelt scrap, we eliminate metallurgical micro-voids, guaranteeing strict wall thickness tolerances (≥ 2.0mm for high-span casement systems and up to 3.0mm for high-rise sliding frames). This structural mass underpins compliance with the rigorous Australian AS 2047 N6 cyclonic testing requirements, resisting positive and negative design pressures exceeding 4,500 Pascals.
Thermal mitigation is achieved through genuine Technoform PA66-GF25 (polyamide reinforced with 25% chopped glass fiber) multi-chamber thermal breaks. Unlike cheap PVC substitutes that suffer catastrophic brittleness under thermal expansion, PA66-GF25 matches the linear coefficient of expansion of aluminum alloy, completely eliminating thermal-stress delamination, seal shear failure, and condensation sweating in extreme climatic environments.
Foshan Mega-Scale Manufacturing Campus: 180,000㎡ intelligent fenestration production lines incorporating computerized 5-axis CNC profile machining and automated glue-injection corner joint assembly.
180,000㎡
Dedicated Production Base
25+
Years Engineering Expertise
100+
Patents & Lab Certifications
600+
Skilled Craftsmen & Engineers
Future Aluminum Windows Procurement Trends: The Next Decade
As global building energy codes tighten and institutional developers shift toward ESG asset valuation, fenestration sourcing strategies are evolving from raw cost calculations to lifecycle embodied performance and carbon auditability.
Embodied Carbon & EPD Audits
International tenders across North America, Europe, and Australasia now demand third-party verified Environmental Product Declarations (EPDs). Sourcing is shifting decisively toward primary low-carbon smelters that utilize renewable hydroelectric energy rather than coal-fired smelting, reducing carbon intensity per metric ton of virgin billet by up to 65%.
ESG & DecarbonizationTriple & Vacuum Insulating Glazing (VIG)
With Passive House performance parameters governing municipal permitting, conventional double glazing is being superseded by warm-edge triple-laminated and tempered vacuum insulating glass (VIG). VIG delivers an unprecedented center-of-glass U-factor of 0.45 W/m²·K within an ultra-thin 8.3mm profile envelope, allowing massive architectural expanses without perimeter condensation.
Passive House StandardPre-Engineered Sub-Frame Unitization
Surging site labor costs in gateway cities have spurred the adoption of modular sub-frame fenestration. Windows are pre-assembled with factory-applied membrane flashings, perimeter brackets, and integrated thermal reveal trims. On-site installation times drop by over 50%, eliminating tradesmanship error in water-proofing and acoustic caulking.
Prefab Assembly EfficiencySevere Storm & Cyclonic Resilience
Climate instability has expanded severe windborne debris zones beyond classic hurricane belts. Procurement specifications are rapidly mandating structural missile impact compliance (ASTM E1886/E1996 Level D/E and AS 2047 N6). Systems engineered with structural silicone dry-glazing and SentryGlas interlayers retain pressure seal even after outer pane rupture.
Extreme ResiliencyIntegrated Smart Building Automation
Concealed mechatronic drive units embedded within the profile frame cavity interface seamlessly with central BACnet and Zigbee building management networks. Micro-sensors monitor barometric changes, ambient indoor CO2 levels, and windward rain vectors to trigger automated microscopic venting cycles without compromising perimeter structural security.
Smart Facade TechDigital Twin Shop Drawings & BIM Workflows
The archaic practice of static PDF shop-drawing approvals is replaced by full Revit/IFC BIM object libraries. Our Foshan engineering team models exact mullion centerlines, dynamic deflection clearances, structural anchor embedment forces, and glass thermal stress patterns before single-billet extrusion commences, guaranteeing zero clash on site.
Digital BIM PrecisionTechnical System Performance Matrix: Architectural Aluminum Fenestration
Comprehensive engineering metrics across primary opening configurations based on ASTM E283, E331, E330, and AS 2047 physical chamber testing data.
| System Typology | Structural Wind Pressure | Water Penetration Resistance | Air Infiltration Rating | Thermal Transmittance (Uw) | Acoustic Attenuation |
|---|---|---|---|---|---|
| Heavy Duty 86 Casement | ≥ 4500 Pa (Serviceability / AS2047 N6) | 700 Pa (Zero Water Ingress) | < 0.05 L/s·m² @ 75 Pa | 1.30 – 1.60 W/m²·K | Rw 42 dB (Acoustic Double IGU) |
| JE140 Lift & Slide Portal | ≥ 3800 Pa (High-Rise Approved) | 600 Pa (Sub-Sill Internal Dam) | < 0.12 L/s·m² @ 75 Pa | 1.45 – 1.85 W/m²·K | Rw 38 dB (Laminated Tempered) |
| American Side-Pressure Slider | ≥ 3500 Pa (Positive Mechanical Cam) | 450 Pa (Weep Check-Valve) | < 0.15 L/s·m² @ 75 Pa | 1.50 – 1.90 W/m²·K | Rw 36 dB (Double Tempered Low-E) |
| Cyclone Storm-Impact Slider | ≥ 5000 Pa (ASTM E1886 Missile D) | 750 Pa (High Structural Upstand) | < 0.08 L/s·m² @ 75 Pa | 1.60 – 2.10 W/m²·K | Rw 40 dB (SGP Impact Lami-Insulated) |
| European Tilt & Turn Suite | ≥ 4800 Pa (Perimeter Compression) | 800 Pa (Continuous Gasket Compression) | < 0.02 L/s·m² @ 75 Pa | 1.10 – 1.40 W/m²·K | Rw 44 dB (Warm-Edge Triple Glazed) |
Guangdong Dejiyoupin (DERCHI) Heritage
Send an Inquiry
The Foshan Fenestration Powerhouse: 25+ Years of Export Excellence
Situated in the heart of China’s premier architectural aluminum processing cluster—Foshan, Guangdong—Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) stands as an elite top-tier manufacturer recognized across global commercial, hospitality, and ultra-luxury residential developments. Our 180,000㎡ industrial complex bridges deep metallurgical knowledge with state-of-the-art European automation.
Unlike trading intermediaries, DERCHI retains comprehensive control across the complete supply value stream: computerized billet cutting, robotic multi-point corner injection, automated silicone structural glazing, and pre-assembly testing in atmospheric test chambers before export palletization. Backed by full compliance with CE, ISO 9001, Australian AS 2047, and UL fire-rated standards, our team has successfully equipped iconic projects across the Philippines, Singapore, Malaysia, Australia, North America, and the Middle East.
AS 2047 & CE Certified
GMT+8 Dedicated Support
WORLDBEX Exhibitor Proven
Steel A-Frame Sea Packaging
Frequently Asked Questions: Global Sourcing & Specifications
Clear, technically precise answers addressing real-world international procurement dilemmas, logistics safeguards, laboratory testing benchmarks, and bespoke engineering schedules.
How does DERCHI prevent galvanic corrosion and surface degradation in coastal tropical climates?
For coastal and marine environments (such as Southeast Asia, coastal Australia, and the Gulf), we specify AkzoNobel or PPG architectural fluorocarbon PVDF (polyvinylidene fluoride) liquid coatings or Qualicoat Class 2 / Class 3 super-durable thermoset powders. All fasteners, assembly screws, and internal brackets are strictly AISI 316 marine-grade stainless steel. To prevent galvanic reactions between dissimilar metals, non-conductive EPDM or polyamide isolation shims are installed at all contact junctions between aluminum frames and structural building steel.
What is the fundamental difference between standard aluminum windows and true system windows?
Standard aluminum windows are typically fabrications made from generic open profiles cut and screwed together without isobaric pressure equalisation. Conversely, a true system window is an engineered assembly validated by physical laboratory type-tests. Profile cavities, water-diversion drainage dams, glass bite depths, and continuous dual-injected corner brackets are mathematically optimized. System windows guarantee verified air impermeability, acoustic dampening, and structural deflection under precise cyclic wind loads.
How does DERCHI package glass and large-span fenestration for transoceanic container shipping?
All overseas shipments utilize heavy-duty fumigated steel A-frames or fully enclosed non-coniferous composite plywood crates with internal high-density EVA shock cushions. Finished profiles receive peelable 80-micron protective film and corner guards. Crate interiors are sealed with industrial silica-gel desiccant packs to prevent moisture condensation and glass etching during tropical sea voyages. Crates are loaded with heavy-duty nylon lashing belts and timber chocks inside Open Top or standard High Cube containers.
Can DERCHI produce custom oversized configurations and coordinate directly with local building codes?
Yes. Every architectural system window order is 100% custom-tailored to site dimensions and wind-load schedules. Our in-house engineering team provides free comprehensive CAD shop drawings, glass wind-load deflection calculations ($L/175$ to $L/250$), and thermal simulation models. We routinely calibrate frame designs to satisfy North American ASTM/AAMA standards, Australian AS 2047 / AS 1288 codes, British Standards (BS EN), and Middle Eastern civil defense ratings.
What glass configurations are integrated into DERCHI architectural window assemblies?
We partner with premier certified glass processing suppliers (such as CSG, Xinyi, and Saint-Gobain). Options range from double-glazed units (e.g., 6mm Low-E + 12A/16A Argon + 6mm Clear) to triple warm-edge glass, acoustic acoustic-PVB laminated glass, and extreme storm-resistant SentryGlas (SGP) laminated configurations. All insulated glass units feature molecular-sieve desiccants, dual-barrier polyisobutylene (PIB) primary seals, and structural silicone secondary seals compliant with IGCC and CE EN 1279.
What is the standard production lead time and minimum order quantity (MOQ) for overseas contracts?
For standard stock profile colors (such as architectural matte black, dark bronze, and anodized silver), production lead time is typically 25 to 35 business days following final shop-drawing approval. For bespoke fluorocarbon RAL custom color matches or specialized cyclonic glass buildups, lead time is approximately 35 to 45 business days. Our flexible factory infrastructure accommodates bespoke villa orders (MOQ starting at 30–50㎡) up to multi-tower commercial developments exceeding 20,000㎡.
Initiate Your Fenestration Project with Engineering Precision
Send our senior engineering team your architectural opening schedules, BIM models, or project elevation drawings. We deliver comprehensive CAD shop drawings, thermal U-factor simulations, structural wind calculations, and factory-direct DDP/FOB quotations within 24 business hours.
