Featured Industrial & Crittall-Style Fenestration Systems
Engineered with high-tensile 6063-T6 aluminum alloys, precision sightlines, and advanced multi-point security hardware. Explore our core export configurations below.
LANGE Aluminium Bifold Doors Slim Frame Full View Glass Doors
Ultra-narrow architectural stiles, bottom-rolling heavy hardware, windproof and energy-efficient thermal optimization for luxury villas.
Modern High Aluminum Double Glass Accordion Bifold Door
Large-span Crittall-inspired divided light multi-leaf systems engineered for commercial facades and grand patio entrances.
Patio Double Glass Exterior Accordion Waterproof Folding Door
Multi-chamber extruded aluminum design with integrated EPDM continuous weatherstripping to stop tropical storm driven water.
Heavy Duty Commercial Aluminum Double Glazed Shopfront Door
Engineered for extreme cycle durability, windproof ratings, and thermal perimeter barriers ideal for boutique retail fronts.
Aluminum Partition Door Frosted Soundproof Privacy Screen
Minimalist heritage black framing equipped with obscurity laminated glass to maximize spatial flow while blocking acoustics.

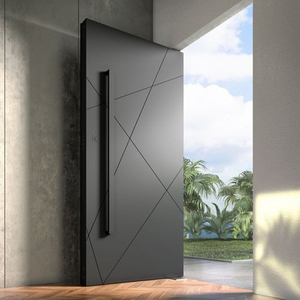

Modern Villa Exterior Metal Front Entry High Security Pivot Door
Concealed hydraulic floor pivot hinge bearing up to 500kg, combining industrial aesthetic with high-strength structural profiles.
NFRC Hurricane Impact Low-E Thermal Break Casement Windows
Heavy structural glazing designed for high cyclone zones, certified to withstand extreme atmospheric pressures and airborne impact.
Fuson American NFRC Double Glazed Casement Window System
Ultra-narrow Crittall sightlines integrated with polyamide thermal break barriers for superior U-factor insulation ratings.
Why Top Global Specifiers Partner with DERCHI
Operating out of Foshan, Guangdong—the epicentre of global fenestration engineering—Guangdong Dejiyoupin Doors and Windows Co., Ltd. delivers institutional-grade quality backed by verified test data.
180,000㎡ Intelligent Facility
Equipped with 600+ skilled personnel, fully automated CNC multi-axis extrusion cutting lines, and robotized corner-crimping cells ensuring tolerance limits within ±0.5mm across high-volume production schedules.
AS 2047 N6 & NFRC Certified
Stringently tested under cyclone-tier cyclic pressures. Our systems meet or exceed international standards including Australian AS 2047 N6 rating, CE conformity, ISO 9001, and North American NFRC thermal metrics.
Bespoke Architectural Engineering
In-house facade engineers deliver comprehensive shop drawings, BIM models, static wind-load calculations, and custom extrusion dies to match heritage Crittall restorations or modern minimalist requirements.
Factory-Direct Cost Optimization
Eliminate middleman distributor markups. Sourcing directly from our Foshan industrial plant reduces procurement expenditure by 30% to 45% while securing genuine raw-material tracing and metallurgical test certificates.
Pearl River Delta Port Proximity
Positioned adjacent to Guangzhou and Shenzhen deep-water container ports. We implement multi-layered custom plywood crating and moisture-barrier vacuum wrapping to guarantee zero freight attrition across overseas voyages.
Dedicated GMT+8 B2B Support
Bilingual technical consultants provide rapid quote turnarounds within 24 hours, live video factory inspections, continuous milestone tracking, and detailed bilingual on-site installation manuals.
The Crittall Paradigm Shift: Steel vs. Thermally Broken Aluminium
Traditional hot-rolled steel Crittall windows defined the mid-century industrial movement. However, legacy steel faces inherent engineering constraints: corrosive vulnerability in coastal air, prohibitive weight loads exceeding standard residential lintels, and severe thermal bridging that breaches modern green building codes (ASHRAE 90.1, Title 24, and BCA Section J).
DERCHI solves this architectural friction by deploying structural 6063-T6 architectural grade aluminium profiles married to structural polyamide 66 (PA66 GF25) thermal barriers. This delivers the exact razor-thin 28mm to 35mm sightlines demanded by heritage aesthetics, while achieving a thermal transfer coefficient as low as U ≤ 1.4 W/m²·K.
| Performance Metric | Traditional Hot-Rolled Steel | DERCHI Aluminium Crittall |
|---|---|---|
| Corrosion Resistance | Requires frequent sandblasting | Fluorocarbon (PVDF) / Qualicoat (Class 2) |
| Thermal Insulation | High thermal bridge (Poor) | PA66 GF25 Isobar Barrier (U ≤ 1.4 W/m²·K) |
| Structural Dead Load | Approx. 7.85 g/cm³ (Extremely heavy) | Approx. 2.70 g/cm³ (65% Weight Reduction) |
| Cyclonic Resistance | Difficult to achieve airtight seals | AS 2047 N6 (Cyclonic Pressure Certified) |
| Capital Expenditure | High fabrication & freight cost | Optimized factory-direct ROI |
Future Procurement & Technological Trends (2025–2030)
How global carbon neutrality directives, supply chain nearshoring, and facade robotics are reshaping commercial procurement for developers and specifiers.
Embodied Carbon & Low-Carbon Billet
Institutional tenders in Europe, Australia, and North America increasingly demand Environmental Product Declarations (EPDs). Procurement workflows are shifting toward secondary recycled billets or hydro-powered electrolytic smelting to minimize upfront lifecycle carbon emissions.
Seamless Smart Access & Hidden Actuation
Industrial aesthetics now integrate invisibly with smart building management systems (BMS). Procurement specifications are pivoting toward concealed perimeter multi-point micro-actuators, magnetic contact sensors, and biometric entry controls concealed inside the slim 38mm framing profile.
Vacuum Glazing & Passive House Thresholds
The next generation of aluminium Crittall windows pairs slim sightlines with Vacuum Insulated Glass (VIG). VIG delivers the center-of-glass thermal performance of triple-pane units (U-value ≤ 0.60 W/m²·K) in an overall glazing profile thickness of merely 8.3mm, eliminating bulky sashes.
Frequently Asked Technical Questions
Essential engineering, manufacturing, and export logistics answers for quantity surveyors, project architects, and direct buyers.
We utilize structural, dual-beveled astragal bars bonded externally and internally with structural-grade 3M VHB glazing tape, combined with internal duplex spacer grids inside the sealed insulated glass unit (IGU). This replicates the historic true-divided-light putty sightline while preserving the acoustic and thermal integrity of an unbroken double or triple glazed unit.
Yes. Every export extrusion undergoes advanced surface pretreatment followed by PPG fluorocarbon (PVDF) 3-coat spraying or AkzoNobel architectural powder coating meeting Qualicoat Class 2 standards. Our windows are engineered and proven to meet Australian AS 2047 N6 ratings, resisting typhoon wind loads up to 4500 Pa with water resistance rated above 450 Pa.
Upon receipt of your preliminary architectural schedule, our engineering department delivers complete CAD shop drawings, connection details, and structural anchoring schematics within 48 to 72 hours. Standard production cycles take 25 to 35 business days following final drawing sign-off and hardware selection.
All products follow our rigorous 4-tier export packing protocol: 1) Protective static film over metal surfaces; 2) EPE pearl cotton corners and edge cushions; 3) Heavy duty shrink wrapping with desiccant packs; 4) Non-fumigation treated solid plywood crates secured with galvanized steel banding and rubber shock pads.
