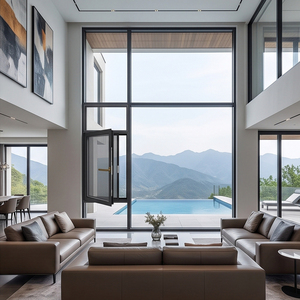

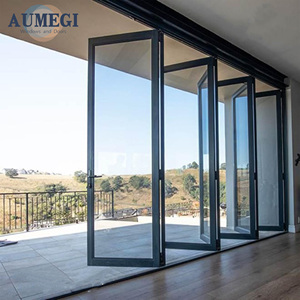

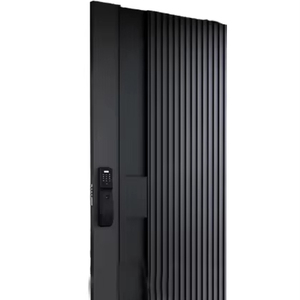

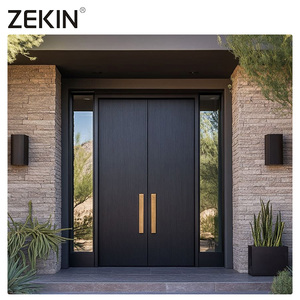

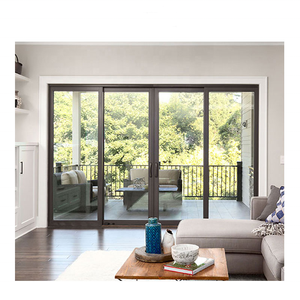

Explore our premium architectural fenestration range, including insulated side-hung casements, heavy-duty sliding assemblies, armored exterior doors, and thermal-break folding openings.
Structural Design & Thermodynamics of High-Performance Side Windows
In modern architectural fenestration, the specification of aluminum side windows—encompassing side-hung casements, inward tilt-and-turn configurations, and project-out awning side lites—demands rigorous engineering calculations for wind resistance, acoustic dampening, and overall building envelope thermal integrity.
As the primary fenestration opening mechanism for vertical envelope ventilation, aluminium side windows bear intense dynamic mechanical loads. Unlike fixed curtain walls, operable side windows must maintain an airtight, watertight seal along their perimeter while accommodating cyclic thermal expansion, hinge shear stresses, and high negative wind pressures during extreme weather events. Leading engineering practices demand high-tensile 6063-T5 or 6063-T6 virgin architectural aluminum alloy profiles, reinforced by multi-cavity polyamides and multi-point perimeter compression locking hardware.
Alloy Extrusion & Tensile Yield
Fabricated using precision hot-extrusion dies from 6063-T5 architectural billet. Minimum web wall thicknesses are calibrated at 1.4 mm to 2.0 mm according to international standards (EN 12020-2 & GB/T 5237), yielding a minimum tensile strength of 215 MPa to prevent sash deflection during severe typhoon conditions.
PA66 GF25 Polyamide Thermal Barrier
Eliminating thermal bridging through precision-rolled 24 mm to 34 mm PA66 polyamide insulating strips reinforced with 25% glass fiber. These composite assemblies yield system U-values down to Uw 1.1–1.4 W/m²K when paired with argon-filled low-E insulated glass units (IGUs).
Triple EPDM Vulcanized Gaskets
Continuous co-extruded EPDM synthetic rubber corner-welded perimeter seals. Engineered with specialized isobaric drainage cavities, these gaskets equalize pressure differentials across the sash chamber to achieve an impervious water barrier rating up to 900 Pa.
Comprehensive Technical Specification Comparison Matrix
Comparative performance benchmarks across residential, commercial thermal-break, and hurricane-rated side window configurations.
| Performance Criterion | Standard Non-Thermal Casement | Architectural Thermal Break (Mid-Rise) | DERCHI Heavy-Duty Cyclone Rated (AS 2047 N6) | Testing Protocol |
|---|---|---|---|---|
| Profile Depth / System Width | 45 mm – 50 mm | 65 mm – 75 mm | 80 mm – 108 mm Multi-Cavity | EN 14351-1 / GB/T 8478 |
| Structural Wind Load Resistance | 1500 Pa – 2000 Pa | 3000 Pa – 4000 Pa | 6000 Pa (AS 2047 N6 Cyclone) | ASTM E330 / AS 4055 |
| Air Infiltration Rating | 0.50 L/s·m² (Moderate) | 0.15 L/s·m² (Low Leakage) | < 0.05 L/s·m² (Hermetic Seal) | ASTM E283 / EN 1026 |
| Water Penetration Resistance | 250 Pa – 300 Pa | 450 Pa – 600 Pa | 900 Pa Static & Dynamic | ASTM E331 / AS 4420.5 |
| Acoustic Attenuation (STC / Rw) | 28 dB – 30 dB | 35 dB – 38 dB | 42 dB – 48 dB (Acoustic PVB Glazed) | ISO 717-1 / ASTM E413 |
| Thermal Transmittance (System Uw) | 3.8 – 4.5 W/m²K | 1.6 – 2.0 W/m²K | 0.9 – 1.3 W/m²K (Passive Capable) | NFRC 100 / ISO 10077-2 |
| Compliance Certification | National Mill Standard | CE Mark / ISO 9001 | AS 2047 / CE / UL Verified | Independent NATA & ILAC Labs |
Future Procurement Trends in Aluminium Fenestration (2025–2030)
Commercial developers, facade engineers, and general contractors are adapting their procurement workflows to meet stricter building codes, decarbonization targets, and prefabricated building strategies.
Passive House Thermal Mandates
Global architectural codes increasingly dictate whole-window U-factors under 1.2 W/m²K. In response, procurement orders are moving away from traditional single-break systems to triple-chamber, aerogel-infused, and expanded multi-cell polyamide profiles. Fenestration buyers now demand warm-edge spacers (TPS/Swisspacer) combined with soft-coat Low-E argon assemblies to prevent condensation and reduce HVAC sizing.
Low-Carbon Recycled Aluminum Billet
Sustainability and Environmental Product Declarations (EPD) are now decisive criteria in international tenders. Supply contracts in North America, Europe, and Australasia prioritize manufacturers who utilize hydro-powered smelters and post-consumer recycled aluminum (producing fewer than 4.0 kg CO2 per kg of billet). Verifiable mill test certificates with complete cradle-to-gate lifecycle data are becoming standard project submittal prerequisites.
Pre-Glazed Modular Window Wall Assemblies
Due to surging on-site installation labor costs in gateway markets, developers are shifting from knocked-down (KD) field assemblies to pre-glazed, factory-torqued side window units. Prefabricated fenestration arrives on site with subframes, factory-calibrated perimeter flashings, and integrated perimeter anchor clips, drastically shortening site installation schedules while ensuring factory-controlled seal quality.
Engineering Breakthroughs Shaping Modern Side Window Systems
How automation, precision robotics, and smart fenestration controls are elevating modern aluminum side opening assemblies.
Concealed Hardware & Flush-Plane Aesthetics
Architects increasingly demand minimal sightlines with clean, unbroken interior and exterior reveals. Advanced European-standard concealed hinge systems handle sash weights up to 180 kg without visible mechanical barrels, enabling 180-degree unobstructed clearance, streamlined profiles, and perimeter multi-point locking that secures flush within the outer frame.
Intelligent Mechatronic Actuation
Smart building automation systems (BAS) now integrate concealed DC chain actuators within the window profile cavity. These actuators operate via BACnet or Modbus protocols to automatically adjust side-hung and awning sashes based on interior CO2 levels, indoor temperature, and wind/rain sensors, facilitating natural night-purge ventilation while preserving physical security.
High-Durability Fluorocarbon & PVDF Coatings
For coastal developments subjected to intense UV irradiation and marine salinity, advanced surface treatments have superseded basic polyester powders. Qualicoat Class 3 powder coatings and three-coat PVDF (fluoropolymer) finishes formulated with 70% Kynar 500 resins offer 30-year resistance against chalking, fading, filiform corrosion, and salt-fog breakdown.
Guangdong Dejiyoupin Doors & Windows (DERCHI)
Headquartered in the premier manufacturing hub of Foshan, Guangdong, DERCHI is ranked among China's Top 10 architectural door and window enterprises, delivering precision-engineered facade systems to residential, commercial, and institutional projects worldwide.
Automated CNC Fabrication
Equipped with computerized multi-axis CNC sawing centers, robotic corner-crimping machines, and precision profile-machining centers. Structural miter cuts and hinge mortises are milled to tolerances within ±0.2 mm, ensuring airtight mechanical corner joint bonding and consistent weatherstripping performance across high-volume production runs.
Rigorous Laboratory Testing
Every window series is rigorously tested within our in-house testing chambers and verified by independent accredited facilities. Our systems hold Australian AS 2047 (rated up to N6 cyclone design pressure), European CE EN 14351-1, ISO 9001 quality management, and UL safety certifications, guaranteeing smooth project sign-offs and municipal building approvals.
Full Engineering & BIM Support
Our dedicated structural engineering team provides complimentary CAD shop drawings, wind load calculations according to local building codes, thermal simulation analysis (using LBNL THERM/WINDOW models), and 3D BIM object integration. We support international developers from architectural concept review through to export container packing and on-site installation guidance.
Frequently Asked Questions: Global Window Procurement & Engineering
Comprehensive engineering, logistics, and compliance answers for facade consultants, purchasing directors, and project architects.
Q1 How does DERCHI ensure structural integrity against severe cyclonic wind loads?
Our aluminum side windows are engineered to satisfy the strict requirements of Australian standard AS 2047, successfully achieving the maximum N6 rating (over 6000 Pa ultimate limit state wind pressure). We implement multi-cavity 6063-T6 alloy profiles with structural wall thicknesses exceeding 2.0 mm, reinforced with internal structural steel or composite stiffeners along the jamb and mullion intersections. Finite element analysis (FEA) validates maximum deflection limits (L/250 or L/175) to prevent glass breakage or frame failure under extreme cyclonic typhoons.
Q2 What thermal barrier technologies are used to prevent condensation in cold climates?
We incorporate continuous 24 mm to 34 mm PA66 GF25 polyamide insulating strips mechanically rolled into knurled extrusion cavities. This creates a complete thermal break separating interior and exterior aluminum frames. Combined with warm-edge composite glass spacers, triple glazing, and low-emissivity soft coatings, our windows achieve overall heat transfer coefficients as low as Uw 1.1 W/m²K, eliminating condensation risks even when indoor relative humidity is high during severe sub-zero winter cycles.
Q3 What surface finish certifications are provided for marine and coastal environments?
For seaside and high-salinity zones, we apply Qualicoat Seaside-grade polyester powder coatings or three-coat PVDF (fluorocarbon) finishes complying with AAMA 2605 specifications. Furthermore, our architectural anodizing process adheres strictly to Qualanod Class 20/Class 25 standards (film thickness 20–25 microns), successfully withstanding over 3,000 hours of continuous neutral salt spray (NSS) testing without blistering, pitting, or color delamination.
Q4 How are CAD shop drawings and custom architectural sizes coordinated?
Prior to factory extrusion cut-offs, our engineering drafting department develops millimeter-accurate shop drawings covering floor plan schedules, elevation profiles, anchor bracket locations, perimeter caulking details, and interface flashings. Clients receive full architectural CAD submittals and REVIT BIM models for technical sign-off, ensuring custom oversized side sashes and specialized mullion splices integrate seamlessly with on-site structural openings.
Q5 What types of locking and operating hardware are installed on side casements?
We partner with premier hardware manufacturers including Siegenia, Roto, Hoppe, and CMECH, alongside our proprietary high-load concealed hinges. Our side windows feature multi-point perimeter gear-drive locking systems operated by ergonomic die-cast handles. Hardened stainless steel mushroom cams engage with perimeter frame keeps at 4 to 8 points around the sash perimeter, preventing pry attacks and ensuring even compression along the EPDM gaskets.
Q6 How do you prevent water ingress across dynamic operable sashes?
Water penetration is prevented through an engineered isobaric equalization principle. Outer rain screens block bulk rainwater, while calibrated drainage slots release any penetrated moisture from an internal drainage channel equipped with non-return flap valves. The inner chamber maintains an airtight pressure balance via continuous vulcanized EPDM corner seals, preventing exterior-to-interior pressure gradients from pulling water inward during driving rains up to 900 Pa.
Q7 What glass build-ups are recommended for optimal acoustic noise reduction?
For properties near transport corridors or urban centers, we configure asymmetrical acoustic laminated glass units. A common specification comprises a 6 mm outer pane + 0.76 mm / 1.52 mm Saflex acoustic PVB interlayer + 4 mm inner glass, separated by an argon-filled 16 mm air space from a 6 mm Low-E pane. This breaks sound wave frequencies across varying mass layers, delivering sound transmission loss ratings of STC 42–48 dB.
Q8 What export packing methods are employed to prevent maritime transport damage?
All finished windows undergo thorough pre-shipment quality inspection before receiving multi-layer protective packaging: scratch-resistant polyethylene surface film, high-density closed-cell foam corner edge protectors, and corrugated wrap. Fully assembled units or knocked-down modular crates are packed inside IPPC-certified fumigated solid plywood timber cases or welded steel transport racks, designed for direct forklift unloading and ocean container transit.
Q9 What are the standard lead times for custom commercial fenestration orders?
Standard lead times for custom extruded and glazed orders range between 25 to 35 calendar days following formal shop drawing approval and deposit receipt. Expedited tracks are available for standard RAL surface finishes and stock profile systems. High-volume developments benefit from phased container shipping directly out of Guangzhou or Shenzhen deepwater ports, with sailing schedules aligned to your construction Gantt chart.
Q10 What warranty coverages and on-site installation support do you provide?
DERCHI offers a comprehensive 10-year manufacturer warranty covering aluminum profile integrity, surface finish resistance against excessive fading or peeling, and insulated glass hermetic seal performance. Operating mechanical hardware is backed by a 5-year warranty. We support international installation teams by providing detailed exploded assembly manuals, step-by-step video tutorials, and remote engineer video conferences to ensure proper leveling and perimeter waterproofing.
