High-Performance Fenestration & Architectural Enclosure Showcase
From structural skylights and hurricane-rated casements to high-security panoramic entries, our factory engineers thermal-break fenestration built to withstand extreme wind-load, tropical storms, and intense solar radiation.
Hurricane Rated
Hurricane Impact Windows Thermal Break Aluminum Casement Window Double Glazed Aluminum Tilt And Turn Windows
Acoustic & Fixed
Customized Aluminum Alloy High Security Soundproof Fixed Window Floor To Ceiling Panoramic Window
NFRC Certified
AMJ NFRC Outward Opening Aluminum Awning Hung Casement Window Double Glazing Thermal Break Hinged Frame With Insect Screens
Villa Fenestration
Top Brand Modern Single Swing Door Narrow Double Glazed Waterproof Aluminum Soundproof Bathroom Bedroom Villa Casement Door
High Security
Modern Style Main Entrance Door Aluminum Double Glazed Glass Front Entry Doors Against Theft Bulletproof Security Door
Smart Access
EOKO Smart Original Factory Main Entrance Exterior Anti-Theft Double Aluminum Stainless Steel Solid Wood Glass Door
Heavy-Duty Sliding
OUNA Aluminum Alloy Doors and Windows Modern Exterior Aluminum Door Patio Commercial Outdoor Heavy Duty Sliding Doors
Weatherproof Architectural

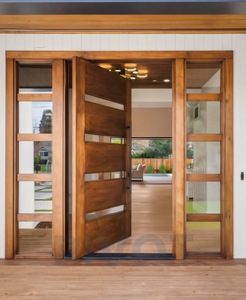

Domex Weatherproof European Aluminum Alloy Steel Wood Grain Front Entry Door Horizontal Glass Inserts Anti-Theft Swing Exterior
Engineering Principles of Modern Aluminium Skylight Systems
Aluminium skylight windows and architectural rooflights represent the most structurally demanding component of modern building envelopes. Exposed to relentless direct UV irradiance, intense wind uplift loads, and severe thermal cycles, wholesale architectural skylights demand uncompromising precision in extrusion metallurgy, isothermal bridge optimization, and redundant hydrostatic drainage engineering.
The Structural Physics of Overhead Glazing Systems
Unlike vertical facade fenestration, horizontal and inclined roof windows bear continuous gravity loads from glass self-weight, variable live loads (snow, maintenance foot traffic), and aerodynamic wind suction under high-velocity atmospheric conditions. Leading China wholesale factories utilize 6063-T6 or 6061-T6 structural aluminium profiles with wall thicknesses ranging from 2.0mm to 4.5mm depending on unbraced span length.
Thermal mitigation is achieved through reinforced polyamide PA66 GF25 thermal break strips, which decouple interior and exterior aluminium chambers. This thermal barrier eliminates condensation drip lines along overhead rafters, preserving interior plasterboard and architectural finishes in environments with high interior relative humidity (such as luxury indoor pools, commercial atriums, and residential penthouses).
| Performance Characteristic | Test Standard / Benchmark | China Wholesale OEM Target Value | Procurement Impact |
|---|---|---|---|
| Structural Wind Load (Serviceability & Ultimate) | ASTM E330 / AS 2047 / EN 12211 | N6 Rating / Wind Uplift ≥ 4500 Pa | Essential for coastal hurricane regions, high-rise penthouses, and tropical cyclonic zones. |
| Air Infiltration & Permeability | ASTM E283 / EN 12207 Class 4 | ≤ 0.05 L/s·m² @ 75 Pa | Mitigates air leakage, preventing HVAC energy waste and micro-dust infiltration. |
| Water Tightness Under Pressure | ASTM E331 / EN 12208 / AS 4420 | Zero Penetration @ 700 - 1000 Pa | Guarantees leak-free performance during torrential tropical monsoon rains and horizontal deluge. |
| Overall U-Factor (Thermal Transmittance) | NFRC 100 / ISO 10077-2 / EN 673 | 1.10 - 1.45 W/(m²·K) (Double/Triple Low-E) | Complies with ASHRAE 90.1, LEED v4.1, and Title 24 stringent envelope efficiency targets. |
| Solar Heat Gain Coefficient (SHGC) | NFRC 200 / ISO 9050 | 0.22 - 0.35 (Custom Low-E Spectrally Selective) | Reduces direct solar overheating in low-latitude, high-insolation equatorial regions. |
| Acoustic Attenuation (STC / OITC) | ASTM E90 / ISO 10140-2 | STC 38 - 44 dB / Rw (C;Ctr) 40 (-1;-4) dB | Dampens heavy rain clatter, aviation flight paths, and intense urban sound pollution. |
Future Procurement Trends in the B2B Fenestration Sector
International developers, institutional builders, and curtain wall subcontractors are evolving beyond basic pricing negotiations. Strategic procurement now revolves around digital lifecycle traceability, integrated automation, and climate-resilient manufacturing agility.
Direct-From-Factory BIM Integration & Parametric Shop Drawings
General contractors increasingly demand native Autodesk Revit and BIM Level 2 families directly from China exporters before steel orders are cut. Our Foshan engineering department generates rapid LOD 350-400 shop drawings, validating curbs, flashing integration, thermal isotherm lines, and anchor reactions to slash submittal cycles by up to 60%.
Full-Envelope Consolidation (Doors, Windows, Skylights, Curtain Walls)
Fragmented sourcing across distinct vendors creates severe colour mismatches, mismatched anodizing microns, delayed shipping manifests, and disputed weatherproofing guarantees. Procurement trends favor single-source mega-factories capable of supplying congruent fenestration: entry pivot doors, matching panoramic sliding walls, and overhead skylights in identical AkzoNobel or PPG fluorocarbon finishes.
Pre-Glazed & Unitized Modular Roof Assemblies
With jobsite labor costs escalating sharply in North America, Europe, Australia, and Singapore, buyers demand unitized, factory-glazed skylight cassettes. By applying structural two-part silicone under climate-controlled factory cleanrooms in China, quality assurance is elevated while overseas crane hire and rooftop installation durations are compressed by 75%.
Product Development Trends Transforming Roof Fenestration
Aluminium skylights have transitioned from passive daylight openings into dynamic, climate-responsive building components equipped with intelligent IoT actuators, electrochromic glass, and integrated safety engineering.
Electrochromic & Dynamic Solar Glass
Modern smart rooflights incorporate low-voltage electrochromic glazing, enabling building occupants or automated BMS systems to modulate tint levels electronically. This eliminates glare and slashes peak cooling energy without requiring clumsy mechanical fabric shading fabrics exposed to dust and solar degradation.
Concealed Smart Actuators & Sensor Arrays
Gone are bulky external push-rod motors. Contemporary Chinese engineering integrates concealed 24V DC micro-chain electric actuators flush within frame rafters. Paired with optical rain sensors, ambient anemometers, and KNX/Zigbee controllers, units autonomously seal shut upon the first drop of precipitation.
SentryGlas (SGP) Interlayers for Overhead Safety
Overhead building codes mandate strict post-breakage glass containment. Leading exporters specify SentryGlas® (SGP) ionoplast interlayers rather than standard PVB for inner laminated plies. SGP maintains rigid structural load-bearing capacity even when both tempered glass panes shatter, preventing collapse.
Low-Carbon Recycled Extrusion Alloys
Driven by European CBAM tariffs and corporate ESG commitments, Chinese extruders utilize certified low-carbon aluminium billet refined using hydro-powered smelting. Embodied carbon is trimmed to under 4.0 kg CO2e per kg of aluminium without sacrificing metallurgical tensile or yield strength.
Why Global Importers Partner with Our Foshan Factory
Operating from our massive 180,000㎡ industrial park in Shishan Town, Nanhai District, Foshan—the world's premier aluminium fenestration manufacturing hub—we deliver verified export consistency, certified engineering standards, and unmatched logistics turnaround.
25+ Years of Fenestration Craftsmanship & Industrial Scale
Recognized as one of the elite Top 10 door and window brands in China, Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) oversees an integrated value chain encompassing in-house profile design, precision CNC machining, robotic powder coating, double/triple insulating glass assembly, and comprehensive mechanical testing.
- ✓ 180,000㎡ Modern Production Campus: Equipped with European automated cutting, milling, and corner-crimping centers to ensure tolerance precision within ±0.5mm.
- ✓ Verified International Certifications: Formally tested to Australia AS 2047 N6, American NFRC, European CE EN 14351-1, and UL fire-rated standards.
- ✓ Real-Time Engineering Support (GMT+8): Fluent English-speaking structural facade engineers providing rapid turnaround on CAD drawings, calculations, and door schedules.
- ✓ Heavy-Duty Export Packaging: Full-perimeter edge guards, PE protective film, moisture-desiccant packs, and steel-banded fumigated plywood crates designed for ocean freight.
Frequently Asked Questions for Skylight & Fenestration Importers
Direct technical, commercial, and logistical answers curated by our senior export directors to guide foreign architects, contractors, and building product wholesalers.
Leak prevention relies on a three-tier defense system: First, our profiles incorporate integrated EPDM dual-vulcanized drainage channels that capture incidental perimeter moisture and direct it safely outwards via weep baffles. Second, the structural glass unit is bedded in Dow Corning / Sika neutral silicone sealant with non-degrading UV resistance. Third, to halt interior condensation, we engineer thermal breaks using PA66 GF25 polyamide bars and fill the insulating glass unit with 90% argon gas paired with warm-edge composite spacers.
Under US (IBC Chapter 24), European (EN 1991), and Australian (AS 1288) building codes, monolithic tempered glass alone is prohibited for overhead installations due to the risk of spontaneous nickel sulfide inclusion breakage. We configure double-glazed rooflights with an outer pane of fully tempered Low-E glass (for wind and hail resistance) and an inner laminated pane (typically 5mm+0.76/1.52 PVB or SGP+5mm). If impacted, the laminated glass fractures safely in place, preventing injury to room occupants below.
Yes. We integrate concealed or surface-mounted 24V DC chain actuators engineered for up to 50,000 operation cycles with push forces up to 800N. These motors interface seamlessly via dry contact, RS485, KNX, Zigbee, or Tuya protocols, enabling synchronous actuation with whole-house HVAC, wind/rain sensors, smoke evacuation triggers (EN 12101-2 certified), and mobile applications.
For standard architectural powder-coated profiles, our typical production lead time is 25 to 35 business days following final CAD shop drawing sign-off and deposit receipt. For custom anodized or custom-curved structural skylight assemblies, lead time is 35 to 45 days. Because every architectural opening is bespoke, our MOQ is flexible—we support mixed-container orders combining entry doors, casement windows, and custom skylights for residential villa developments or commercial projects.
Every glass unit and aluminium subframe undergoes a multi-layer preservation protocol: 1) Blue PE protective film covering all visible powder-coat surfaces; 2) Rigid plastic corner impact protectors; 3) EPE foam wrapping; 4) Heavy-duty enclosed plywood cases constructed from ISPM-15 compliant heat-treated wood. Glass cassettes are vertically stacked with cork separation pads to prevent friction scratching and silica gel desiccants are enclosed inside sealed vapor-barrier plastic wraps.
Yes. Our engineering department regularly collaborates with overseas consulting engineers. We provide comprehensive structural calculation books, finite element analysis (FEA) reports on frame deflection under peak wind pressures, glass stress calculations under ASTM E1300, and certified laboratory test reports covering air infiltration, water penetration, and cyclic wind loading.
Transform Your Architectural Vision with Factory-Direct Engineering
Submit your door and window schedule, architectural elevations, or opening dimensions today. Our Foshan engineering team will prepare complimentary CAD shop drawings, thermal performance estimations, and an itemized CIF/FOB wholesale quotation within 24 hours.
