Featured Architectural Window & Glazing Systems
Engineered by Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) to meet stringent AS 2047, NFRC, CE, and ISO 9001 compliance standards. Each unit integrates custom thermal breaks, structural wind resistance, and precision passive ventilation logic.

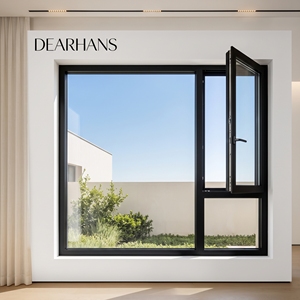

Modern Double Glazed Soundproof Aluminium Casement Windows
Energy-efficient multi-cavity thermal break profiles featuring built-in micro-ventilation positions. Multi-point locking provides airtight sealing and superior acoustic damping (up to 42 dB sound transmission loss).
Hurricane Impact Fixed Windows & Storefront Entrance Systems
Heavy-duty architectural framing designed for extreme coastal wind-load ratings. Features optional trickle-vent integration to maintain fresh air supply while exceeding Category 5 cyclone defense standards.
Motorized High-Speed Rapid Door System with Servo Control
Precision engineered for controlled cleanroom airflow, warehouse thermal segregation, and automated facility air management. High-cycle duty rated with responsive intelligent sensors.
Thermal Break Double Glazed Balcony Patio Sliding Doors
Wind-resistant multi-track patio sliding system equipped with hidden top-frame passive ventilation slots. Minimizes condensation while maximizing natural airflow without compromising thermal barrier U-values.
AS2047 & NFRC Double Glass Stacker Sliding Doors with Mesh
Engineered with 304 marine-grade stainless steel security screens for insect-proof full-span ventilation. Commercial-grade rollers support oversized sashes for expansive panoramic airflow.
Waterproof Soundproof Aluminum French Balcony French Doors
Classical aesthetics combined with modern isobaric pressure equalization chambers. Equipped with multi-stop tilt ventilation hardware, ideal for luxury residential villas in high-rainfall zones.
45 Series Slim Frame White Aluminum Interior Ventilation Swing Doors
Ultra-narrow 16mm visible sightlines with acoustic bottom drop-seals and integrated door head ventilation grilles. Specifically designed for moisture-laden luxury bathrooms and master suites.
Waterproof Lockable Metal Modular Enclosure with Ventilation Gables
Corrosion-resistant galvanized aluminum-zinc coated modular utility enclosure. Engineered with integrated convective roof louvers ensuring steady passive airflow to eliminate condensation.
Technological Evolution & Future Engineering Trends
Modern architectural fenestration has evolved beyond static glazing. Today's commercial developments demand active aerodynamic ventilation, structural thermal isolation, and automated building management system (BMS) synchronization.
1. Multi-Cavity PA66 GF25 Polyamide Thermal Isolation
Traditional cold-bridge aluminum frames dissipate up to 34% of HVAC heating and cooling energy. Modern ventilation windows produced in our Foshan facilities utilize precision-extruded PA66 GF25 fiberglass-reinforced polyamide thermal breaks. This design achieves total U-values under 1.2 W/m²K while integrating hidden trickle ventilation pathways that prevent indoor condensation without thermal loss.
2. Parallel Opening & Micro-Ventilation Kinematics
Unlike conventional outward casements that generate high exterior turbulence, parallel outward opening ventilation windows move the entire glass sash uniformly outward by 50mm to 100mm. This creates a 360-degree continuous perimeter ventilation gap. Natural convective air currents flow uniformly across floor plates while preventing driving rain ingress and wind-induced slamming.
3. Sensor-Driven IoT & Motorized BMS Integration
The next generation of fenestration incorporates concealed 24V brushless DC actuators tied into commercial IoT protocols (KNX, BACnet, Modbus). Window ventilation apertures modulate automatically based on indoor VOC, CO2 levels, relative humidity, and ambient wind speed. In tropical and monsoon climates, intelligent sensors auto-close the sash milliseconds before rain drops enter the building threshold.
Aerodynamic Performance & Acoustic Decoupling Mechanics
One of the most persistent engineering contradictions in architectural building envelopes is achieving continuous natural air exchange while mitigating external acoustic pollution in dense metropolitan centers. In conventional window installations, opening a window by 10% degrades sound transmission insulation by over 25 dB, flooding interior living and working zones with street-level noise.
DERCHI's acoustic ventilation series addresses this challenge through proprietary sound-baffle chambers lined with porous aerodynamic damping micro-foam. Ambient exterior air enters through a labyrinthine baffled louvre channel before reaching the indoor plenum. This geometry attenuates sound wave resonance across the 250 Hz – 2000 Hz spectrum. The result is continuous 8–15 m³/h fresh air exchange per linear meter, while maintaining an effective Rw acoustic attenuation rating of 38 dB.
Request Acoustic Engineering ReportsFuture B2B Procurement Trends in Aluminium Windows
Real estate developers, facade sub-contractors, and overseas distributor networks are transitioning from fragmented localized procurement to direct tier-one Chinese factory partnerships. Understanding these shifts provides developers with substantial cost advantages and schedule certainty.
Decarbonization & Low-Carbon Aluminum Sourcing
Stringent EU Carbon Border Adjustment Mechanism (CBAM) regulations and North American LEED v4.1 requirements are driving demand for certified low-carbon extruded aluminum billet. Tier-one Chinese manufacturers are increasingly utilizing renewable hydropower-smelted virgin ingots mixed with post-consumer recycled alloys. This reduces embodied carbon from 16 kg CO2/kg to under 4.5 kg CO2/kg without compromising tensile strength or surface anodizing consistency.
Single-Source Factory Prefabrication & Pre-Glazing
High on-site glazing labor costs in North America, Australia, and Western Europe have made site-glazed window installations economically unviable. Sourcing fully pre-glazed, silicone-cured window cassettes with integrated sub-frames directly from Foshan cuts on-site installation timelines by 65%. Unitized modular fenestration assemblies arrive crated with factory-calibrated torque specs, pre-tested for air and water leakage.
Rigorous Third-Party Hurricane & Fire Testing
Global buyers now avoid unverified trading entities in favor of direct factories possessing fully traceable batch certification. Demand is heavily concentrated on manufacturers capable of providing independent NATA/AS 2047, NFRC, Florida Building Code (NOA/TAS 201/202/203), and UL 10C fire test reports. Providing third-party batch test traceability ensures smooth municipal code compliance and lowers property insurance premiums.
| Engineering Criterion | Standard Commercial Windows | DERCHI High-Performance Ventilation Systems | Testing Protocol | Compliance Status |
|---|---|---|---|---|
| Alloy Metallurgy & Purity | Commercial 6063 Scrap Blends (Variable) | Primary Virgin 6063-T6 / 6061-T6 Billets | GB/T 5237 / ASTM B221 | Passed / Traceable |
| Thermal Break Profile | Standard PVC or 14.8mm PA66 Strips | 24mm - 34mm Multichamber PA66 GF25 Polyamide | DIN 16941 / ISO 10077-2 | Low U-Value (< 1.3) |
| Water Tightness Under Wind | 300 Pa - 450 Pa (Moderate Leaks) | 600 Pa - 900 Pa Isobaric Pressure Equalized | AS 2047 / ASTM E331 | Typhoon Certified |
| Structural Wind Load (Deflection) | 1,500 Pa - 2,500 Pa | Up to 5,000 Pa (N6 Cyclonic Performance) | AS 2047 / ASTM E330 | AS 2047 N6 Pass |
| Passive Ventilation Integration | Surface-Mounted Add-On Plastic Vents | Extruded Structural Louver Chamber with EPDM Seals | EN 13141-1 | Integrated OEM |
| Surface Coating Durability | Standard Powder Coating (5-Year Fade) | AkzoNobel / PPG Fluorocarbon PVDF (20-Year Warranty) | AAMA 2604 / AAMA 2605 | Salt Spray > 4000h |
Guangdong Dejiyoupin Doors & Windows Co., Ltd. (DERCHI)
Ranked among the Top 10 premium window and door brands in China, DERCHI operates an intelligent 180,000㎡ industrial manufacturing park located in Shishan Town, Nanhai District, Foshan. Our 25+ years of specialized fenestration production bridge the gap between bespoke architectural concepts and precision industrial volume.
- ✓ Full-Chain Production: Extrusion milling, corner-crimping, insulated glass unit (IGU) fabrication, robotic gasket insertion, and final QC.
- ✓ Bespoke CAD/BIM Detailing: Free shop drawings, thermal simulation reports, and structural wind deflection engineering calculations before line casting.
- ✓ Strategic Port Logistics: Located directly adjacent to Guangzhou and Shenzhen deepwater container ports, expediting CIF and DDP freight handling globally.
Frequently Asked Technical & Commercial Questions
Detailed answers prepared by senior window facade engineers covering structural compliance, custom extrusion parameters, container shipping protection, and quality assurance.
