Global Overhead Door Engineering & Strategic Sourcing
In today’s global industrial, commercial, and high-end residential building markets, the architectural building envelope demands unprecedented performance. Sourcing through a premier Custom OEM Aluminum Overhead Door Supplier & Exporter entails far more than acquiring sectional door panels. It requires structural integrity to counter extreme wind pressures, micro-climate thermal barrier engineering, high-cycle spring counterbalance precision, and seamless Building Management System (BMS) integration. Operating out of Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) with over 25+ years of production expertise, we deliver full-scope OEM and private-label sectional doors engineered strictly under ISO 9001, CE, AS 2047, and UL fire-rating standards.

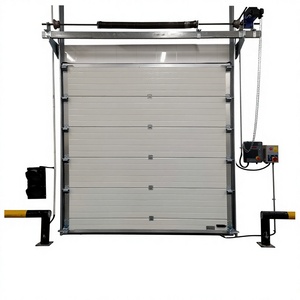

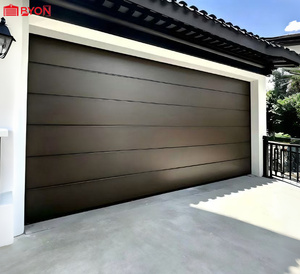

Featured Commercial & Industrial Overhead Systems
DERCHI Manufacturing Advantages: Why Leading Importers Choose Us
As recognized among China's Top 10 premium door and window manufacturers, DERCHI combines in-house metallurgy, precision profile extrusion, automatic robotic polyurethane foam injection, and assembly QA. Our manufacturing hub bridges standard commercial manufacturing with high-specification architectural engineering.
Aviation-Grade 6063-T5/T6 Profiles
All overhead aluminum rails, stiles, and intermediate mullions are extruded from certified 6063-T5 or T6 aluminum alloy. Designed with engineered internal webbing, our frames resist mechanical deflection under severe negative wind load pressures and ensure exceptional structural durability.
Triple Compliance & Hurricane Rigor
Products are fully certified for CE, ISO 9001, UL fire ratings, and Australia's AS 2047 N6 standard. Our overhead systems resist coastal cyclonic conditions, driving rain ingress, and high air leakage, eliminating post-installation liability for project contractors.
100% CAD/BIM Free Engineering
Every project is backed by our specialized engineering team. We supply verified shop drawings, structural wind-load load calculations, track radius configurations (standard lift, high lift, vertical lift, or low headroom), and electrical connection schedules free of charge prior to manufacturing.
Direct Pearl River Export Logistics
Positioned minutes from major deep-water Pearl River Delta ports (Nansha, Shekou, Yantian), we cut domestic transit risks. Every overhead sectional panel is wrapped in protective PE film, edged with anti-scratch styrofoam, and secured in fumigated ocean-grade plywood crates.
Engineering Whitepaper: Technical Specifications & Structural Benchmarks
To aid project estimators, facade engineers, and master importers, the following matrix illustrates structural thresholds across our standard OEM sectional overhead profiles:
| System Classification | Profile Material & Thickness | Thermal Insulation / Glazing | Wind Load Resistance | Hardware & Spring Lifecycle |
|---|---|---|---|---|

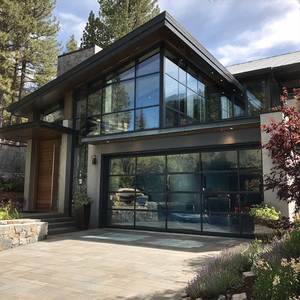

| Full-View Anodized Commercial | 6063-T6 Extruded Aluminum (2.0mm - 2.5mm) | Double Insulated Low-E Tempered (5mm+9A+5mm) | Class 3 - 4 (Up to 1.8 kPa / AS 2047 compliant) | Duplex Oil-Tempered Torsion (25,000 - 50,000 Cycles) |

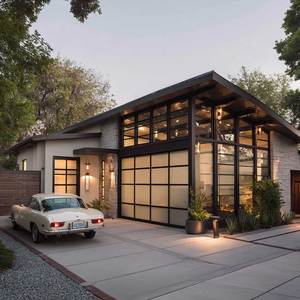

| Thermal Break Sectional Overhead | Polyamide PA66 Thermal Strut + 2.0mm AL | High-Density PUR Foam core (40mm / 50mm) | Hurricane Class 5 (> 2.4 kPa Peak Resistance) | Solid Steel Shaft with Center Coupler (50,000 Cycles) |

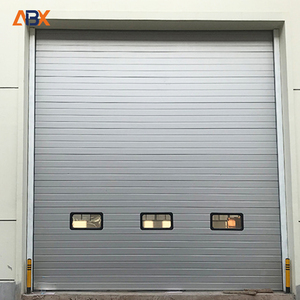

| Heavy-Duty Industrial Sectional | Steel-Clad Aluminum Stiffeners (1.5mm - 2.0mm) | Continuous CFC-Free PUR (U-Value: 0.38 W/m²K) | Heavy Wind Load Reinforcement Truss System | Heavy-Duty Roller Bearings & 100,000 High-Cycle Springs |

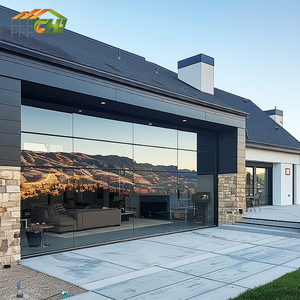

| Frameless Flush Architectural Glass | Concealed Aluminum Subframe (2.5mm heavy web) | Laminated Tempered Impact Glass (6mm+1.52PVB+6mm) | Tested to AS 2047 N6 / Wind Pressure 3000 Pa | Tandem Anti-Drop Safety Brakes & Cable Drums |
Future Procurement Trends in the Overhead Door Sector
Procurement dynamics within commercial access systems are undergoing rapid structural shifts. Global B2B buyers must adapt to four dominant procurement vectors over the next decade:
1. Decarbonization & LEED-Driven Specifying
Global environmental regulations (EU EPBD, US ASHRAE 90.1) are penalizing thermal leakage across loading bays and building envelopes. Demand for polyamide thermal break frames combined with double/triple argon-filled Low-E glass is accelerating. Projects increasingly mandate Environmental Product Declarations (EPDs) and low-carbon extruded aluminum profiles sourced through closed-loop recycling loops.
2. Smart Logistics IoT & BMS Interfacing
Traditional manual or radio-controlled opening devices are being replaced by native RS485 and Modbus/BACnet integrated smart door operators. Importers are procuring doors equipped with integrated telemetry: cycle counters, predictive vibration wear monitors on torsion springs, automatic air-lock sequencing, and cloud-monitored preventative maintenance systems.
3. Architectural Hybrid Full-View Aesthetics
Industrial aesthetics have permeated high-end hospitality, automotive brand experience centers, and luxury residential garages. The market is shifting from plain steel sandwich panels to high-clarity frameless glass, black anodized hairline finishes, and fluorocarbon PVDF powder-coated overhead doors that merge seamlessly with exterior curtain walls.
4. Supply Chain Consolidation & Turnkey OEM
Purchasers are moving away from piecemeal sourcing (buying hardware from one vendor, panels from another, and motors from a third). Contracting all components under a single certified OEM manufacturer ensures tolerances align precisely, reduces ocean freight cubic meters via consolidated nesting, and establishes unified product warranty accountability.
Evolutionary Trajectory of Overhead Door Engineering
From simple mechanical roll-ups to high-precision sectional engineered systems, the technical evolution of overhead doors addresses the modern challenges of climate disruption, sound mitigation, and human safety:
Micro-Acoustic Multi-Chamber Damping
Urban high-density living and commercial hospitality venues require sound barriers between indoor living spaces and external transit noise. Modern aluminum overhead doors incorporate multi-chamber EPDM rubber co-extruded gaskets and acoustic inter-panel dampening strips capable of damping ambient sound by up to 34 dB (Rw rating).
Ultra-High Cycle Counterbalance Metallurgy
Early sectional doors suffered premature spring fractures under high duty cycles. Breakthroughs in shot-peened, oil-tempered spring wire steel (55CrSi and 60Si2Mn) deliver prolonged lifespans ranging from 50,000 to over 100,000 continuous operating cycles, minimizing maintenance downtimes in active distribution hubs and heavy commercial depots.
Anti-Pinch Ergonomics & Dynamic Failsafes
Global workplace safety directives require EN 12604 compliance. Modern sectional panel designs integrate patented tongue-and-groove contouring that prevents fingers from being trapped during rotation. Furthermore, spring break devices and cable tension sensors immediately lock the door shaft within 10mm of freefall if an unexpected failure occurs.
Frequently Asked Questions: Global Sourcing & Engineering
What makes aluminum overhead doors superior to conventional galvanized steel doors in tropical and marine environments? ▾
How do DERCHI custom overhead doors pass severe typhoon and cyclone wind load testing? ▾
What OEM customization options are provided for private-label distributors and commercial developers? ▾
What are the standard production lead times and protective ocean shipping configurations? ▾
Can your automatic operators interface with third-party Smart Home and Building Management Systems (BMS)? ▾
Ready to Engineer Your Custom Overhead Door Solution?
Submit your architectural blueprints, schedule of finishes, or project dimensional requirements. Our Foshan engineering team will generate verified CAD shop drawings, wind load calculations, and comprehensive OEM volume quotations within 24 hours.
