Manufactured under strict ISO 9001 and AS 2047 specifications, these specialized aluminium systems represent the vanguard of European-standard joinery, slim architectural framing, and storm-rated structural integrity.

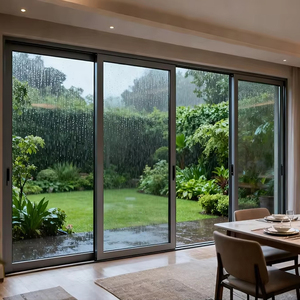

Heavy-duty structural aluminium profiles fitted with laminated tempered safety glass designed to withstand extreme wind-load pressures and cyclonic conditions.

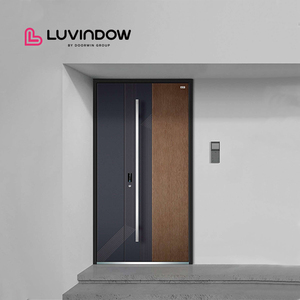

Oversized pivot entrance solution featuring German hydraulic floor pivots, multi-point burglar-proof locks, and weather-sealed thermally broken chambers.

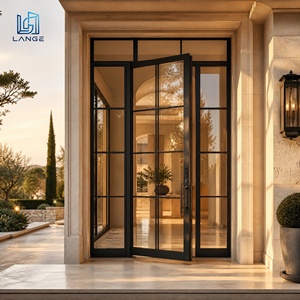

Minimalist French grid aesthetic with ultra-narrow sightlines, architectural fluorocarbon black coating, and custom interior cupboard/divider adaptors.
Engineered for luxury residential villas, offering an acoustic STC rating up to 38dB, stainless steel bottom roller guides, and smooth glide mechanics.

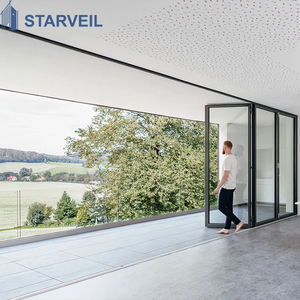

Multi-leaf accordion folding hardware engineered with concealed hinges and continuous EPDM automotive-grade sealing for maximum space-opening efficiency.

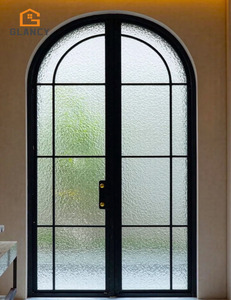

Curved architectural aluminium profile delivering high aesthetics for modern walk-in wardrobes, master closets, wine rooms, and luxury interior partitions.
Multi-axis European hardware providing micro-ventilation and inward casement functionality with high acoustic attenuation and structural air tightness.
Minimalist wardrobe and interior divider door backed by a 10-year warranty, equipped with magnetic latching, concealed hinges, and soft dampers.
In global commercial architecture, hotel fit-outs, and luxury villa construction, sliding cupboard doors represent a critical intersection of metallurgical engineering, precision roller mechanics, and aesthetic minimalism. Sourcing teams must navigate strict quality parameters rather than simple price-per-square-meter calculations.
Premier factories utilize certified 6063-T5 or 6063-T6 architectural grade aluminium billets with web wall thickness between 1.4mm and 2.5mm. Sub-tier manufacturers often incorporate recycled scrap with excessive iron and silicon inclusions, creating brittle profiles prone to deflection and finish pitting under humid conditions.
Tensile Strength: ≥160 MPaThe lifespan of a sliding cupboard door is dictated entirely by its kinetic hardware. Elite exporters integrate sealed carbon-steel or stainless steel SUS304 precision ball bearings encased in fiber-reinforced polyoxymethylene (POM) wheels, guaranteeing silent, frictionless sliding beyond 100,000 opening cycles under sash weights exceeding 120kg.
100,000+ Cyclic DurabilityArchitectural surface longevity demands Class 1 Anodizing (minimum 15-20 microns) or architectural fluorocarbon (PVDF / AkzoNobel powder coating) exceeding 60-80 microns. This ensures non-fading, scratch-proof, and anti-fingerprint properties across humid environments, avoiding oxidation in tropical coastal regions.
Qualicoat & AAMA StandardsModern cupboard door procurement mandates bidirectional soft-closing pneumatic dampers. High-spec factories integrate dual-direction hydraulic dampening that engages 50mm before closure, combined with spring-loaded anti-jump floor guides to eliminate sash derailment risks and structural vibration.
Bidirectional Pneumatic CatchTop-tier exporters engineer modular profile systems capable of accommodating diverse infill media: 4mm to 8mm ultra-clear low-iron tempered glass, fluted/reeded textured glass, Italian porcelain slabs, genuine wood veneers, or acoustic composite sound-absorbing acoustic laminates.
Modular Gasket Infill SystemPrecision manufacturing is invalid without structural export packaging. Top suppliers provide CNC precision within ±0.5mm tolerances and package goods in multi-layer pearl foam wrap, heavy edge angle-protectors, and fumigated steel-strapped solid plywood crates for container shipping.
Zero-Defect Transit Standard| Evaluation Factor | Top Tier Exporters (DERCHI Standard) | Mid-Tier Domestic Fabricators | Low-Cost Budget Workshops |
|---|---|---|---|
| Aluminium Primary Alloy | Primary 6063-T6 Virgin Ingot (≥1.8mm wall) | Mixed 6063-T5 (1.1mm – 1.4mm wall) | Recycled scrap aluminium (<1.0mm wall) |
| Roller Mechanism & Lifespan | SUS304 + Sealed Precision Bearings (100k cycles) | Carbon steel bearings (30k cycles) | Plastic bushing friction rollers (<10k cycles) |
| Safety Glass Standard | SGCC / CE / AS 2208 Certified Laminated/Tempered | Standard local tempered glass | Non-tempered float or thin annealed glass |
| Damper & Soft-Close | Two-way concealed hydraulic gas shock dampers | Single-side rebound mechanical spring | No dampers; rubber bumper stops only |
| Engineering Shop Drawings | Full 3D CAD/BIM shop drawings within 24 hours | Basic 2D PDF cut list | No technical drawings provided |
| Export Quality Warranty | 10-Year Comprehensive Structural Warranty | 1 to 3 Years Limited Warranty | No international warranty coverage |
As commercial hospitality, high-end residential, and multifamily developments demand higher space optimization, global buyers are pivoting toward sleek, intelligent, and sustainable sliding door architectures.
Architects are eliminating bulky frame visual clutter. The industry is rapidly adopting visible frame sightlines of 10mm to 16mm or entirely concealed "ghost tracks" where upper suspension rollers and floor guides are recessed seamlessly into millwork or gypsum ceilings. This creates an unbroken, floating architectural visual across wardrobe and room-dividing cupboard installations.
This minimalist aesthetic relies on high-modulus aluminium alloy alloys to prevent tall doors (reaching up to 3.5 meters) from flexing or warping under wind draft or mechanical movement.
The convergence of home automation and luxury joinery has introduced linear brushless DC motors and magnetic levitation sliding tracks to the cupboard door category. Operating at ultra-low decibel thresholds (≤28dB), doors can be actuated via non-touch infrared sensors, smartphone applications, or building management systems (BMS).
Import procurement programs for five-star hotels and luxury penthouses increasingly feature these motorized, anti-pinch sensor sliding systems as standard baseline requirements.
Global architectural regulations (including LEED, BREEAM, and European CBAM carbon border mechanisms) are requiring developers to document low embodied carbon profiles. Forward-thinking exporters are utilizing renewably powered hydroelectric-smelted aluminium billets yielding less than 4.0 kg CO2 per kg of aluminium, alongside 100% recyclable powder coatings that produce zero volatile organic compounds (VOCs).
Traditional sliding cupboard doors often suffered from poor dust exclusion and internal closet stagnation. The next-generation designs feature continuous co-extruded magnetic perimeter seals, high-density silicone brush strips with fin barriers, and integrated micro-perforated air-filtration louvers that balance ventilation while preventing pest and dust intrusion.
Operating from Foshan, Guangdong—the world's foremost cluster for high-precision architectural aluminium—Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) represents China's Top 10 premium door and window manufacturing excellence.
DERCHI encompasses a massive 180,000㎡ modernized industrial park powered by high-precision German CNC extrusion cutters, automated profile machining centers, and an advanced automated fluorocarbon coating facility. Our engineering division of over 600 skilled technicians ensures seamless transition from architectural shop drawings to container-load production.
Every batch of aluminium sliding doors undergoes pre-assembly verification, digital micrometer coating depth checks, saline fog corrosion tests (1000+ hours), and rolling track cycle resistance before crating.
Our dedicated English-speaking technical team provides free CAD shop drawings, custom extrusion mold tooling design, and 3D cross-sectional details matching custom project door schedules within 24 hours.
Direct technical and operational answers to address common inquiries from general contractors, interior fit-out firms, and commercial purchasing managers.
Send our senior engineering team your architectural elevation drawings or door schedules. We generate complete 2D/3D CAD shop drawings, hardware load-bearing calculations, and factory-direct export proposals within 24 hours.
