High-Performance Architectural Fenestration & Entrance Systems
Engineered to satisfy stringent global standards (AS 2047, CE, ASTM, ISO 9001), our exported folding and sliding configurations deliver unrivaled structural stability, acoustic dampening, and tropical climate durability.

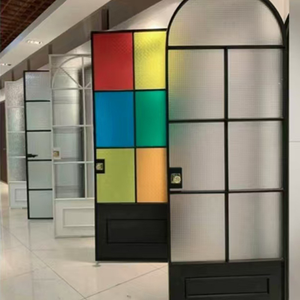

Arch Aluminum Casement Doors Modern Double Flush Glass

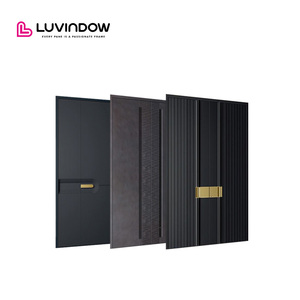

Luxury Custom Aluminum Single Door LA Replacement

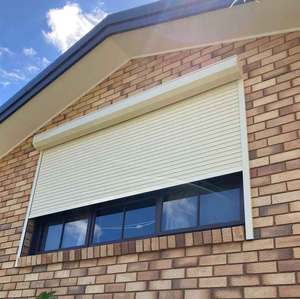

Remote Security Roller Shutter Alloy Windows

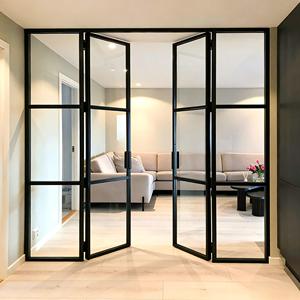

45 Slim Frame Church White Aluminum Swing Door

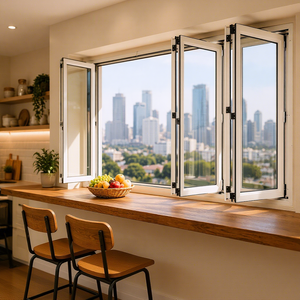

Vertical Folding Up Glass Windows Bi-Fold Awning
Hinged Back Entrance Door with Pet Hatch Panel

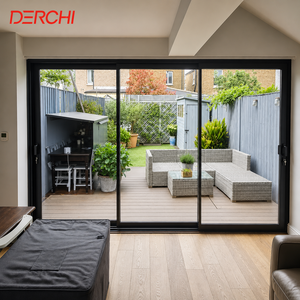

Soundproof Energy Saving Tempered Patio Slider

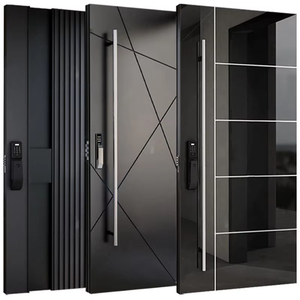

Alucasa Architectural Glass Pivot Front Door
How to Audit & Select a Top 10 Aluminium Sliding Folding Windows Factory
In high-end architectural developments and coastal commercial complexes, selecting an exporter is far more critical than a basic price-per-square-meter quote. Industrial buyers must evaluate metallurgic integrity, structural hardware cycle capacities, thermal break compounding, and export compliance.
Primary 6063-T6 Ingot Extrusion
Elite manufacturers exclusively utilize virgin 6063-T5/T6 or 6061 billet extrusions with uniform wall thickness (≥2.0mm for folding sashes). Reject factories relying on remelted scrap aluminum which exhibits micro-porosities, uneven anodizing absorption, and premature mechanical failure under cyclic wind loads.
Rolling Hardware Fatigue Engineering
Sliding-folding systems hinge on their carrier rollers. Tier-1 facilities install heavy-duty quad-roller assemblies featuring sealed stainless steel bearings (SUS316) rated for over 100,000 continuous articulation cycles without sagging, friction build-up, or derailment under dynamic deadweight.
Polyamide PA66 GF25 Thermal Breaks
Energy code compliance (such as Title 24, Ashrae 90.1, or NCC Section J) mandates multi-cavity glass-fiber reinforced Polyamide 66 thermal barrier strips. Beware of cheap PVC substitutes that expand at divergent rates from aluminum, resulting in profile shearing, condensation leaks, and structural delamination.
AAMA 2605 / Qualicoat Surface Treatment
For seaside estates in Southeast Asia, the Caribbean, or coastal Australia, surface finishing dictates longevity. Premier exporters apply fluorocarbon PVDF coating (min 3-coat system) or Class I 25-micron architectural anodization tested to survive 4,000+ hours of continuous neutral salt spray exposure.
Pressure-Equalized Drainage & EPDM Gaskets
Top folding systems incorporate co-extruded EPDM continuous vulcanized gasket corners rather than slotted silicone joints. Coupled with multi-tier weep-hole chambers and stepped drainage channels, this prevents water siphonage during typhoon-level gale winds up to 1000 Pa.
Factory Pre-Assembly & Tolerance Verification
Top exporters maintain designated 100% trial-erection test stands where every bi-fold multi-panel array is assembled, laser-measured for diagonal alignment (deviation <1.0mm), tested for smooth gliding resistance, and tagged with barcoded panel-sequencing IDs before export packing.
| Performance Benchmark | Top Exporter Grade (DERCHI Standard) | Generic Commodity Manufacturer | Project Impact |
|---|---|---|---|
| Alloy Composition | Virgin 6063-T6 (Silicon/Magnesium precision alloy) | Recycled remelt billet (Uncontrolled impurities) | Zero embrittlement, 30+ yr life |
| Wind Pressure Rating | AS 2047 N6 (Serviceability > 3000 Pa, Ultimate > 4500 Pa) | Uncertified or Basic 1200-1500 Pa | Resists Super Typhoons / Cyclones |
| Water Penetration | Static/Dynamic 450 Pa - 700 Pa (Zero leakage) | 150 Pa - 250 Pa (Prone to wind-driven ingress) | Prevents luxury interior floor damage |
| Thermal Transmittance | U-value down to 1.3 - 1.8 W/m²K (With Warm Edge Spacer) | U-value 3.5 - 5.2 W/m²K (Unbroken cold bridge) | Reduces HVAC energy load by 35% |
| Gliding Cycle Reliability | 100,000 cycles (SUS316 top-hung / bottom roller) | 10,000 - 15,000 cycles (Plastic/zinc wheels) | Zero warranty callouts & track jam |
Emerging Procurement & Technology Trends in B2B Folding Fenestration
Architectural expectations across North America, Australasia, Southeast Asia, and the Gulf Region are accelerating toward high energy performance, frameless sightlines, and smart residential integration.
1. Zero-Threshold Flush Floor Integration
Developers are eliminating physical step-over barriers. Modern designs require flush subterranean track systems with concealed linear drainage channels that allow seamless transitions between indoor living rooms and infinity decks while guaranteeing zero backflow during heavy downpours.
2. Motorized Concealed Architectural Actuators
As glazed panels exceed 3.5 meters in height and 180kg per leaf, manual operation reaches physical limits. Next-generation systems feature brushless DC concealed motors, synched belt drives, and integration with KNX/Zigbee home automation for automated opening and storm sensing.
3. Embedded Low-E Triple Glazing & Vacuum Glass
Stringent decarbonization regulations demand ultra-low thermal transmittance. Exporters are shifting to 42mm+ insulated glass units (IGUs) incorporating warm-edge silicone structural spacers, argon filling, and emerging hybrid vacuum insulated glass (VIG) delivering center-of-glass Ug values below 0.6 W/m²K.
4. Circular Economy & Low-Carbon Aluminum Billets
International tenders across Australia and the European Union now incorporate Environmental Product Declarations (EPDs). Leading factories have embraced hydro-powered green aluminum smelting, reducing embodied carbon from 16kg CO2/kg Al to below 4kg CO2/kg Al without compromising tensile strength.
5. Complete Off-Site Modular Glazing Verification
Escalating on-site installation labor rates in key import markets have forced a shift from knockdown (CKD) delivery to fully pre-glazed, pre-hung cassette units. Exporters providing custom steel transport racks with anti-vibration clamps minimize installation time by up to 60%.
Why Tier-1 Developers & Wholesalers Partner with DERCHI
Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) stands at the pinnacle of Chinese architectural door and window manufacturing, located in the heart of Foshan’s aluminum extrusion capital.
Enterprise Manufacturing Infrastructure Built for High-Volume Export
Spanning an expansive 180,000㎡ intelligent production campus, DERCHI bridges the gap between precision German engineering tolerances and China's unparalleled industrial supply chain velocity. Our factory serves premier villa estates, commercial resorts, and high-rise developments across the Philippines, Singapore, Malaysia, Australia, the UAE, and the USA.
- AS 2047 N6 Wind-Load Certified: Rigorously tested for cyclical wind pressure, water tightness, and structural deflection under severe typhoons.
- Free Comprehensive CAD/BIM Shop Drawings: Dedicated engineering department converting architectural schematics into fabrication-ready schedules within 24 hours.
- Direct Export Logistics from Pearl River Delta: Proximity to Guangzhou, Shenzhen, and Foshan ports ensures rapid container consolidation and reliable sea freight.
- Synchronous GMT+8 Support: Real-time English-speaking technical service eliminating overseas delays and communication friction.
Frequently Asked Questions by Importers, Architects & Contractors
Direct answers addressing technical specifications, container logistics, custom sizing, and structural validation.
What is the structural maximum height and width per sash for bi-fold windows?
Utilizing our reinforced 6063-T6 heavy-duty profiles, individual folding leaves can achieve heights up to 3,500 mm and widths up to 1,200 mm per panel, with maximum glass weights reaching 150 kg per carriage. Custom engineered reinforced steel mullion inserts allow even grander architectural spans subject to engineering wind load calculations.
How does DERCHI prevent water leakage during extreme tropical storms and cyclones?
Our systems incorporate a triple-barrier sealing methodology: vulcanized continuous EPDM gasket corners, integrated pressure-equalization cavities, and stepped drainage sub-sills equipped with one-way baffled flapper valves. This system has passed dynamic water penetration tests under 450 Pa - 700 Pa pressures without a drop entering the interior.
What surface finishes are recommended for coastal marine developments?
For installations situated within 500 meters of open saltwater, we mandate either an AAMA 2605 certified fluorocarbon PVDF 3-coat liquid spray finish (minimum 70% Kynar 500 resin base) or a Class I 25-micron anodic oxidation coating with hot water deionized hydration sealing, exceeding 4,000-hour salt spray testing.
What export packaging standards are used to prevent transit damage during sea freight?
All finished assemblies are encased in a 5-layer protective system: low-tack protective PE film on extrusions, thick corner edge protectors, bubble wrap cushioning, waterproof shrink wrap, and reinforced non-fumigation plywood crates with internal anti-shock foam blocks. Crates are pre-drilled for forklift handling and crane hoist straps.
Can you provide comprehensive shop drawings and certification test reports for local building approvals?
Yes. Upon receipt of your architectural window schedule or rough opening dimensions, our in-house engineering team provides complete 2D/3D CAD shop drawings, detailing wall connection interfaces, fastener embedment depths, thermal calculations, and official test certificates (CE, ISO 9001, AS 2047, UL) necessary for local municipal sign-off.
What is the typical production lead time and minimum order quantity (MOQ)?
Our standard production cycle is 25 to 35 business days following final approval of shop drawings and finish samples. Because we specialize in custom architectural projects, we accommodate both single luxury villa orders and multi-container commercial high-rise contracts, maintaining high flexibility with factory-direct pricing tiers.
Initiate Your Direct Factory Fenestration Project Proposal
Send your structural floor plans, window schedules, or target thermal U-values. Our Foshan engineering team will prepare an itemized technical quotation, material samples, and complimentary CAD shop drawings within 24 hours.
Inquire Now
