Precision Engineering
High-Performance Architectural Replacement Windows & Openings
Designed for extreme weather resilience, superior thermal break insulation, and rigorous acoustic isolation across residential, hospitality, and commercial envelope retrofits.
Industry Whitepaper
Evolution of Aluminum Clad Replacement Windows: Architectural Imperatives
Aluminum clad replacement windows—combining natural timber warmth internally with extruded aluminum weather armor externally—represent the pinnacle of high-durability fenestration retrofitting.
Polyamide PA66 Thermal Barrier Engineering
Early cladding systems suffered from differential thermal movement. State-of-the-art China manufacturing integrates multi-chamber continuous PA66 GF25 thermal breaks mechanically crimped between structural 6063-T6 aluminum sections, eliminating thermal short-circuiting, condensation dripping, and reducing whole-window U-factors down to passive levels (Uw ≤ 0.8 W/m²·K).
Advanced Cladding Attachment & Vapor Balance
Modern extrusion joints utilize dynamic floating composite clips rather than rigid fixing screws. This enables independent expansion and contraction rates between exterior aluminum and interior timber. Integral drainage micro-channels vent trapped atmospheric moisture, preventing dry rot, veneer debonding, and seal degradation over decades of exposure.
High-Yield PVDF & Architectural Powder Coating
External aluminum casings are pretreated through eco-friendly chromate-free chemical dips prior to applying 3-coat fluorocarbon PVDF (Kynar 500) or Qualicoat Class 2 hyper-durable powders. This provides resistance against salt-spray corrosion (tested over 3,000 hrs ASTM B117), intense UV degradation, acid rain, and color fading across marine and tropical environments.
| Performance Characteristic | Standard Vinyl (PVC) Replacements | Conventional Anodized Aluminum | DERCHI Architectural Aluminum-Clad Systems |
|---|---|---|---|
| Thermal Conductivity (U-Factor) | 0.28 – 0.35 BTU/(hr·ft²·F) | 0.45 – 0.65 (High heat transmission) | 0.14 – 0.22 BTU/(hr·ft²·F) (Passive Ready) |
| Structural Wind Load (AS 2047 / ASTM E330) | Moderate (prone to sash warp >2.4m) | High (rigid frame) | Extra High N6 Rating (>4500 Pa Design Load) |
| Acoustic Attenuation (STC / OITC) | 28 – 32 dB (Moderate dampening) | 26 – 30 dB (Transmits vibrations) | 38 – 46 dB (Triple laminate argon unit) |
| Service Life & Aesthetic Stability | 12 – 18 Years (UV yellowing / embrittlement) | 20 – 25 Years (Pitting corrosion in salt air) | 40+ Years (Zero exterior maintenance) |
Strategic Sourcing
Global Procurement Trends: What Major Importers Prioritize
Supply chain realignments, carbon footprint compliance, and lean construction timelines are transforming how international developers, general contractors, and trade wholesalers source replacement windows from China.
Strict Lab Code Compliance
Developers no longer rely on mill test certificates. Successful importers demand certified testing verifying compliance with Australian AS 2047, North American NFRC / AAMA, CE EN 14351-1, and UL fire ratings prior to container loading.
Direct BIM & CAD Integration
Procurement teams require mill factories capable of converting architectural schedules into parametric BIM objects and detailed shop CAD drawings, verifying rough openings, flashing details, and sill pan transitions before line production.
Sub-Assembly Logistics
Rising sea freight costs encourage flat-pack knocked-down (KD) frames for oversized units and pre-glazed knock-in subframes for standard openings, coupled with fumigated steel-pallet crating to prevent transit glass shock.
Total Life-Cycle Costing
While initial acquisition cost remains critical, commercial developers evaluate fenestration based on whole-building lifecycle energy modeling (LEED & BREEAM), favoring systems with embodied aluminum recycling and verified thermal efficiency.
Why Partner With Us
Guangdong Dejiyoupin Doors & Windows Co., Ltd. (DERCHI)
Recognized among the Top 10 fenestration and door manufacturers in China, DERCHI brings over 25 years of engineering mastery from our 180,000m² intelligent manufacturing park in Foshan, Guangdong.
- End-to-End In-House Fabrication: Extrusion anodizing, CNC thermal break crimping, automated IG glass sealing, and German corner crimping under strict ISO 9001 quality supervision.
- Certified for Demanding Climates: Lab-tested AS 2047 N6 cyclone benchmarks, UL fire resistance, CE safety certifications, and custom acoustic configurations up to 46 dB.
- Global Project Execution: Proven export record spanning premium villa estates, hotel retrofits, and high-rise condominiums across Southeast Asia, North America, Oceania, and the Middle East.
Buyer Intelligence
Frequently Asked Questions: Sourcing Windows from China
Technical clarifications addressing structural performance, delivery timelines, custom shop drawings, and factory direct quality controls.
What are the key technical differences between roll-form aluminum cladding and extruded aluminum cladding?
Roll-form cladding uses ultra-thin aluminum coil (often 0.6mm to 0.8mm) wrapped around wood sashes like sheet metal foil, which can dent easily under hail, offers negligible structural rigidity, and degrades along seam joints. DERCHI exclusively engineers heavy-gauge extruded aluminum cladding (1.6mm to 2.2mm minimum wall thickness) utilizing alloy 6063-T6. Extruded cladding acts as an independent external exoskeleton with mechanical corner brackets, providing structural wind load resistance, integrated weep systems, and robust impact tolerance against hurricane force winds.
How does your factory ensure compliance with foreign building codes like AS2047, NFRC, and CE?
Our products undergo testing at NATA-accredited, IGCC-accredited, and European notified body laboratories. For Australia, our window units have achieved the AS 2047 N6 rating (covering wind deflection, air infiltration, and water penetration resistance up to cyclonic pressures). For North American projects, glass make-ups are processed to ASTM C1048 standards with IGCC certification, and complete assemblies feature simulated and physical NFRC thermal ratings. We provide certified lab reports and calculation packages for permit submissions.
Can you provide custom CAD and BIM shop drawings for specialized replacement openings?
Yes. Every replacement project has unique rough opening challenges, including existing buck conditions, out-of-square walls, and water barrier transitions. Our dedicated engineering department provides complimentary preliminary 2D CAD cross-sections, head/sill/jamb interface profiles, and anchoring schedules within 48 to 72 hours of receiving your door/window schedule. Upon order confirmation, complete 3D models and production tickets are generated for sign-off prior to extrusion cutting.
What glass packages and thermal ratings are available for extreme hot or cold climates?
We configure glazing units based on your project's climate zone and local building energy codes:
• Tropical / Subtropical: Double glazing with double silver solar-reflective Low-E (e.g., Solarban 60/70) offering low SHGC (0.22 – 0.28) to reduce HVAC air conditioning loads.
• Alpine / Cold Continental: Triple pane units (e.g., 6mm Low-E + 16A Argon Warm Edge Spacer + 5mm Clear + 16A Argon + 6mm Low-E) achieving U-factors below 0.16 BTU/(hr·ft²·F).
• Acoustic & Security: Laminated soundproof PVB/SentryGlas (SGP) outer panes tested for impact resistance and STC ratings up to 46 dB.
• Tropical / Subtropical: Double glazing with double silver solar-reflective Low-E (e.g., Solarban 60/70) offering low SHGC (0.22 – 0.28) to reduce HVAC air conditioning loads.
• Alpine / Cold Continental: Triple pane units (e.g., 6mm Low-E + 16A Argon Warm Edge Spacer + 5mm Clear + 16A Argon + 6mm Low-E) achieving U-factors below 0.16 BTU/(hr·ft²·F).
• Acoustic & Security: Laminated soundproof PVB/SentryGlas (SGP) outer panes tested for impact resistance and STC ratings up to 46 dB.
What are typical production lead times, and how are windows protected for ocean transit?
Standard custom production timelines are 25 to 35 days from final CAD shop drawing approval. For project packaging, all finished frames are wrapped in peelable protective film, corner-guarded with high-density EVA shock bumpers, enclosed in sealed humidity-barrier bags with desiccant packs, and packed into fumigated A-frame steel crates or fully enclosed OSB wooden boxes. Crates are loaded with internal container bracing to prevent shifting during maritime transit.
Can we source full project fenestration from DERCHI to consolidate shipping containers?

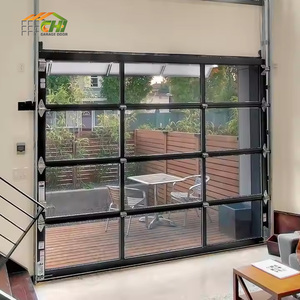

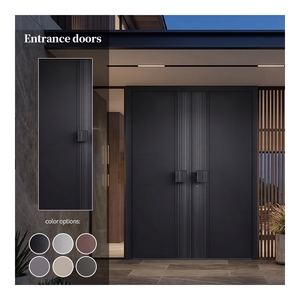

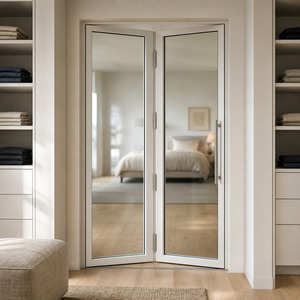

Yes. One of our core strategic advantages for international buyers is one-stop procurement. In addition to aluminum clad replacement windows, our Foshan factory manufactures thermal break casements, high-load glass pivot entry doors, luxury cast aluminum villa doors, exterior bifold systems, and automatic hurricane impact sectional garage doors. Combining these into unified 40ft HQ containers significantly reduces ocean freight per unit, streamlines customs clearance, and ensures architectural finish consistency across all fenestration elements.
