Engineered Architectural Window & Fenestration Assemblies
Explore factory-direct engineered fenestration systems manufactured in accordance with strict international building codes (AAMA/WDMA/CSA 101/I.S.2/A440, AS 2047, and EN 14351-1). Each precision assembly undergoes multiaxial structural and thermal testing before ocean transport.
Acoustic Core
OEM European Style Thermal Insulation Acoustic Hidden Frame Aluminium Honeycomb Laminate Interior Swing Door for Apartments
- High-rigidity aluminum honeycomb infill
- Concealed flush-mount perimeter frame
- Acoustic isolation rating up to STC 36 dB
Smart Control
Security Access Control RFID Biometric Touchless Fireproof Breakaway Emergency Exit High Traffic Automatic Swing Door
- UL fire-rated breakaway emergency operator
- Biometric RFID contact-free access integration
- Commercial high-traffic electro-hydraulic drive
Solar Shading
Lukliving Aluminium Glass Casement Windows With Inserted Blinds Built-in Blinds Privacy Design
- Hermetically sealed motorized Venetian louvers
- Multi-chambered PA66-GF25 thermal barrier
- Dual compression EPDM perimeter gaskets
Oversized Pivot

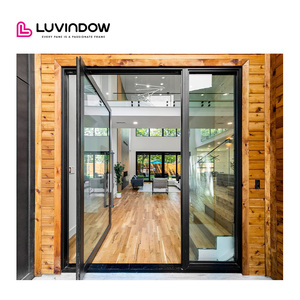

Modern Pivot Aluminum Door Glass Front Villa Entry US Made Thermal Break Energy Efficient
- Heavy-duty concealed floor pivot hinge capacity
- High-transmittance laminated Low-E safety glass
- Multi-point tamper-resistant deadlock system
Sunroom System
FUSON CE North America for Contractors Sunroom Project Thermal Insulation Aluminum Window Sliding Window
- Optimized sloped drainage sill with anti-backflow
- Argon-filled dual-seal insulated glass unit
- Smooth tandem stainless steel roller carriages
Lift & Slide
Airtight Aluminum Compression Sliding Door Heavy Duty Lift And Slide System For Villa Courtyard Commercial Use
- Heavyweight sash capacity up to 400 kg per panel
- Compression perimeter drop-down seal mechanics
- Continuous barrier-free flush sill extrusion
Alu-Clad Wood
Aluminum Clad Wood Interior Door Solid Wood Core Double Glazed Waterproof Soundproof Bedroom Door for Villa Hotel
- Solid hardwood internal structure with exterior alloy
- Dual silicone perimeter sealing for noise dampening
- Zero-formaldehyde waterborne finish technology
Access Panel
Ventech High Quality Aluminium Access Panel Drywall Ceiling Access Roof Hatch Door with Concealed Snap Lock
- Extruded 6063-T5 aluminum framing profile
- Concealed magnetic push-to-release locking latch
- Seamless integration with interior drywall ceiling
The Architectural Anatomy of High-Performance Aluminum Garden Windows
An aluminum garden window—often termed a greenhouse window—is an intricate three-dimensional projecting fenestration assembly that extends outward from the building envelope. Historically designed to provide an illuminated microclimate for domestic horticulture and maximize natural solar insolation, contemporary commercial and residential fenestration standards demand that these complex units function with the structural rigidity, water-tightness, and thermal performance of high-specification curtain wall systems.
For international procurement directors, architects, and facade consultants sourcing from Chinese manufacturing hubs, aluminum garden windows present distinct structural and thermodynamic challenges compared to conventional flat casement or sliding windows. Because a garden window projects 90 degrees from the vertical facade, it possesses five distinct exterior surfaces exposed to environmental forces: an overhead sloped glazing roof panel, two flanking side ventilation vents (typically single-hung, casement, or awning units), a frontal fixed picture viewing pane, and a cantilevered insulated bottom seat-board.
Critical Engineering Notice for Procurement Engineers: The intersection points where the sloped glass roof meets the vertical facade and corner mullions are historically vulnerable to capillary water infiltration and structural dead-load sagging. China's top tier fenestration manufacturers resolve this via high-tensile 6063-T6 aluminum structural extrusions, precision corner vulcanization, and integrated internal condensation weeping channels that bypass conventional external caulking vulnerabilities.
Structural Metallurgy: 6063-T5 vs. 6063-T6 Extrusion Chemistry
Primary extrusion integrity dictates whether a projecting window assembly will maintain structural alignment across decades of thermal cycling and wind loading. Premier Chinese fabricators utilize virgin 6063 architectural aluminum alloy billet, rigorously rejecting post-consumer scrap that introduces metallurgical impurities like excess iron, which impairs structural elasticity and corrosion resistance.
Through precisely monitored automated induction heating, profile extrusion, and specialized quench-and-temper precipitation aging cycles, profiles achieve either a T5 temper (yielding a tensile strength not less than 160 MPa and yield strength of 110 MPa) or a T6 temper (elevating tensile strength above 205 MPa and yield strength to 180 MPa). For oversized projecting garden windows where the cantilever distance exceeds 450 mm, structural mullions and roof rafters are engineered strictly in 6063-T6 or 6061-T6 to eliminate sagging under heavy double-laminated glass weights and severe external snow loads.
Polyamide Thermal Barrier Technology: Eliminating Conductive Energy Loss
Aluminum exhibits an inherently high thermal conductivity (approximately 160 to 200 W/m·K). Without an engineered thermal break, projecting garden windows create severe thermal bridging, causing rapid interior surface condensation, dew-point sweating that rots interior shelving, and excessive building HVAC cooling or heating loads. Top Chinese export manufacturers utilize multi-cavity, continuous extruded Polyamide (PA66) structural insulating struts reinforced with 25% transverse glass fibers (PA66-GF25).
This composite configuration exhibits a thermal conductivity of merely 0.3 W/m·K while perfectly matching the coefficient of linear thermal expansion of the flanking aluminum alloy extrusions (2.3 × 10⁻⁵ K⁻¹). The mechanical crimping process involves high-precision knurling of the aluminum profile extrusion pockets, followed by mechanical roller crimping to guarantee transverse tensile shear strengths exceeding 45 N/mm, conforming strictly to EN 14024 standards.
Engineering Specification Matrix: Aluminum Garden Window Profiles
When preparing tender documentation or assessing Chinese original equipment manufacturer (OEM/ODM) supplier capabilities, evaluate the fenestration system parameters against the comparative engineering matrix below:
| Performance Parameter | Standard Commercial Grade | High-Performance Export Grade | Extreme Climate / Passive Standard |
|---|---|---|---|
| Alloy Metallurgy & Wall Thickness | 6063-T5 (1.4 mm to 1.6 mm) | 6063-T6 Heavy Duty (1.8 mm to 2.2 mm) | 6063-T6 Structural (2.5 mm to 3.0 mm) |
| Thermal Break Configuration | 14.8 mm Single PA66-GF25 Strut | 24 mm to 34 mm Multi-Cavity Strut | 39 mm+ Isobaric Multi-Chamber Polyfoam |
| Overall U-Factor (ISO 10077-2) | 2.4 – 2.8 W/(m²·K) | 1.4 – 1.8 W/(m²·K) | 0.75 – 1.0 W/(m²·K) (Passivhaus Tier) |
| Solar Heat Gain Coefficient (SHGC) | 0.45 – 0.60 (Untreated Double) | 0.25 – 0.32 (Triple Silver Low-E) | 0.18 – 0.24 (Spectrally Selective Low-E) |
| Acoustic Attenuation (STC / OITC) | STC 28 – 31 dB | STC 35 – 39 dB (Acoustic PVB) | STC 42 – 46 dB (Triple IGU with SGP) |
| Water Penetration Resistance (ASTM E331) | 300 Pa (6.24 psf) | 600 Pa (12.5 psf) | 900 Pa to 1200 Pa (Cyclonic AS 2047 N6) |
| Structural Wind Load (ASTM E330) | 1500 Pa Design Pressure | 3500 Pa Design Pressure | 5000+ Pa Structural Ultimate Load |
Future Sourcing Trends for Aluminum Garden Windows & Architectural Openings
As international energy conservation codes—such as the EU Energy Performance of Buildings Directive (EPBD 2024 recast), the US ASHRAE 90.1, and Australia's National Construction Code (NCC)—tighten holistic building envelope envelope targets, the global procurement landscape for China-manufactured fenestration systems is undergoing rapid paradigm shifts.
Decarbonized Low-Carbon Aluminum
Global buyers increasingly require certified Environmental Product Declarations (EPDs). Leading Chinese exporters in Foshan are adopting hydro-powered, green-smelted primary aluminum billets yielding an embodied carbon footprint below 4.0 kg CO₂e per kg of finished extrusion, drastically reducing CBAM (Carbon Border Adjustment Mechanism) tariff liabilities in European ports.
Automated Glass-To-Edge Sloped Roofs
Traditional garden windows relied on exterior metal frame sills on the top sloped panel, which gathered dirt, pollen, and sitting pool water. Modern engineering trends mandate step-glazed, flush glass-to-edge exterior surfaces with hydrophilic titanium dioxide (TiO₂) self-cleaning coatings, ensuring rapid runoff and zero water ponding even at low roof pitch angles (under 15°).
Smart Dynamic Solar Shading
Overheating during peak solar equinox remains a primary design liability for glass greenhouse extensions. Future-proof specifications integrate hermetically sealed motorized magnetic Venetian blinds or electrochromic dynamic glass directly inside the dual-pane insulated glass unit (IGU), controlled via Tuya, Zigbee, or KNX building automation protocols.
Advanced Technology & Manufacturing Developments
The manufacturing gap between premium Chinese fenestration producers and legacy German or American producers has closed substantially, driven by large-scale capital investments into computer-numerical-control (CNC) extrusion fabrication centers, German Schirmer profile cutting systems, and automated robotic sealant application lines.
Key technological breakthroughs elevating the reliability of Chinese exported garden windows include:
- Four-Corner Simultaneous Hydraulic Crimping: Eliminating manual alignment variance by deploying automated quad-head crimpers with cast aluminum corner brackets and micro-injected structural two-part polyurethane corner adhesives (chemo-welding), guaranteeing 100% airtight and watertight frame corner joints.
- Dual-Component Structural Silicone Robotization: Replacing manual gunning with 6-axis robotic dispensers that apply Dow Corning or Sika structural glazing silicones at consistent 6 mm to 10 mm bite-thickness, completely mitigating delamination risks caused by thermal expansion differences between glass and aluminum.
- Isobaric Pressure Equalization Chambers: Utilizing internal EPDM multi-chamber gaskets engineered with pressure-relief weep openings that equalize interior frame cavity pressure with exterior wind pressure, stopping vacuum-assisted capillary water intrusion under storm conditions.
Guangdong Dejiyoupin (DERCHI) Industrial Ecosystem
Operating from an expansive 180,000㎡ advanced production hub in Shishan Town, Nanhai District, Foshan—the epicenter of global architectural aluminum manufacturing—Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) stands among the Top 10 fenestration enterprises in China. For over a quarter of a century, our technical engineering team has engineered bespoke architectural openings, heavy-duty pivot doors, and complex projecting window assemblies for luxury villas, commercial towers, and multi-family residential projects across Oceania, North America, Southeast Asia, and the Middle East.
- Full In-House Lifecycle: Proprietary R&D, precision mold design, extruding, fluorocarbon/powder coating, IGU assembly, and rigorous pre-shipment dry-fit testing.
- Global Certification Portfolio: Fully audited compliance including CE, ISO 9001, Australian AS 2047 (N6 Cyclonic Rating), and UL fire ratings.
- Free Engineering CAD & BIM Drafting: Dedicated fenestration structural engineers generate millimeter-precise shop drawings, wind load calculations, and thermal analysis prior to extrusion cutting.
- Direct Pearl River Delta Logistics: Direct container staging adjacent to Guangzhou, Nansha, and Shenzhen ports guarantees reduced handling, container drayage efficiencies, and seamless global maritime dispatch.
Frequently Asked Questions for Aluminum Garden Window Importers
Direct technical guidance compiled by our chief facade engineers to address common specification, testing, and shipping questions encountered by global general contractors and distributors.
Connect Directly with Our Fenestration Engineering Group
Submit your project architectural drawings, window schedules, or structural specification inquiries. Our bilingual facade engineering team operates across GMT+8 to deliver optimized cost estimations, CAD shop drawings, and structural proposals within 24 business hours.
