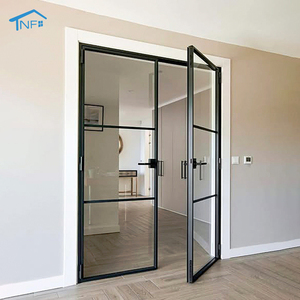

French Design Commercial Swing Soundproof Waterproof Aluminum Double Tempered Glass Casement French Door For Villas Kitchen
View Specifications
Modern Design Sliding Patio Door System Exterior Flush Aluminum Alloy Double Glazing Tempered Glass Waterproof Kitchen Door
View Specifications
Superhouse Thermal Break Exterior AS2047 Certificated Aluminum Windows for Kitchen & Home Bar White Aluminum Awning Window
View Specifications
Custom Frosted Glass Shower Doors Single Swing Interior Water Resistant Modern Aluminium Bathroom Door
View Specifications
Luvindow As 2047 Customized Folding Glass Thermal Break Aluminum Awning Window for Residential Homes
View Specifications
New YIJIA Back-up Type Electric Heating Aluminum Alloy Glass Door Eco-Friendly Easy Installation Commercial
View Specifications

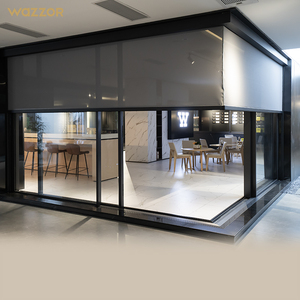

Wazzor Energy Efficient Aluminum Sliding Doors With Tempered Glass Frameless Patio Balcony Spaces Aluminum Sliding Door
View Specifications180,000㎡
Integrated Industrial Base
25+
Years R&D & Engineering Mastery
100+
Patents & Global Certifications
≤0.78
Ud Value Thermal Capability (W/m²K)
Engineering Oversized Pivot Doors for the Alpine Environment
Specifying aluminium pivot front doors in the Republic of Austria demands rigorous compliance with the Austrian Institute of Construction Engineering (OIB Richtlinie 6: Energieeinsparung und Wärmeschutz). The Austrian climate features intense seasonal temperature deltas ranging from severe Alpine sub-zero winters in regions like Tyrol, Salzburg, and Carinthia down to -20°C, to high summer thermal radiation in Vienna and Lower Austria reaching +38°C.
DERCHI's engineering protocols solve the primary technical risk inherent to oversized architectural pivot doors: the bi-metal deflection effect. When exterior aluminium leaf faces expand under intense solar radiation while the interior face remains at a climate-controlled 21°C, conventional pivot doors experience bowing, compromising perimeter gasket compression and air-tightness. Our multi-chamber architectural profiles integrate multi-axis mechanical decoupling through patented anti-distortion thermal isolation bars (reinforced polyamides PA66 GF25), ensuring zero sash warpage, air permeability exceeding EN 12207 Class 4, and driving overall heat transfer down to certified Passivhaus levels.
| Performance Standard | Austrian Code Requirement (OIB) | DERCHI Pivot Door Specification | Architectural Verification |
|---|---|---|---|
| Thermal Insulation (Ud) | ≤ 1.20 W/(m²K) (EnEV/OIB-6) | 0.72 - 0.85 W/(m²K) | Triple aerogel core + warm-edge argon glazing |
| Burglary Resistance (EN 1627) | RC2 Recommended for detached villas | Certified RC3 / RC4 Capable | 5-point motor-driven multi-locking hooks & P6B glass |
| Air Permeability (EN 12207) | Class 3 minimum | Class 4 (Maximum achievable) | Integrated quad-compression continuous drop seals |
| Watertightness (EN 12208) | Class 7A / 9A | Class E900 (900 Pa pressure) | Internal concealed cascading gutter drainage systems |
| Wind Load Deflection (EN 12210) | Class C3 | Class C5 (≤ 1/300 deflection) | Internal structural carbon-steel reinforcement core |
Architectural Case Studies
Localized Applications Across Austrian Terrains
From contemporary urban residences in Vienna to exposed alpine chalets in Kitzbühel, our doors meet strict aesthetic and physical site requirements.
Alpine Chalets & Mountain Villas (Tyrol & Vorarlberg)
Subjected to heavy wind-driven snow loads and severe cold cycles. DERCHI supplies integrated thermal-break floor sub-sills with concealed electric tracing cables preventing perimeter ice damming, paired with concealed heavy-duty hydraulic pivots handling sash weights up to 500 kg effortlessly.
Modern Urban Villas & Penthouses (Vienna & Graz)
Demanding large daylight openings and monolithic architectural scale. Floor-to-ceiling pivot leaves reach dimensions up to 2.2 meters wide by 4.0 meters high, finished with architectural Tiger Drylac fluorocarbon powder coatings matching strict municipal zoning aesthetics.
Lakeside Estates (Wörthersee & Salzkammergut)
Vulnerable to persistent freshwater moisture, seasonal wind storms, and high UV exposure. Advanced anodized finishes (qualicoat seaside class) protect external architectural panels against oxidation while acoustic glazing units decouple water-surface environmental resonance up to 45 dB.
Market Dynamics 2025–2030
Key Market Drivers Shaping Austria's Entrance Door Sector
1. Stricter Passivhaus Modernization
With Austrian subsidies for deep thermal renovations (Sanierungsbonus), replacement doors must provide verified certifications proving U-values below 0.8 W/m²K, directly benefiting DERCHI's multi-barrier thermally broken systems.
2. Smart Home & Biometric Integration
Austrian homeowners are shifting rapidly away from physical keys to motorized electro-mechanical locking systems compatible with KNX, Loxone, and Ekey biometric fingerprint or 3D facial recognition systems integrated seamlessly into our pivot leaves.
3. Monolithic Minimalist Design
Architects in Vienna and Graz increasingly demand seamless flush exterior planes where the pivot sash integrates invisibly into rainscreen facade panels, demanding extreme industrial precision in profile extrusion and hinge tolerance.
Why Partner With DERCHI
World-Class Manufacturing Excellence Built on Foshan Precision
Combining the scale of China's top-tier aluminium architectural manufacturing with strict European engineering tolerances.
180,000㎡ Production Scale
Massive automated CNC milling lines, automated powder coating bays, and comprehensive assembly facilities in Foshan, delivering cost efficiency without compromising detail.
25+ Years R&D Experience
Over a quarter-century of continuous architectural window and door manufacturing, backed by more than 100 patents and recognition as a China Top-10 Door & Window brand.
Free CAD & BIM Drawings
Our dedicated engineering department drafts tailored structural CAD drawings, glass static stress reports, and connection details for Austrian architects and project estimators.
Alpine-Grade Export Crating
Reinforced non-fumigation plywood crates with multi-layer waterproof vapor wrapping and moisture absorbers prevent transit damage and thermal shocking during marine shipping to Hamburg or Koper.
Procurement Clarity
Frequently Asked Questions by Austrian Builders & Importers
Direct technical answers addressing standards, thermal guarantees, import procedures, and site installations.
How do DERCHI pivot doors meet Austrian OIB-6 insulation standards?
Our systems utilize 95mm–120mm deep profiles fitted with 34mm multi-chamber fiberglass-reinforced polyamide thermal insulation strips, vacuum-insulated aerogel core fillings, and certified argon-filled triple insulating glass units (Ug = 0.5 W/m²K). This design achieves total Ud values between 0.72 and 0.85 W/m²K, well within OIB requirements.
What hardware systems handle the dynamic loads of oversized pivot doors?
We partner with leading German and Italian hardware houses (such as Dormakaba and FritsJurgens) alongside our heavy-duty proprietary bottom concealed floor springs, certified for 500,000 opening cycles without degradation, handling leaf weights up to 600 kg with micro-adjustable closing speed and 90-degree hold-open functionality.
What documentation is provided for Austrian local building inspection (Bauabnahme)?
Every shipment arrives with a complete technical submittal dossier: CE Declaration of Performance (DoP) under EN 14351-1, verified laboratory test reports covering air permeability, wind load deflection, water tightness, acoustic ratings, and step-by-step installation manuals aligned with Austrian ÖNORM B 5320 standards.
What are the freight lead times and logistics routes from Foshan to Austria?
Production cycles typically take 25 to 35 working days following signed CAD drawing approval. Ocean shipping from South China ports (Nansha/Yantian) to the European seaports of Hamburg, Rotterdam, or Koper (Slovenia) averages 28 to 32 days, with seamless rail freight forwarding directly into Austrian regional distribution centers.
Plan Your Austrian Architectural Project With Our Senior Engineers
Submit your opening schedules, thermal targets, and architectural elevations. Our technical desk will deliver compliant CAD specifications, thermal static reports, and factory-direct pricing within 24 hours.
