Engineered Fenestration Solutions for the Berlin Market
Balancing historical aesthetic continuity in Berlin’s Gründerzeit Altbau apartments with cutting-edge German EnEV/GEG Passivhaus energy conservation. Below are our verified export profiles designed for prime European residential, civic, and commercial installations.

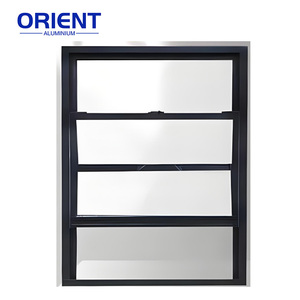

Vertical Sash
Double Hung Custom Aluminum Double Pane Windows
Heritage Wood-Alu
Climate Defense Aluminum Clad Wood Windows
Single Hung Grille
High Thermal Break Double Glass Sliding Windows
Bespoke Geometry
Custom Geometric Double Glass Modern Solution
Sunroom System
Prefabricated Heavy Duty Solarium Enclosure
Balcony Glazing
Two-Panel Side By Side Tempered Sliding Door
Accordion Folding
Waterproof Patio Double Glass Accordion Bifold Doors
NFRC Certified
NFRC Brown Aluminum Vertical Sliding Sash Window
Engineering Aluminum Vertical Sliding Windows for Berlin’s Urban Fabric
Navigating Germany's strict Gebäudeenergiegesetz (GEG), Berlin’s municipal Denkmalschutz (historic preservation) guidelines, and dense urban noise corridors requires an advanced structural and thermal approach to vertical sliding fenestration.
Altbau Renovation & Denkmalschutz Compliance
Throughout Berlin districts such as Charlottenburg, Prenzlauer Berg, and Mitte, classical 19th-century residential structures (Gründerzeit) showcase towering vertical window openings. Historical preservation authorities frequently mandate the aesthetic preservation of vertical sash dynamics and slender sightlines. Our thermally broken aluminum vertical sliders recreate authentic historic aesthetics, complete with authentic exterior astragal bars (Wiener Sprossen), while replacing drafty historical box-casements with airtight, high-efficiency systems.
Noise Control for Berlin Transit Arteries
With over 1.5 million commuters navigating the S-Bahn Ringbahn, U-Bahn viaducts, and arterial roads like the B1 and B96, acoustic insulation is paramount for Berlin interior comfort. In accordance with DIN 4109 (Sound Insulation in Buildings), our vertical sliders integrate asymmetrical laminated glazing systems (e.g., 6mm VSG acoustic laminate + 16mm warm-edge spacer + 8mm toughened float glass), achieving sound insulation class 4 and class 5 ratings (Rw values exceeding 42 dB to 46 dB).
Gebäudeenergiegesetz (GEG) 2024 Thermal Benchmarks
The German Building Energy Act sets strict overall heat transfer coefficients (U-values) for building envelopes. To comply with GEG refurbishment thresholds (max Uw ≤ 1.30 W/(m²·K)) and KfW Efficiency House 40/55 standards (Uw ≤ 0.85 W/(m²·K)), our systems utilize multi-cavity 6063-T6 aluminum alloys fitted with continuous 24mm to 34mm polyphthalamide/polyamide PA66 GF25 thermal breaks and triple-pane argon-infused low-emissivity glass packages.
| Performance Standard | DIN / EN Test Method | Factory Export Specification | Berlin GEG & EnEV Requirement | Compliance Status |
|---|---|---|---|---|
| Thermal Transmittance (Uw) | DIN EN ISO 10077-1/-2 | 0.82 – 1.15 W/(m²·K) | ≤ 1.30 W/(m²·K) (Refurbishment) | Compliant / Exceeds |
| Air Permeability | DIN EN 12207 | Class 4 (600 Pa test pressure) | Class 3 or Class 4 | Certified Class 4 |
| Watertightness | DIN EN 12208 | Class 9A / E1050 (1050 Pa) | Class 7A to 9A (Wind zone 1 & 2) | Class 9A Standard |
| Wind Load Resistance | DIN EN 12210 | Class C5 / B5 (2000 Pa design) | Class C3 to C4 (Lowland inland) | Superior Structural |
| Acoustic Insulation (Rw) | DIN EN ISO 717-1 | 38 dB – 45 dB (SSK 3 to SSK 5) | DIN 4109 Noise Category III-V | Laboratory Tested |
| Operating Forces | DIN EN 13115 | Class 2 (≤ 100 N manual operation) | DIN 18040 Barrier-Free Guideline | Torison Balanced |
Key Fenestration Trends Across Berlin & Metropolitan Germany
The Berlin construction and development landscape is transitioning rapidly. Driven by decarbonization, circular building mandates, and acute urban living constraints, vertical sliding aluminum windows represent an increasingly lucrative alternative to traditional European tilt-and-turn (Dreh-Kipp) windows.
Spatial Efficiency in Micro-Apartments
With Berlin rental yields climbing and average square-meter space shrinking in projects across Friedrichshain, Kreuzberg, and Moabit, interior room utility is a core design constraint. Standard German inward-swinging tilt-and-turn sashes sweep across desk spaces, kitchen counters, and interior curtains. Vertical sliding windows operate entirely within their own plane, providing seamless continuous draft-free ventilation without encroaching on prime usable floor space.
Decarbonization & Circular Recycled Aluminum
The European Green Deal and German Federal Climate Change Act demand documented lifecycle carbon accounting (EPD - Environmental Product Declarations). Modern architects in Berlin favor aluminum for its infinite recyclability. Our Foshan extrusion lines integrate premium low-carbon aluminum billets, using renewable hydro-electric primary smelting and closed-loop scrap recovery that reduces embodied carbon per kilogram by up to 65% compared to coal-powered smelters.
Concealed Motorization & Smart Building Integration
Commercial retrofit projects in Berlin-Brandenburg tech hubs (such as Adlershof and Silicon Allee) require centralized Building Management System (BMS) integration. Our vertical sliding window systems can be pre-configured with concealed 24V linear actuators, rain sensors, and KNX/BACnet automation protocols, enabling night-time automated purge ventilation to cool building thermal masses efficiently during hot summer months.
Why European Developers & General Contractors Rely on DERCHI
Operating out of Guangdong Dejiyoupin Doors and Windows Co., Ltd. in Foshan, China, DERCHI combines 25+ years of specialized fenestration manufacturing with global ISO 9001 and CE certifications, bridging European engineering standards with unmatched production scale.
180,000 m² Precision Production Ecosystem
Our multi-facility manufacturing park in Foshan features fully automated German Elumatec CNC profile machining centers, robotic gasket insertion lines, and computerized glass cutting and insulating stations capable of executing multi-container commercial volumes on strict schedule.
Complete CAD / BIM Shop Drawing Services
Before metal cutting begins, our in-house engineering squad provides complete, localized bilingual CAD shop drawings, connection detail schematics, anchor point calculations, and Revit BIM models to facilitate seamless approvals with German structural Prüfingenieure.
Tier-1 German & International Hardware
We partner directly with leading balance and hardware fabricators, pairing heavy-duty American Caldwell constant force spiral balances with German Siegenia, Roto, or HOPPE architectural handles and multi-point perimeter compression interlocks to guarantee lifetime fluid operation.
Strict In-House Test Laboratory
Every window series undergoes rigorous multi-chamber testing on our factory test rigs in accordance with DIN EN 14351-1, verifying wind resistance (up to 3000 Pa cyclic loading), air infiltration resistance, and dynamic water spray under simulated heavy gale-force storm conditions.
Export Packing & Ocean Freight Logistics
All units are protected with peelable protective film, wrapped in moisture-barrier EPE foam, and crated in fumigated solid plywood cases reinforced with steel strapping. Direct container loading from Foshan ports (Nansha/Yantian) provides streamlined 28-day transit directly into Hamburg port.
Comprehensive Quality Warranty
Backed by over two decades of international brand pedigree and 100+ patents, our products carry a comprehensive 10-year structural warranty on aluminum profiles and surface finishes (Qualicoat Class 2 / Anodized 25μm) and a 5-year hardware replacement guarantee.
Frequently Asked Questions for Importers & Contractors in Berlin
Clear, definitive answers to technical, regulatory, logistics, and certification queries common among German property developers, architects, and facade contractors.
