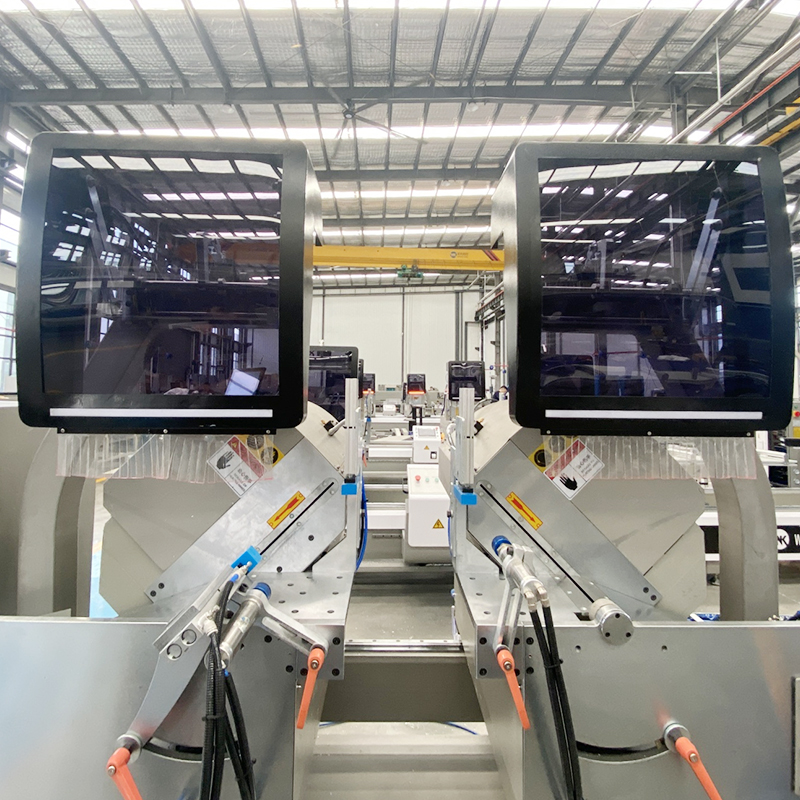

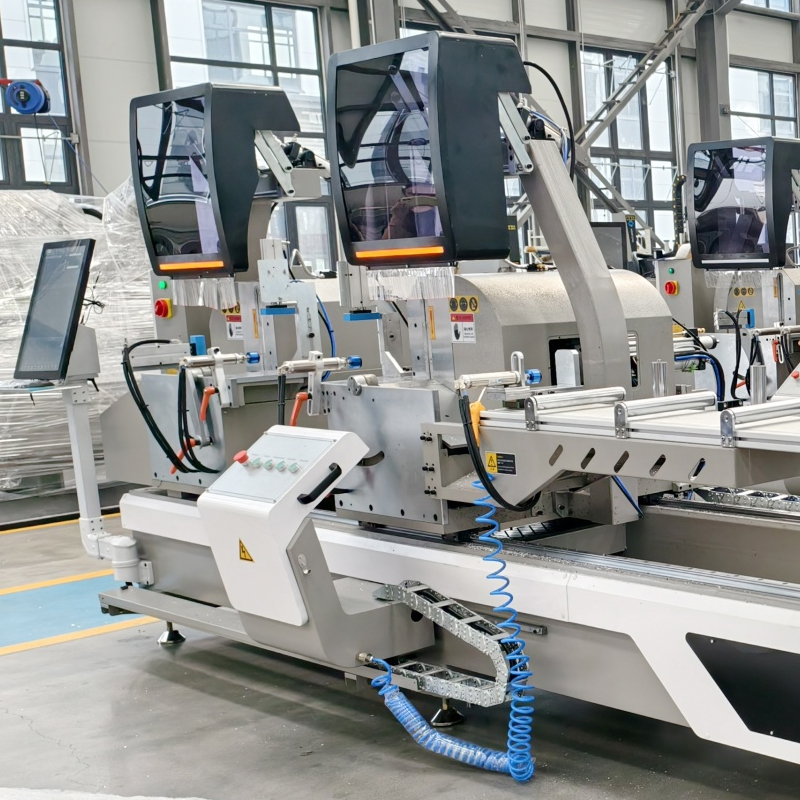

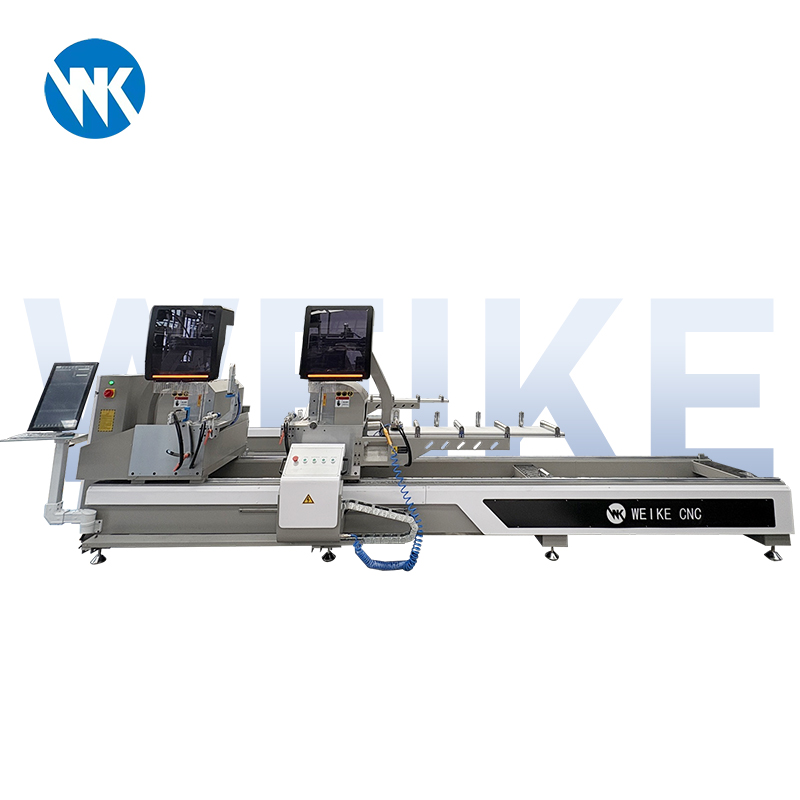

Window Making Machine Factory 2 Head 45° Inward Swing Cut Machine CE Certified Aluminium windows and Doors Fabrication Machines
Product Description
Specification
✓
The machine's flip-over structure is molded as a whole, ensuring it will not deform.
✓
Automatic lifting protective cover ensures a safe working environment.
✓
Features memory positioning, eliminating the need to return to the origin when starting up, ensuring accurate cutting of profile lengths. Supports data import from door and window optimization software.
✓
Automatic data printing function allows for immediate output of relevant cutting data after the cutting operation is completed, saving time and improving overall efficiency.
✓
Tail material avoidance function ensures the saw avoids the leftover material during return, extending the life of the saw blade.
✓
Metal explosion-proof joints are more durable compared to plastic ones, ensuring stable and reliable operation even in harsh environments.
✓
Three automatic lifting material racks can quickly and accurately adjust to the required height, reducing manual adjustment time.
✓
Bottom adopts a sloped design, facilitating the collection of aluminum shavings and improving cleanliness.

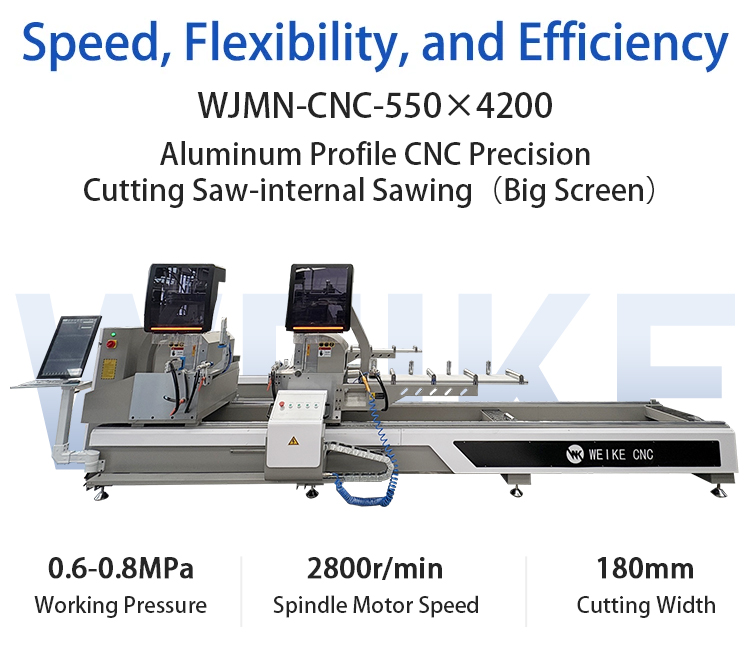

| Model | WJMN-CNC-550×4200 |
| Power supply | 380V/50Hz |
| Spindle motor speed | 2800r/min |
| Cutting Length | 350mm (Ultra short material) - 8000mm |
| Cutting Width | 180mm |
| Cutting Height | 45°: 200mm / 90°: 280mm |
| Sawing angle | 45/90 Degree |
| Dimensions | 5800×1500×1700mm |
| Control system | CNC |
| After-sales service provided | Engineers available to service machinery overseas |
Control System
Adopting Delta CNC system and equipped with 21.5-inch display screen. It can establish connection modules with drilling and milling machines, end milling machines, etc. The system displays cutting information and features nesting functionality to achieve optimization of cutting lists. Supports code scanning processing, scanning from cloud, or data import via USB flash drive.

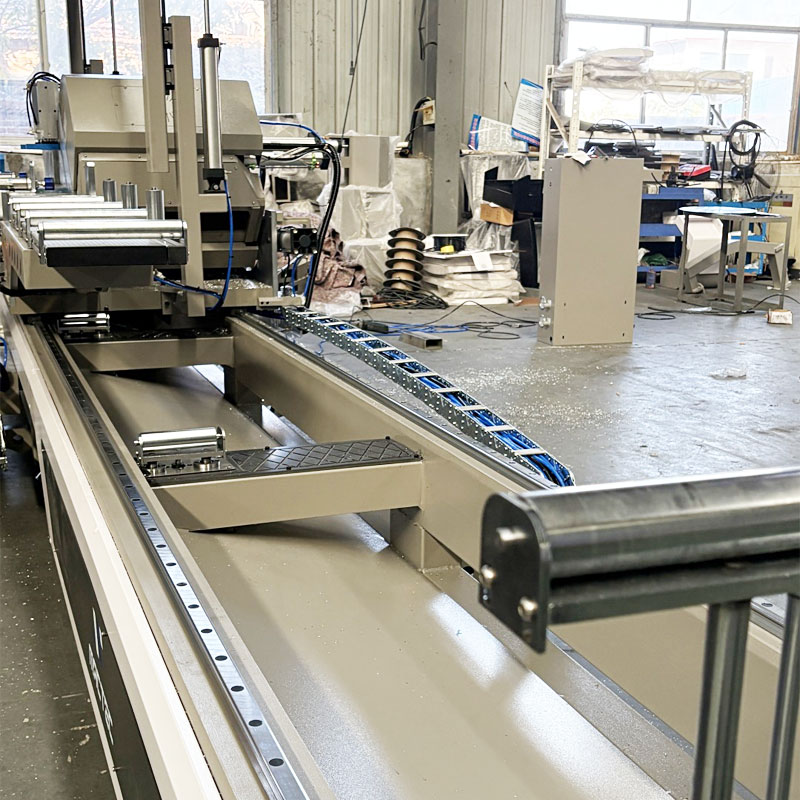

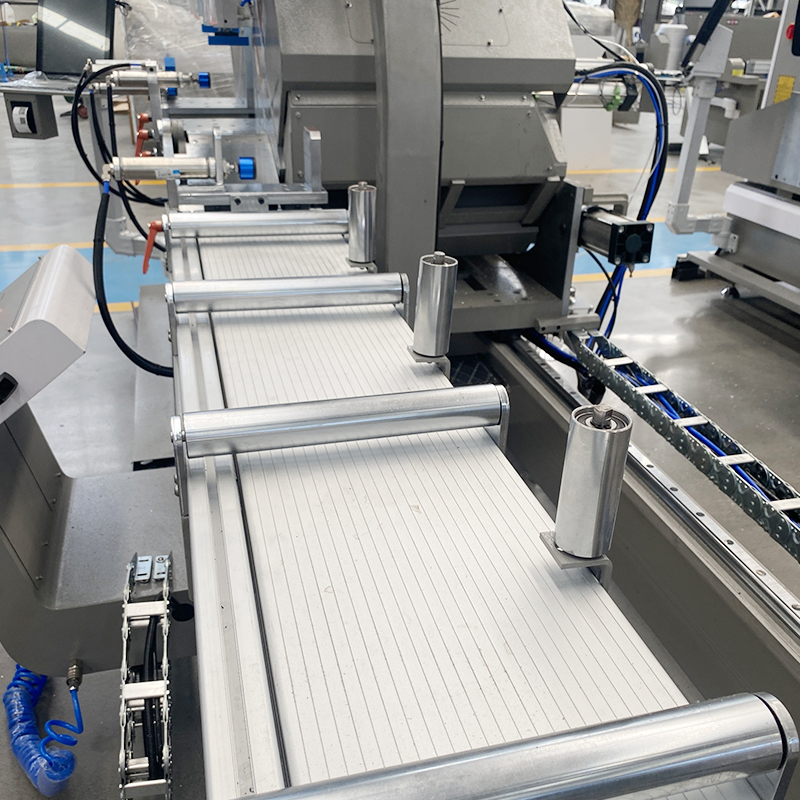

Automatic Lifting Function
Three automatically rising pallets can be quickly and accurately adjusted to the required height, reducing manual adjustment time and thus improving work efficiency.

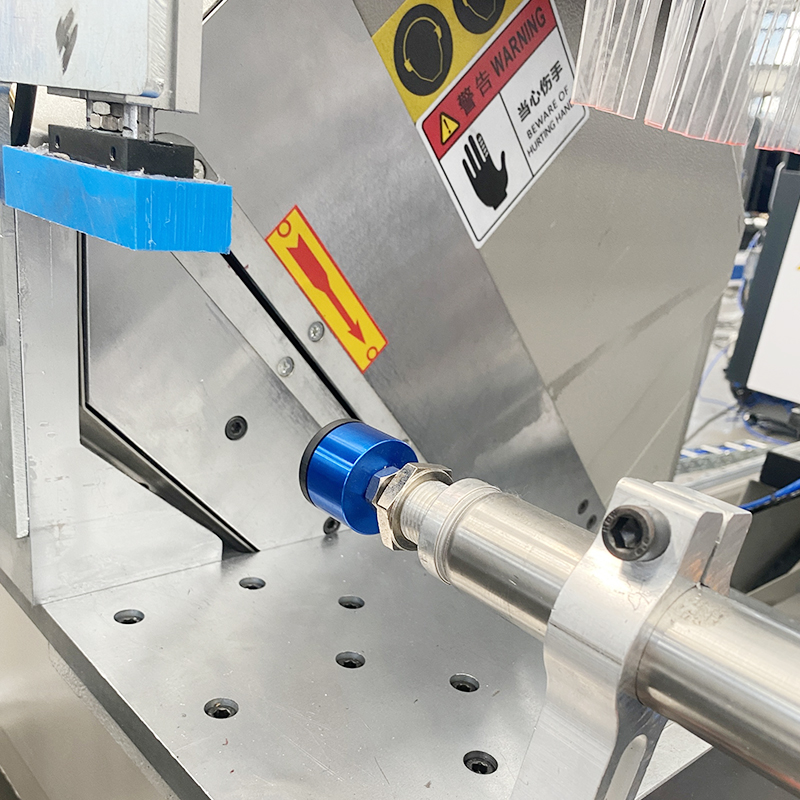

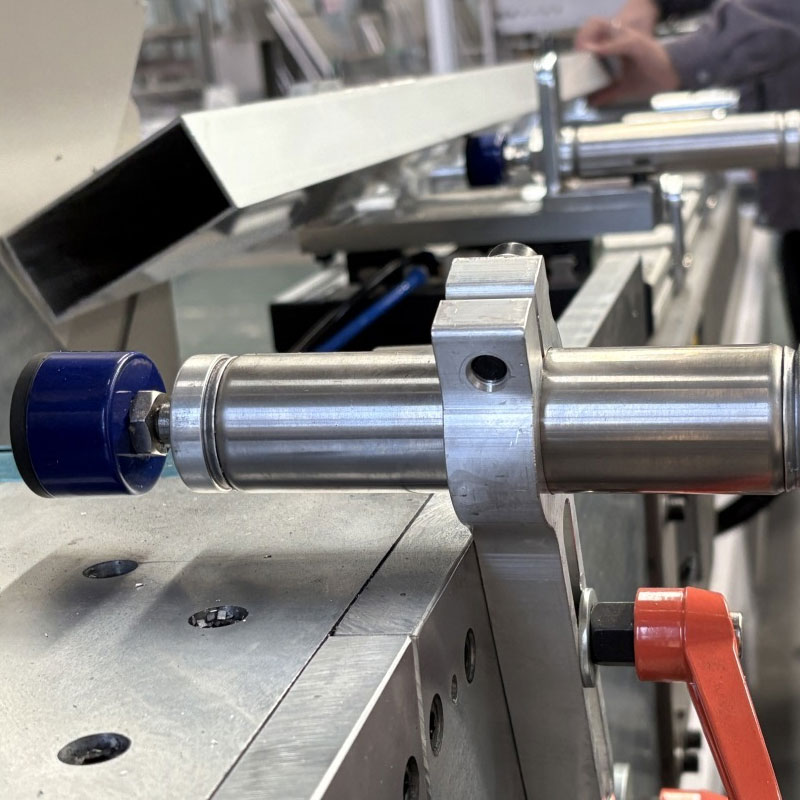

Cylinders and pressing heads
Rubber Aluminum Pressing Head, has good corrosion resistance and can prolong the service life.
Customer and Exhibition Photos

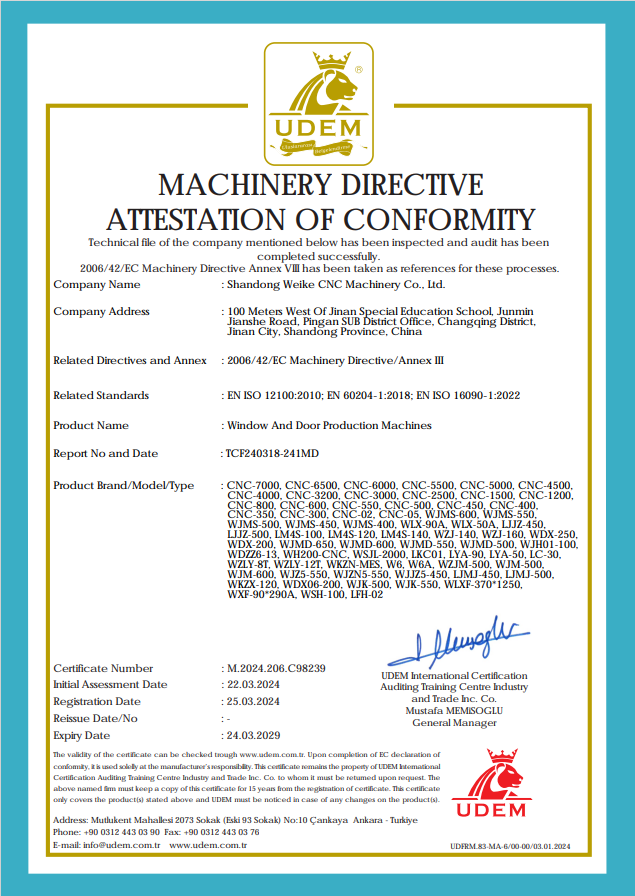

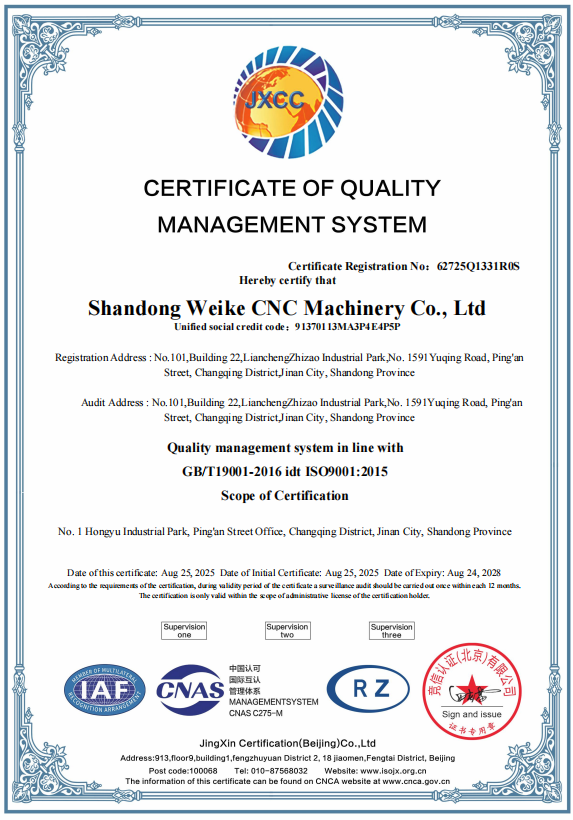

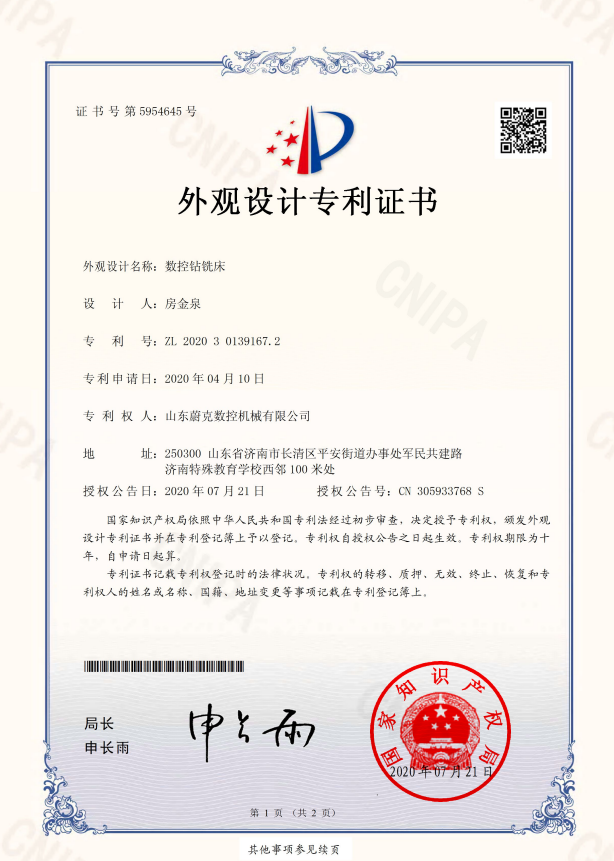

Certificates

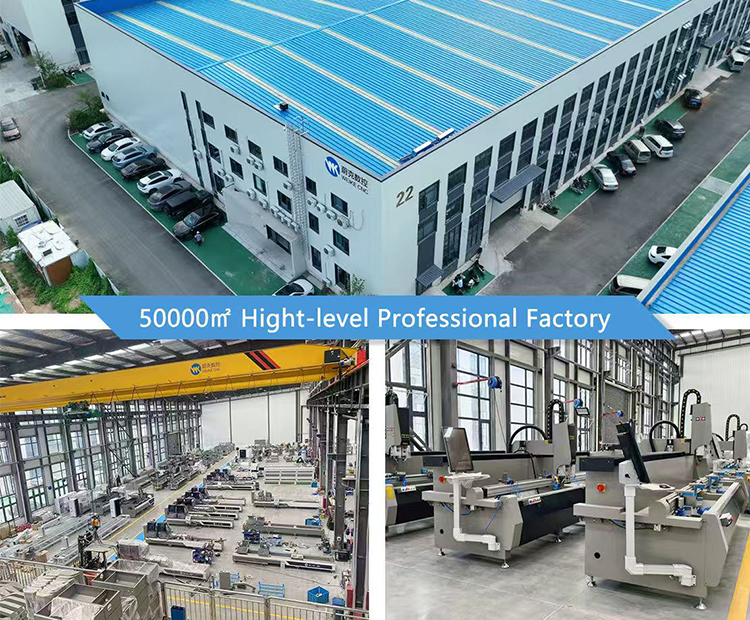

Factory Introduction
Shandong Weike CNC Machinery Co., Ltd. is a well-known manufacturer specializing in the research, development, production and sales of aluminum doors, windows and curtain wall equipment in China. It is the most large-scale and industrialized production enterprise in the industry. We have a large production workshop and strong mechanical processing supporting capabilities, high-quality scientific research team and high-tech production team. We have strong research and development strength, perfect product system, and insist on independent innovation to improve products scientifically and practically. The company has several offices in China, forming a one-stop comprehensive service system integrating product development, production, sales and service.
After Sale Service Introduction
01
3-Year Warranty: Provide a full range of technical support for life.
02
Lifetime Online Support: Available Monday to Sunday, 9am to 18pm. Experienced technicians guarantee online support (via WhatsApp, Skype, WeChat, Email), ensuring seamless communication without time difference concerns.
03
Local After-Sales Service: Up to 2024, on-site services have been provided to more than 50 countries and regions including Canada, Mexico, the United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia, and more.
Packing & Delivery
- Whole film packaging mitre saw cutting machine
- Anti-collision package edge
- Fumigation-free plywood wooden box and pallets with iron binding belt
Frequently Asked Questions
QHow to install and run the machine?
Our technicians pre-install the machine before shipping. For small components, we supply detailed training videos and a comprehensive user manual. Over 95% of our clients operate the system independently without difficulty.
QWhat should I do if the machine encounters a malfunction?
Please reach out immediately and avoid self-repair attempts. Our technical team responds within 24 hours to troubleshoot, diagnose, and resolve issues effectively.
QWhat customized services do you offer?
As an authentic direct manufacturer with dedicated production facilities, WEIKE CNC provides full OEM and ODM customization services tailored to specific production line requirements.
QWhat is the scope of your warranty and support?
We offer an extensive 3-year warranty alongside lifetime technical guidance. Support is accessible via WhatsApp, Skype, WeChat, and email across major time zones.
QAre overseas dispatch services accessible for maintenance?
Yes, our engineering personnel are qualified for international deployment. We have established on-site technical support footprints across over 50 countries worldwide.
QHow is the equipment secured for international transit?
The equipment undergoes multi-layer protection including full-cover protective film, impact-resistant edge protectors, and packaging in export-grade fumigation-free wooden crates secured with steel banding.
