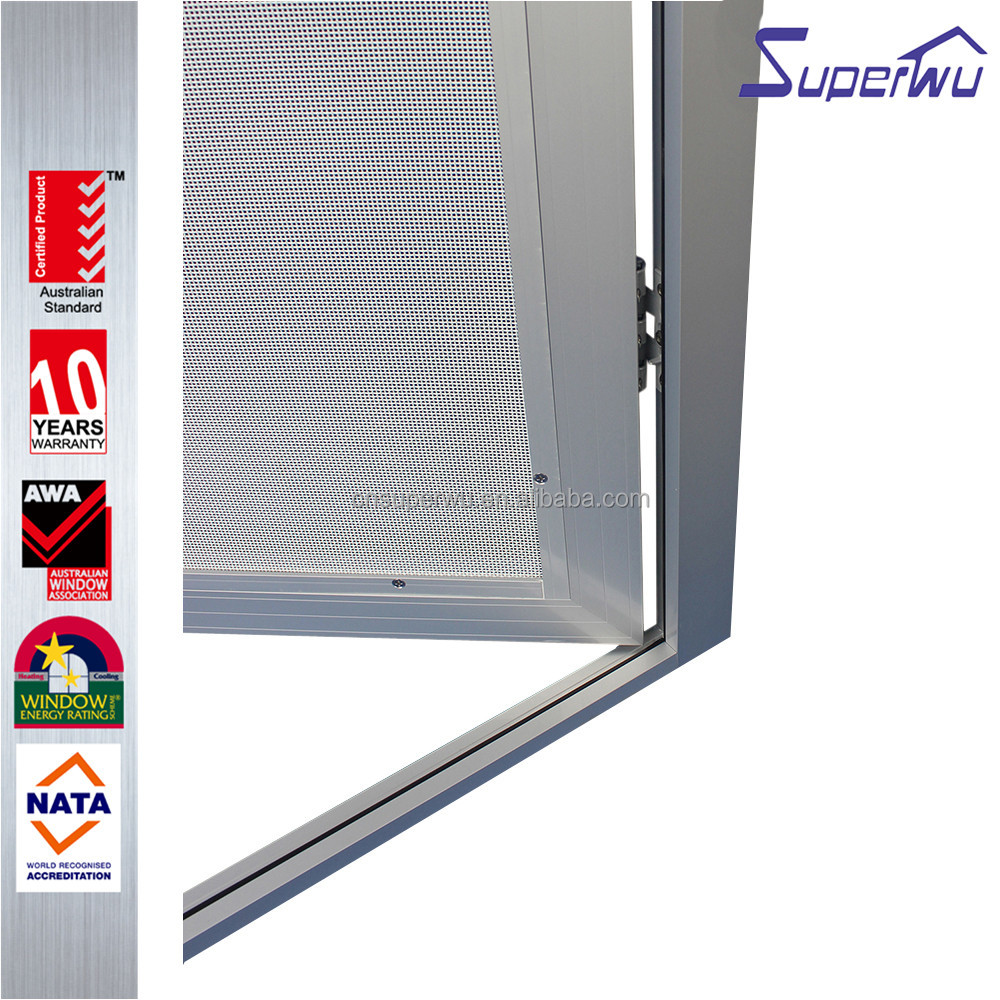

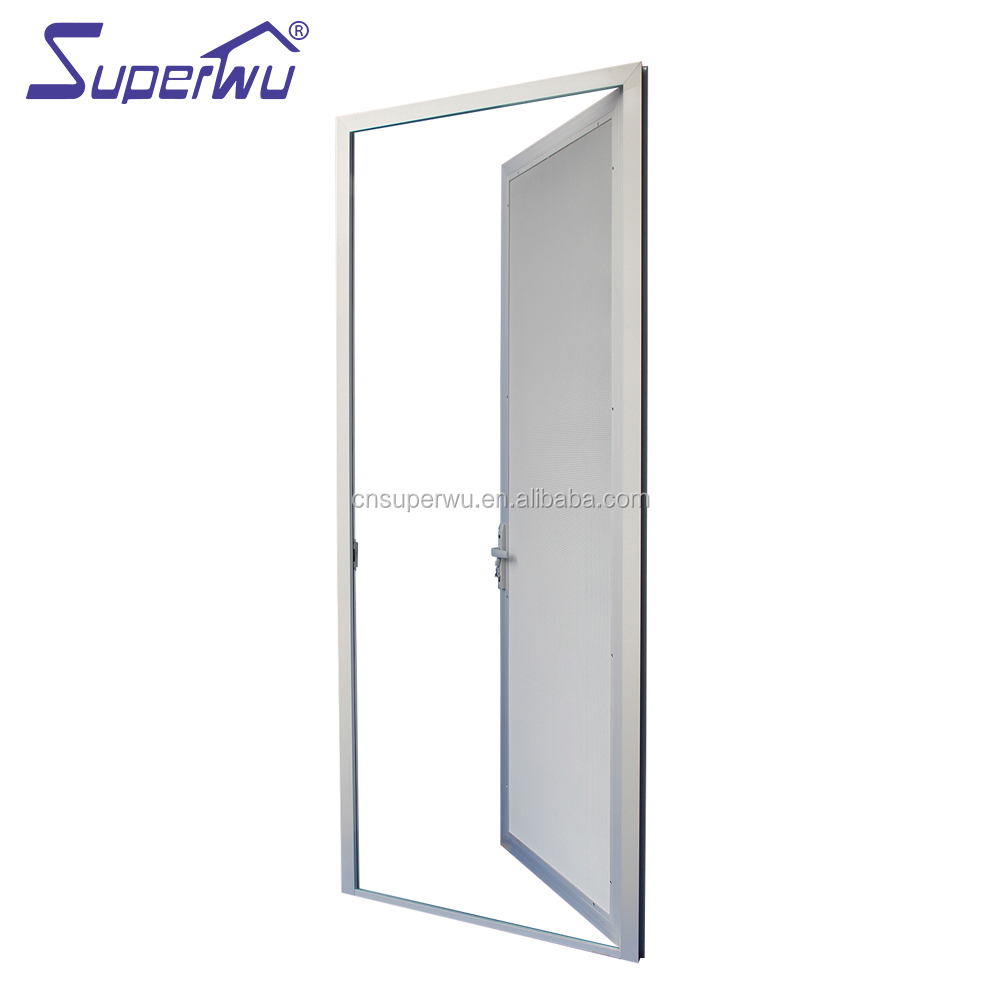

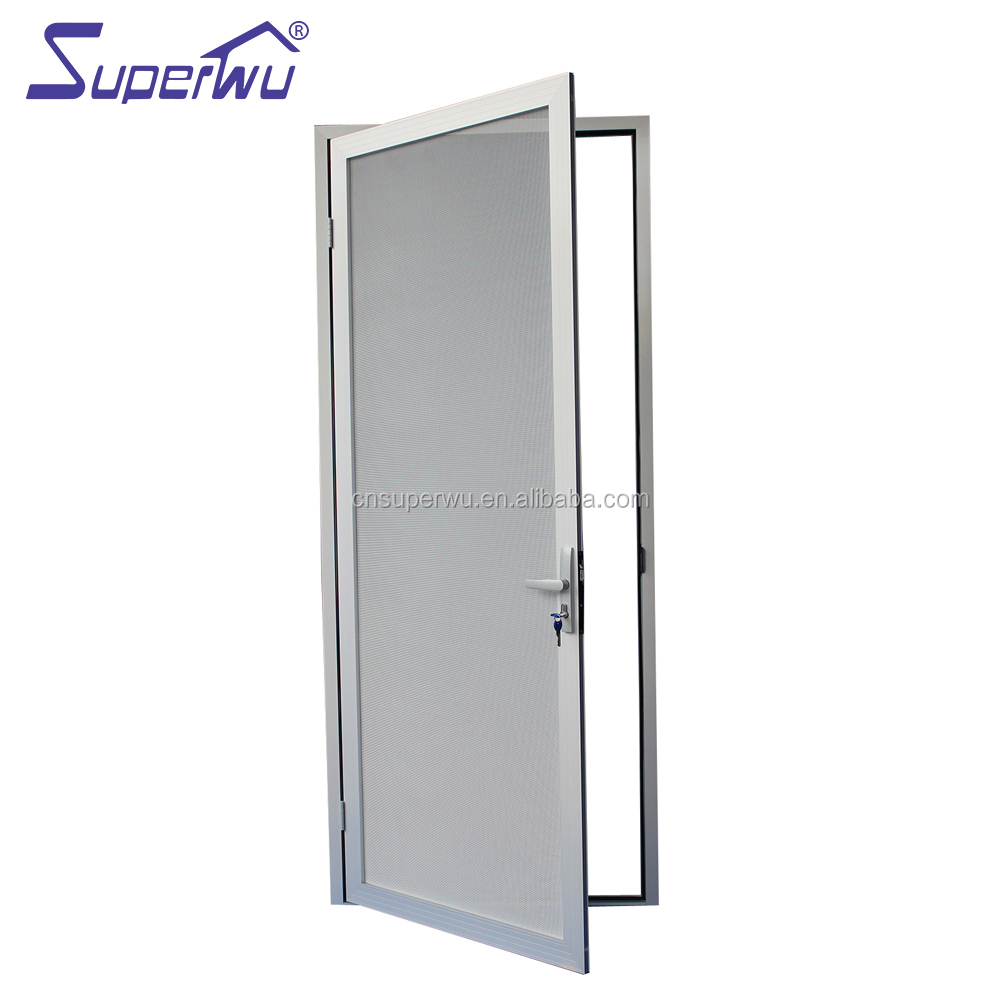

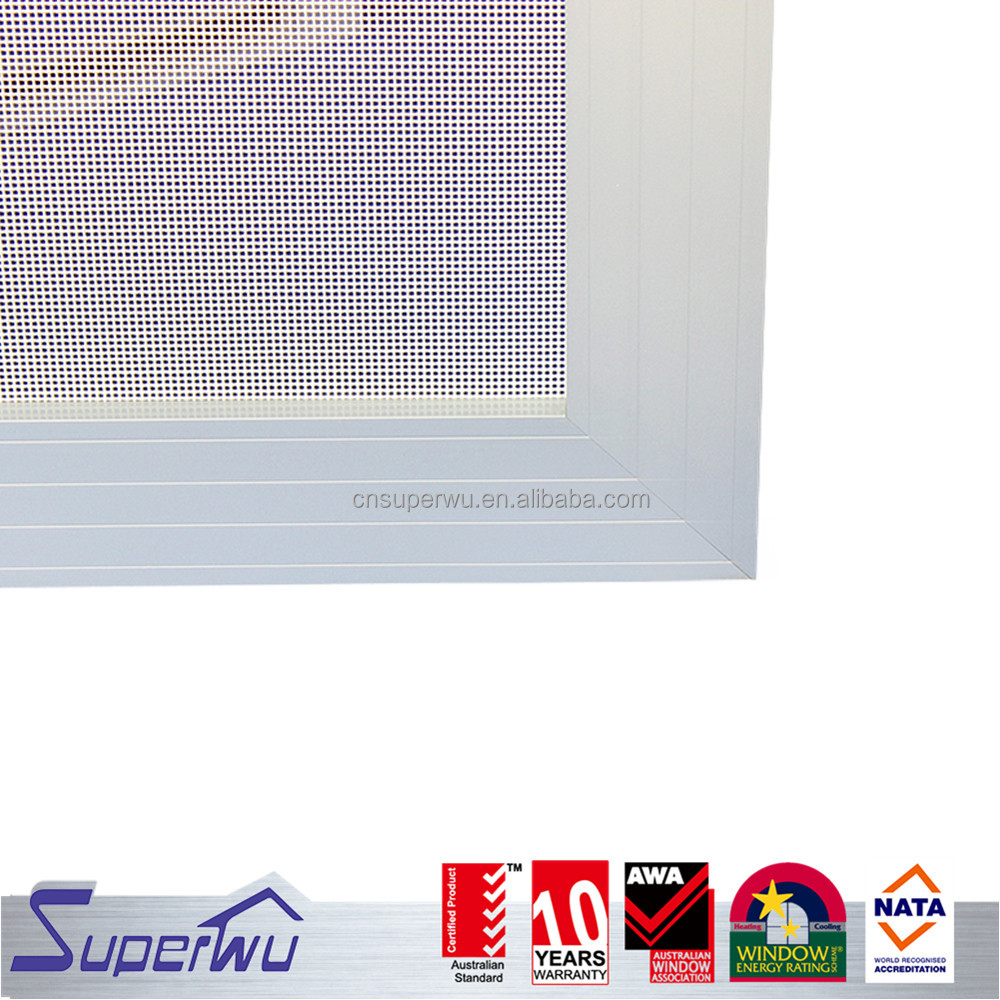

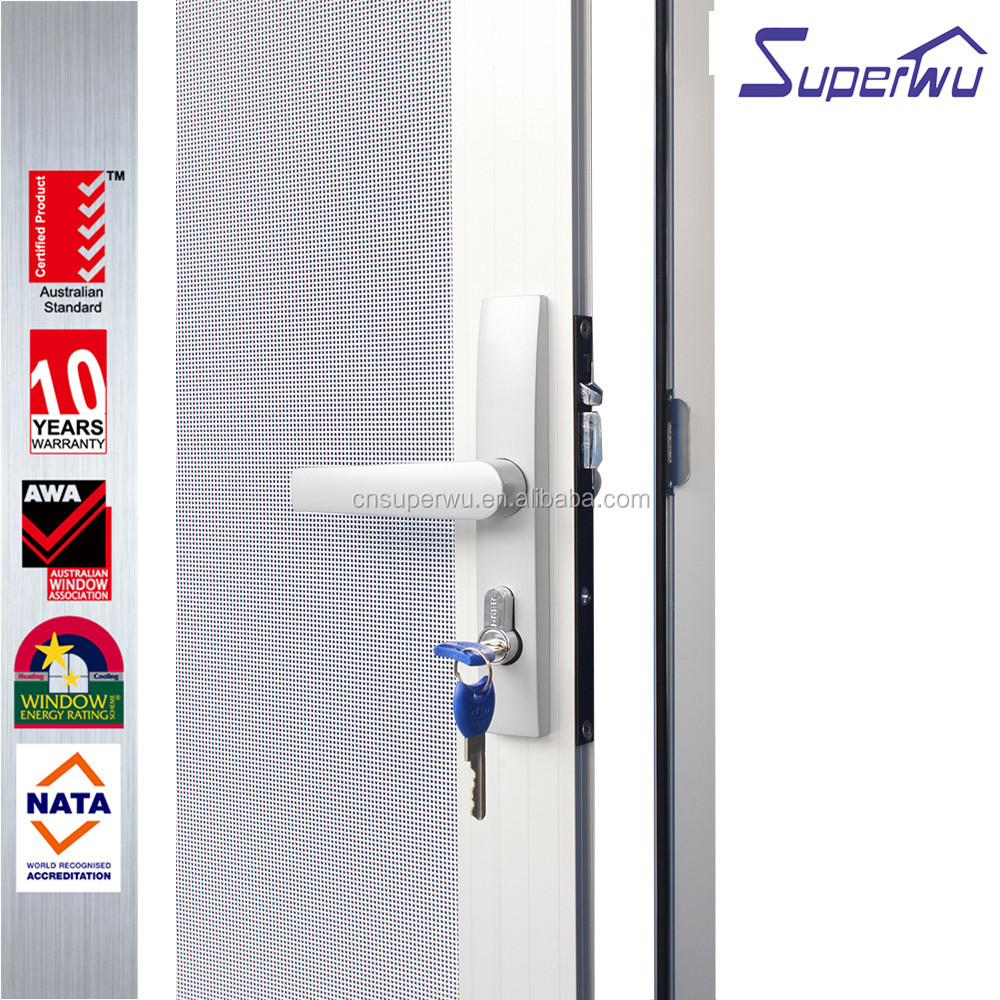

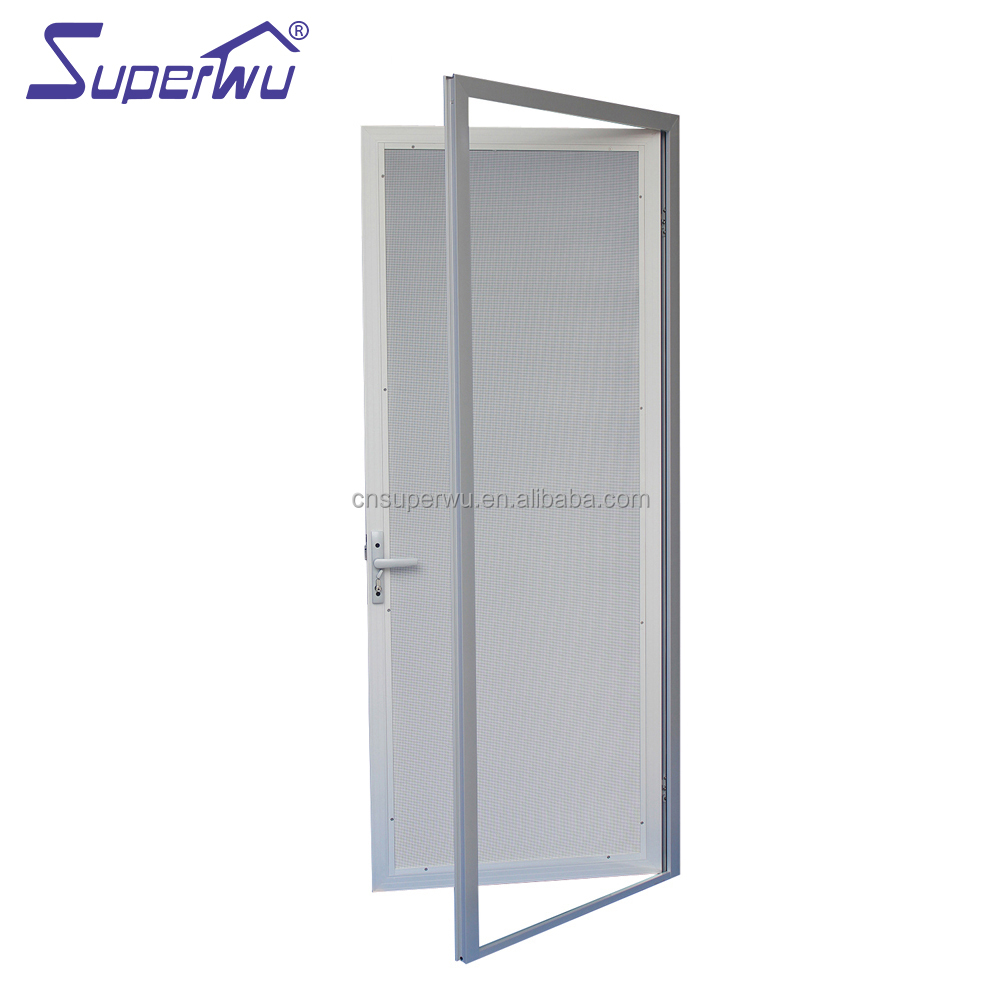

Silvery Aluminum Stainless Steel Mesh Hinged Door As Security Door
Product Description
Product Overview
Features & Specifications
SP86, SP100, SP130, SP150 series available for housing, residential, commercial, and luxury villas
Grill and fly screen options available
Easily removable flyscreen for effortless cleaning
Integrated timber reveal for simple and fast installation
Fin flat angle suitable for double brick building systems
High tensile stainless steel mesh for optimal security
Aluminum net compatible with bush fire systems
Double chain mechanism engineered for heavy-duty operation
Auto controller configured for elevated, hard-to-reach installations
Glass options accommodate thicknesses from 6.38mm up to 19mm
Laboratory tested & NATA certified to comply with Australian Standards AS2047 & Canada Standard
Acoustic rating up to STC 39; WERS energy-rated options available
Tested Performance Data
Standard AS4420 Test Compliance
- Deflection Test: Serviceability design wind pressure (3000 Pa) | Rating: N6 (General)
- Air Infiltration Test (AS4420.4-1996): +75 Pa: 0.63 L/s·m²; -75 Pa: 0.80 L/s·m² | Average Air Leakage Rate: 0.7 L/s·m²
- Water Resistance Test (AS4420.5-1996): Test Pressure: 900 Pa
- Ultimate Strength Test (AS4420.6-1996): Test Pressure: 4500 Pa | Rating: N6 (General)
Product Specifications
| Profiles |
|
|---|---|
| Glass Options |
|
| Hardware |
|

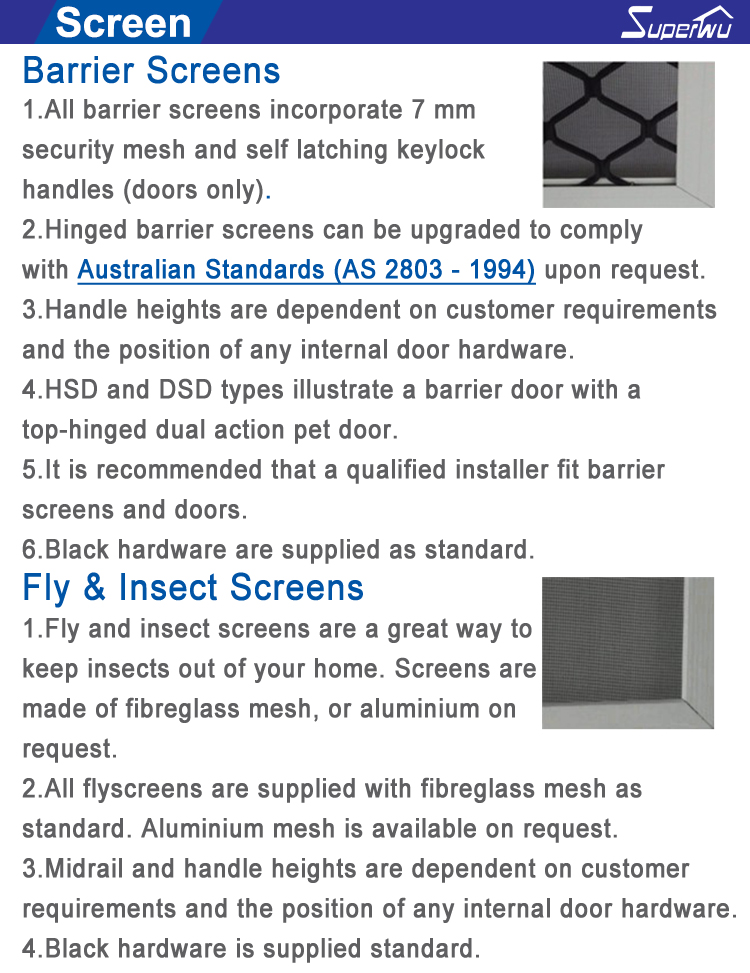

| Mesh Types |
|
| Surface Finish |
|

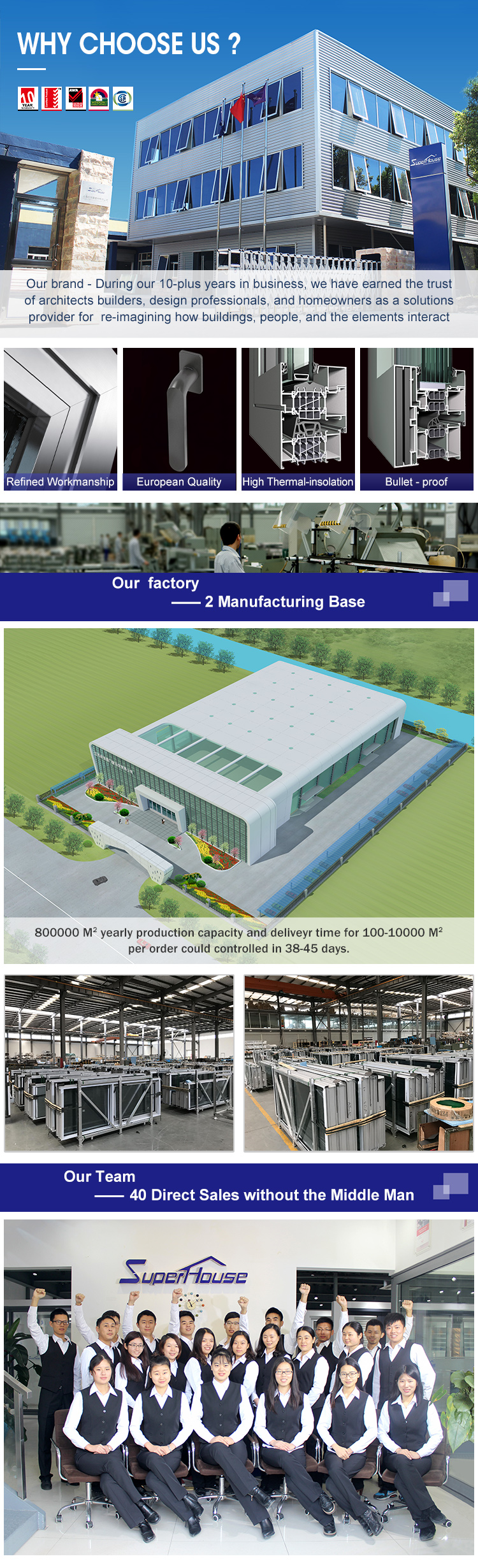

Manufacturing Capabilities
Superwu is a specialized manufacturer of aluminium doors & windows, UPVC doors & windows, aluminum composite wood windows, aluminium handrails, and shutters, located in Shanghai, China. Enjoying convenient transportation, our company occupies an area of 4,000 square meters with 80 dedicated staff. We are equipped with advanced profile cutting and welding machinery, yielding an annual production capacity of 100,000 square meters.
With 100% of goods manufactured for export, our primary markets include Australia, the USA, and Canada. Our products hold wide acclaim internationally, strictly compliant with Australian Standard AS2047. Comprehensive quality control is implemented at every stage—from material sourcing and processing to testing and packaging. Guided by our tenet "Client first and Superwu for a super life," we warmly welcome clients to collaborate with us.
Qualifications & Certifications
- Member of Australian Window Association (AWA) guaranteeing a comprehensive 10-year warranty.
- Fabrication of aluminium windows and doors compliant with AS2047 standards.
- Accredited member of the Window Energy Rating Scheme (WERS).
- Equipped with an Australian Standards-compliant workshop, audited annually by the Australian Window Association.
- Utilizes premium raw materials to guarantee consistently superior finished products.
- Over 10 years of manufacturing excellence and international exporting experience.
- Dedicated showroom located in Sydney, ensuring local accessibility and client service satisfaction.

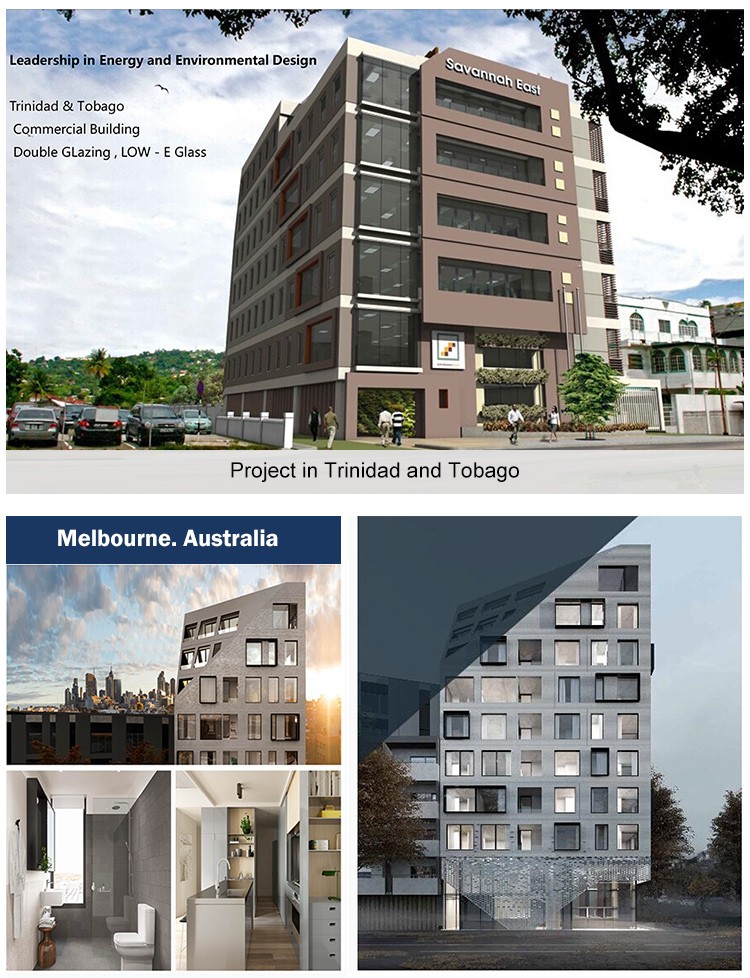

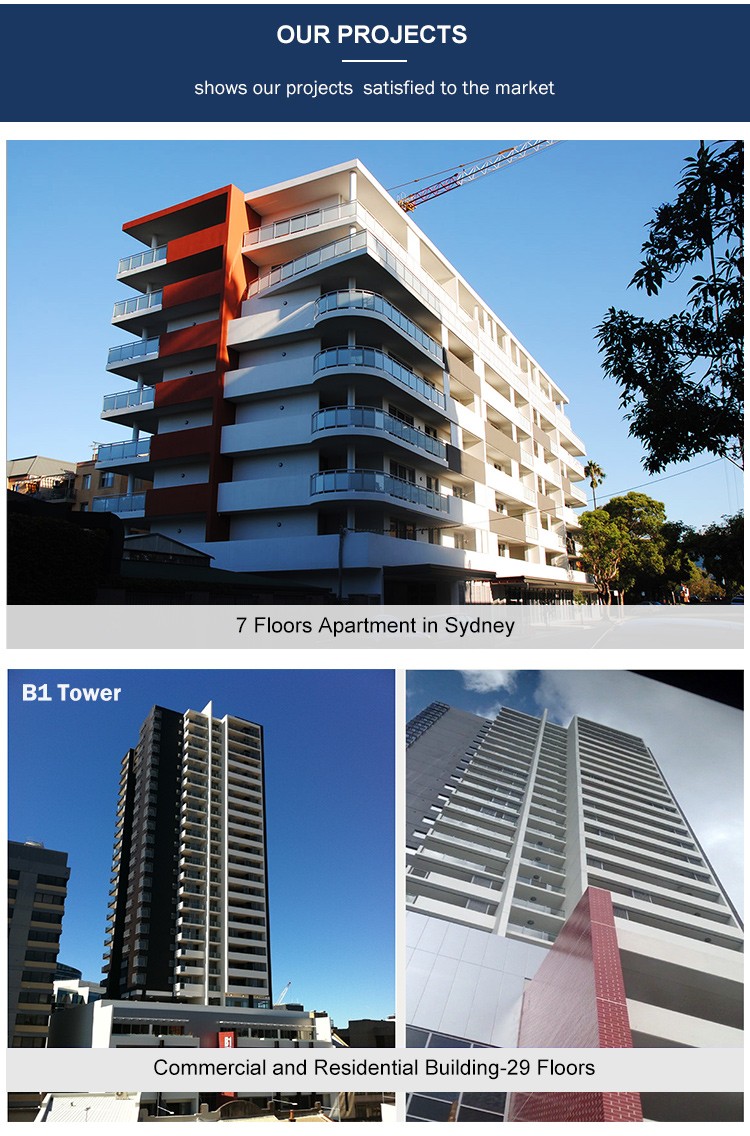

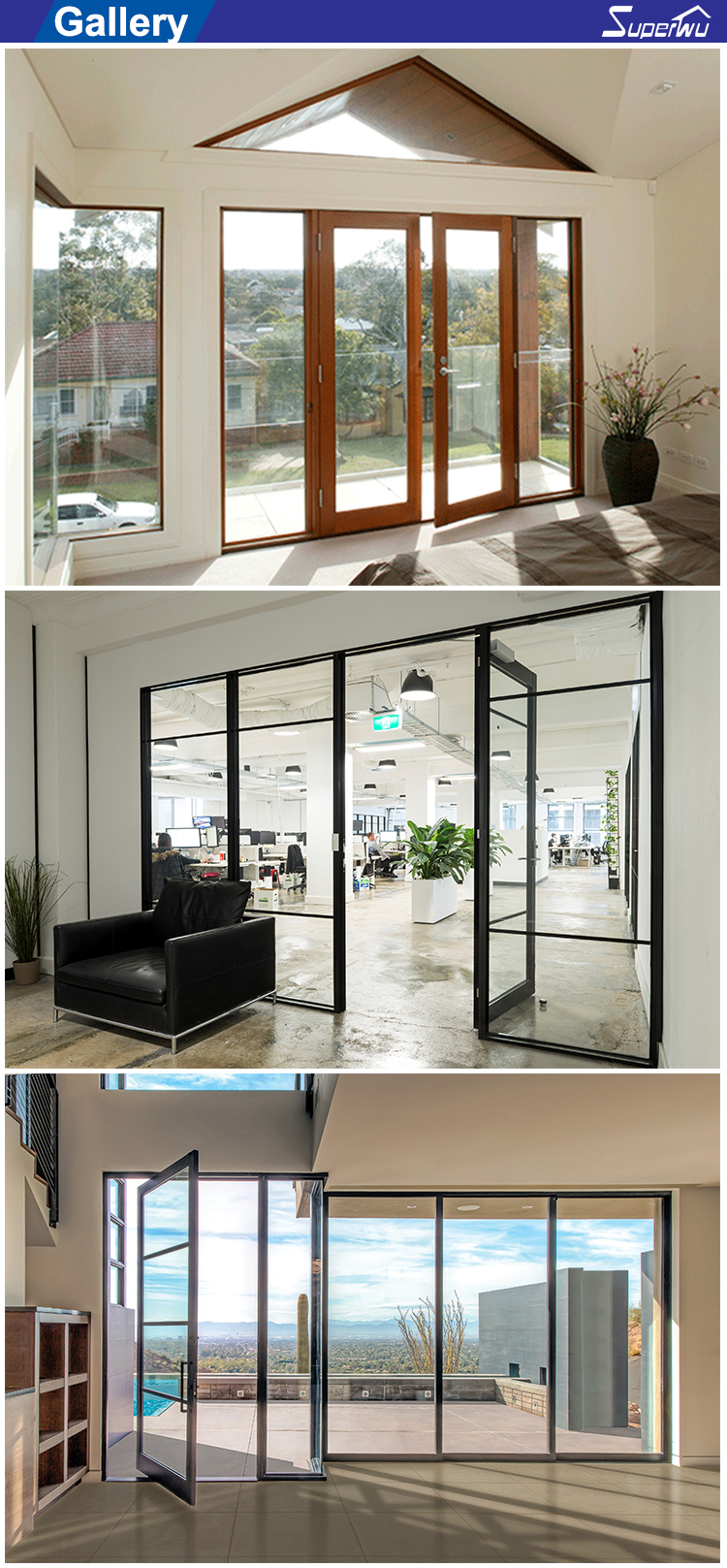

Project Gallery

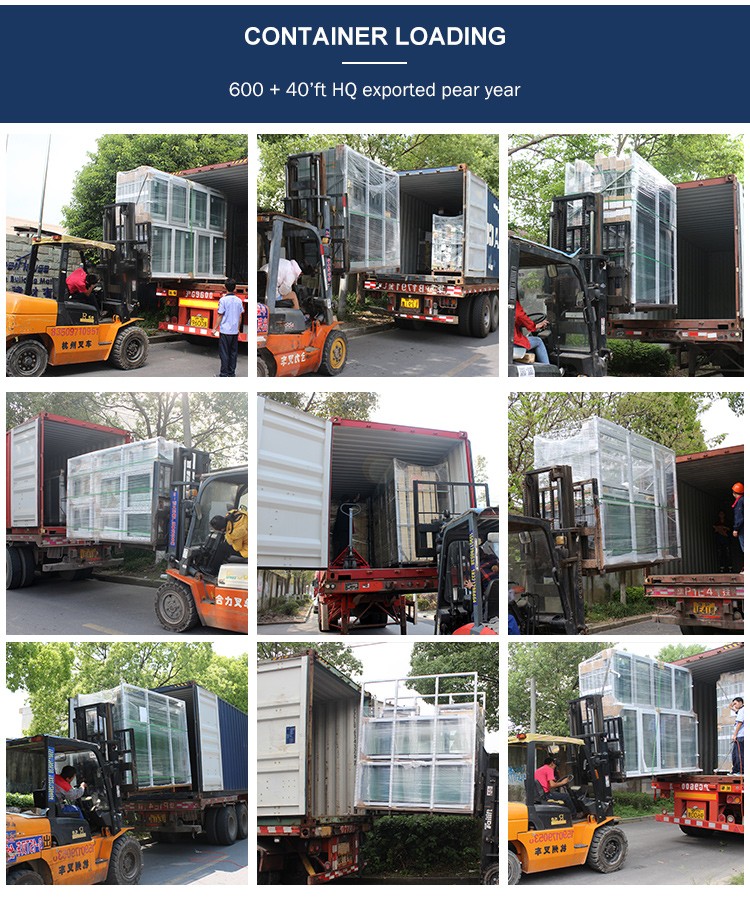

Packaging & Logistics
| Packaging Detail |
Step 1: Protective tape protects frames from scratches. Step 2: Keep windows or doors securely positioned on iron pallets. Step 3: Tie up units onto pallets using durable plastic strapping. Step 4: Wrap with PE protective films to shield against seawater exposure. Step 5: Fill void spaces between iron pallets with cushioning airbags. Step 6: Secure iron pallets within the shipping container using high-strength belts. Our packaging system ensures all products arrive at the project jobsite in pristine condition. |
|---|---|
| Delivery Detail | 38–50 days following final order confirmation and drawing approval. |
Frequently Asked Questions
How can I trust your manufacturing credentials?
Superhouse is a verified supplier with extensive manufacturing history. Our facilities undergo annual on-site audits and verifications by leading international assessment bodies, including BV, TUV, AWA (Australian Windows Association), and SAI Global.
Do your doors and windows comply with AS2047 Standards?
Yes, our complete range of doors and windows is fully certified under the AS2047 standard. Furthermore, our glazing units adhere strictly to AS2208, UL, and EN standards to satisfy building codes in Australia, New Zealand, Canada, and the USA.
What is the standard manufacturing lead time?
Production typically takes 38 to 45 days. This duration commences upon receipt of the deposit and signed approval of shop drawings, taking into account the 25-day extrusion profile production timeline.
Do you accept customized designs, dimensions, and colors?

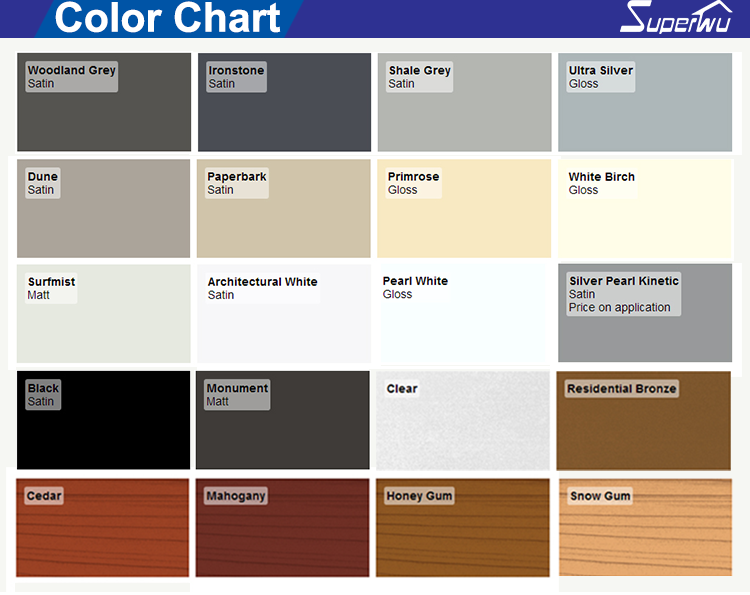

Yes, every unit is engineered to match your specific project requirements. We offer extensive powder coat and anodized finishes based on Colorbond, RAL, or Interpon color decks, alongside physical color sample matching.
What window systems and hardware brands are supported?
We utilize the Australian SP100 architectural system, thermal break systems, as well as systems compatible with Reynaers and Schüco designs. Hardware options include premium German brands (Roto, Siegenia, Geze), Australian Doric, and leading high-durability hardware brands.
What payment terms and packaging standards are accepted?
Flexible payment options include T/T, L/C, PayPal, and Western Union. Packaging features protective carton wrap, iron transport pallets, non-abrasive cushioning, and internal container tie-downs to ensure complete integrity during transit.
