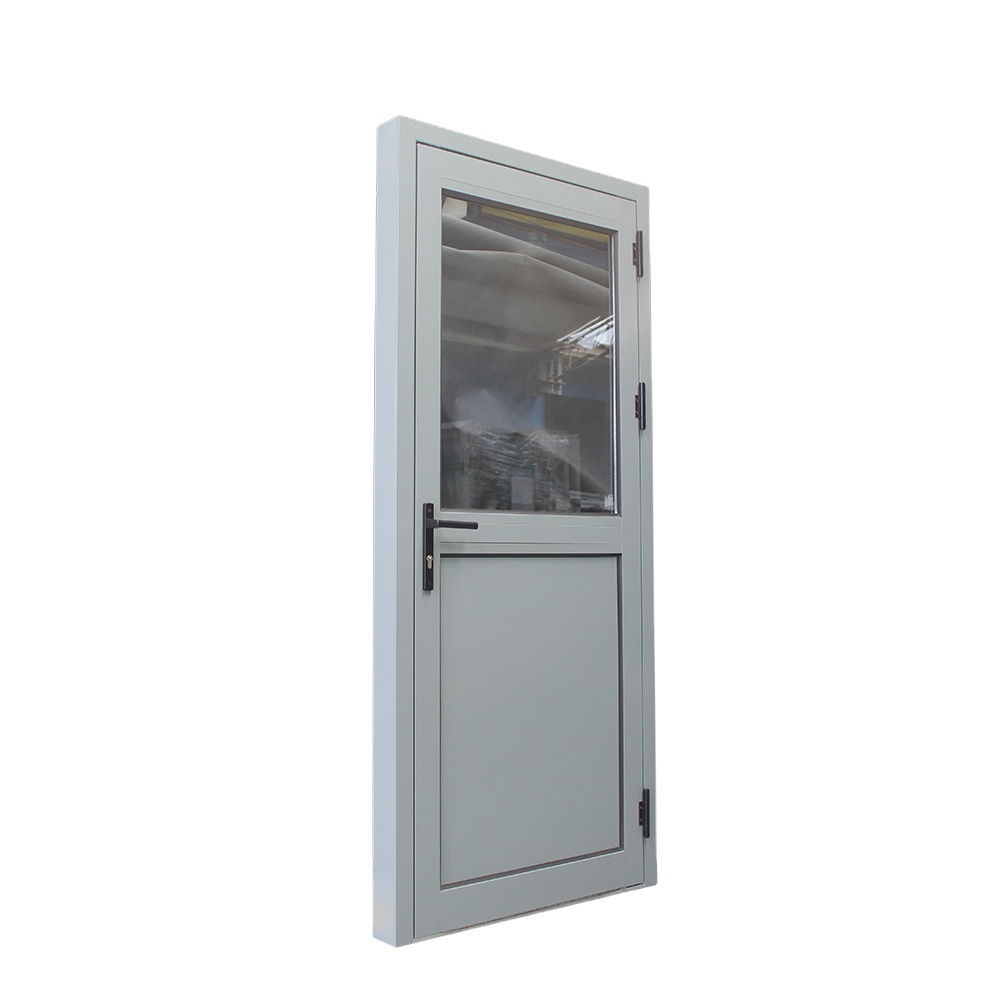

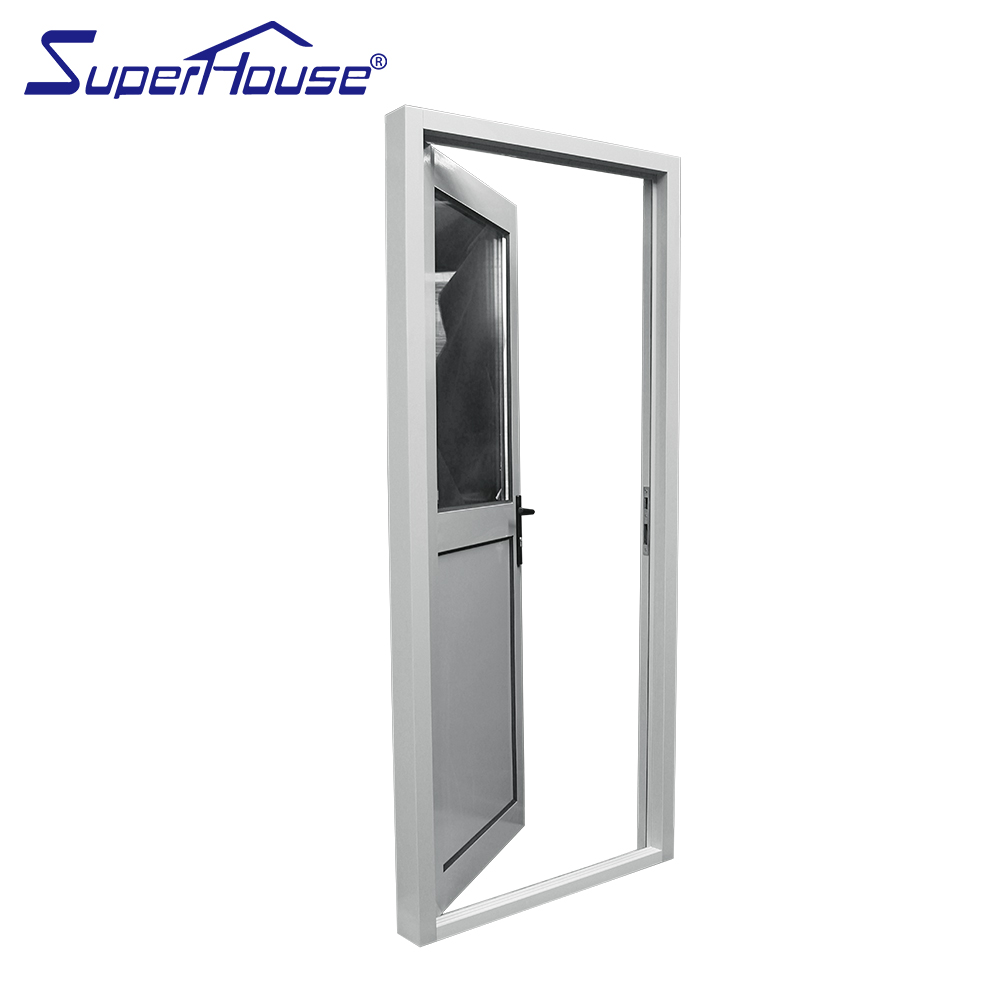

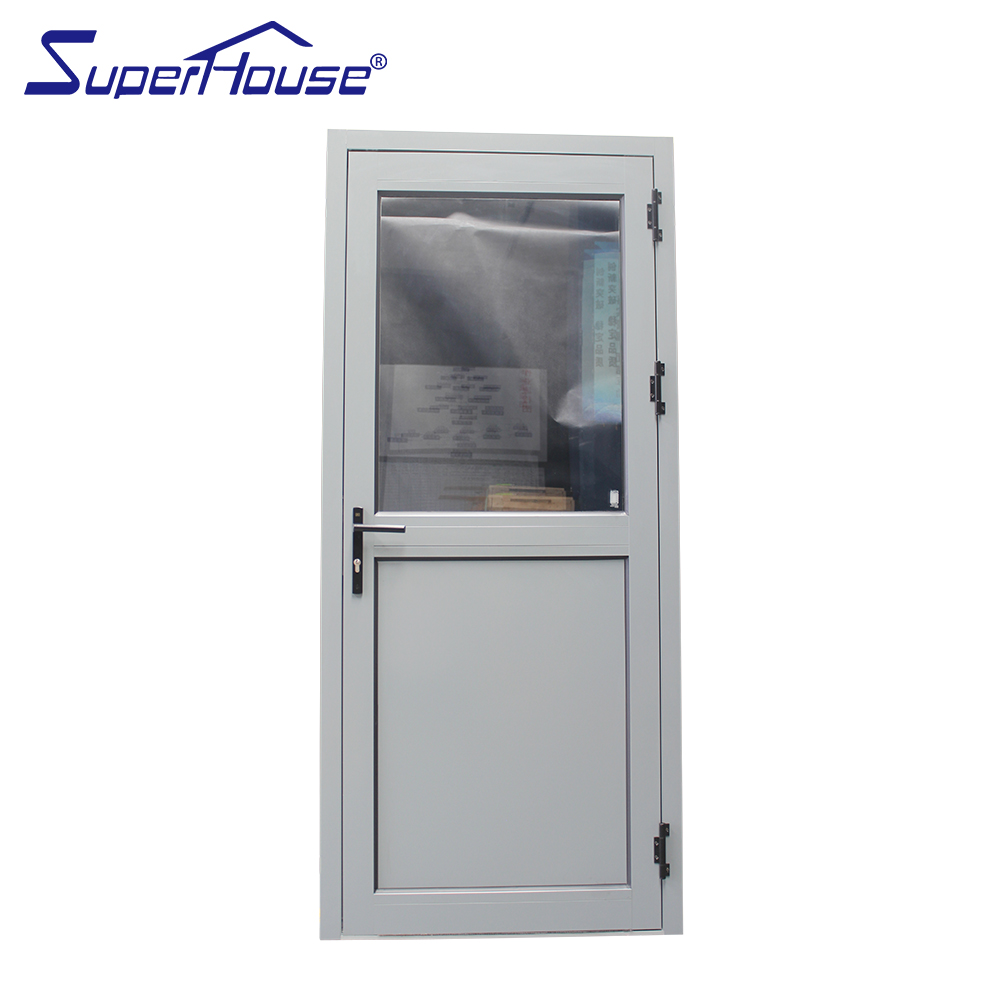

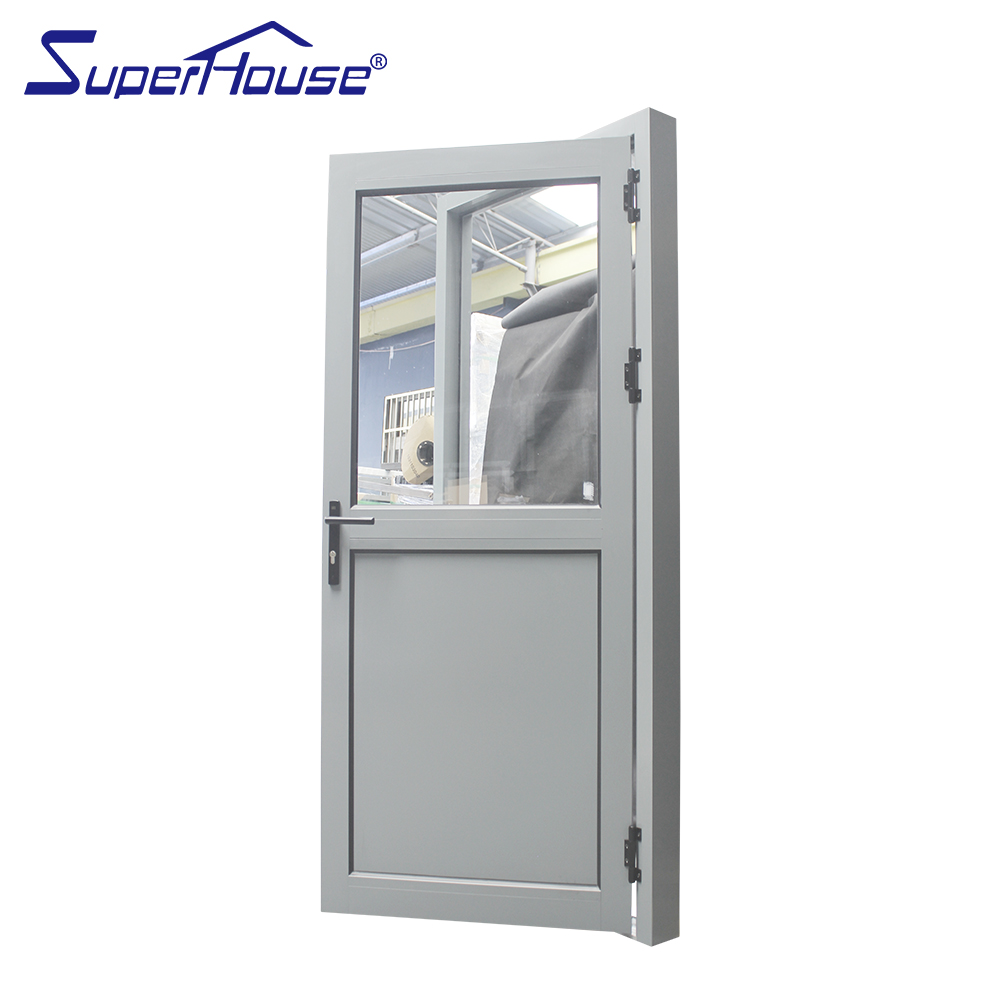

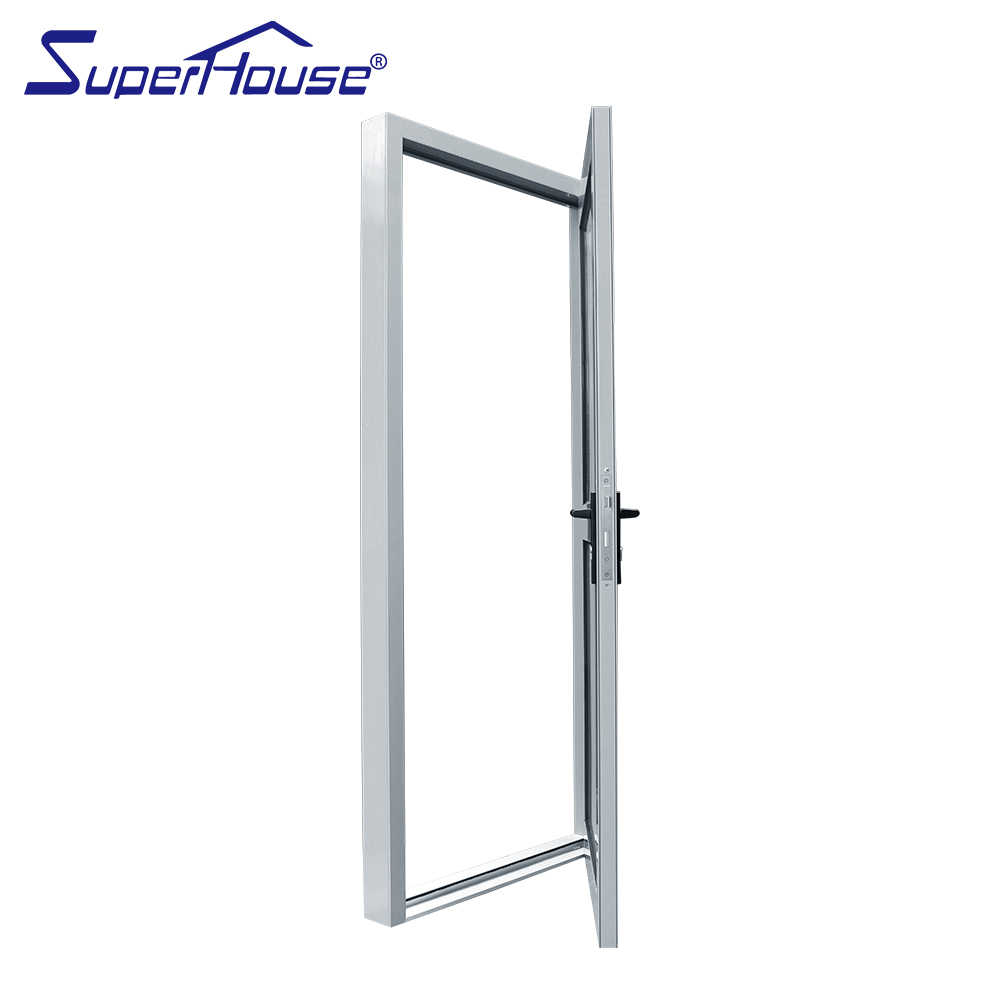

AS2037 NFRC Half Glass Half Aluminum Casement Door
Product Description
An aluminum hinged door features hinges to firmly fix the door frame. The hinges are installed beside the door, allowing flexible inward or outward opening swing mechanisms. Aluminum alloy is recognized as an exceptionally durable door construction material, making it a globally preferred choice for modern architecture.
🚪
Configurations
Available in both single door and double door setups to adapt seamlessly to your project layout.
🛡️
Superior Durability
Exceptional plasticity and strong corrosion resistance provide long-lasting service life in all climates.
🔇
Hollow Insulated Core
High-end double-layer hollow designs guarantee optimal sound insulation, airtightness, and water tightness.
Aluminum swing doors are categorized into single and double configurations. A single door requires only one door leaf opening along a single direction. Double door setups utilize two door panels, which swing open smoothly in dual directions for wider entryway access.
📋 Product Specifications
| Profile | Type | Aluminium 6063-T5 & 6063-T6, or customized |
| Thickness | 2.0mm, 2.5mm | |
| Color | Grey, black, etc. | |
| Glass | Type | Toughened, tempered, frosted, single, double, triple, etc. |
| Color | Blue, Transparent, European grey, glazed colour, etc. | |
| Surface Treatment | Powder coated, PVDF, anodized | |
| Hardware | Australian hardware | |
| Europe brand hardware | ||
| Top Chinese hardware | ||
| Screen Netting | Fiberglass | |
| Stainless steel | ||
| Opening Style | Sliding, hinged, folding, fixed, tilt and turn, awning, hung, electrical | |
| Others | Customized according to your specific requirements | |
In the past few years, Superhouse has exported diverse collections of aluminium hinged doors, serving both high-end residential and heavy-duty commercial projects. Different buyers find tailored solutions matching their precise architectural demands.
We provide full bespoke capabilities for any aluminium hinged door design based on project specifications. Below are selections of our completed global exports.
Modern lifestyles mean we spend the majority of our time indoors. However, unpredictable natural environments present ongoing challenges to indoor living and workspaces, including extreme cold, scorching heat, exterior noise, severe hurricanes, physical impacts, and rainstorms.
While doors and windows welcome natural sunshine, ventilation, aesthetic beauty, and expansive views, they can also become points of vulnerability against harsh elements. Investing in high-performance architectural doors and windows safeguards your space with a reliable, safe, and comfortable indoor atmosphere.

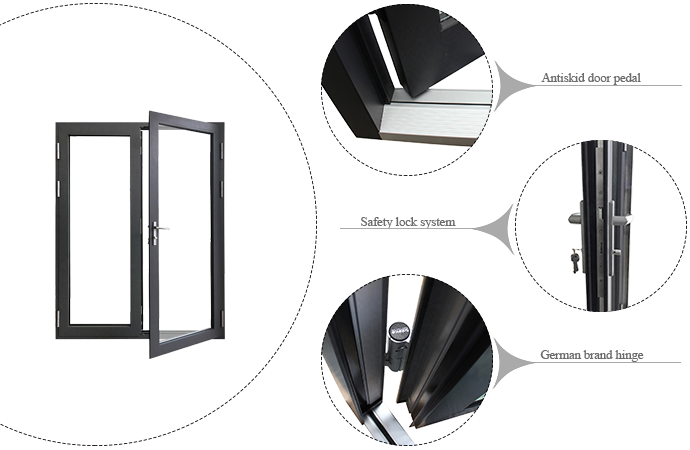

The Superhouse P80 System delivers exceptional heat insulation performance. As a flagship product line, it combines premium manufacturing with options like protective kick plates. It supports inwards opening, outwards opening, and versatile low-sill or high-sill thresholds, adapting easily to lift & slide or bi-folding configurations. The system is engineered to fit standard C and U grooves with multi-point locking systems for dependable security.
⚙️ Technical Data & Performance
Visible Width (Frame / Sash)
51.2 mm / 81.5 mm
Profile Depth (Frame / Sash)
79 mm / 89 mm
Glass Groove Depth & Thickness
27 mm / 25 mm
Thermal Insulation
U ≤ 1.4 W/m²K
Acoustic Performance
≤ 45 dB
Air Tightness
≤ 0.4 m³/(m²·h)
Wind Load Resistance
≥ 0.5 KPa
Water Penetration
≥ 600 Pa
❓ Frequently Asked Questions (FAQ)
Q: What makes aluminum swing doors a durable choice?
Aluminum alloy provides high structural rigidity, excellent plasticity for precision manufacturing, and superior resistance to corrosion and weathering, ensuring decades of stable performance.
Q: What is the thermal performance of the Superhouse P80 System?
The P80 system achieves excellent energy efficiency with an overall thermal insulation value of U ≤ 1.4 W/m²K, helping maintain indoor temperature stability and reducing energy costs.
Q: Can these hinged doors be configured for both inward and outward opening?
Yes, the system is engineered to accommodate both inward and outward swing orientations, available in single or double-leaf door layouts with low or standard thresholds.
Q: What glass and glazing configurations are supported?
The system accommodates a 25mm glass thickness within a 27mm groove, supporting single, double, or triple glazing with tempered, toughened, or frosted options.
Q: How do these aluminum doors perform against severe weather conditions?
They are engineered to withstand harsh environments with wind load resistance ≥ 0.5 KPa, water penetration resistance ≥ 600 Pa, and an acoustic sound reduction index of up to 45 dB.
