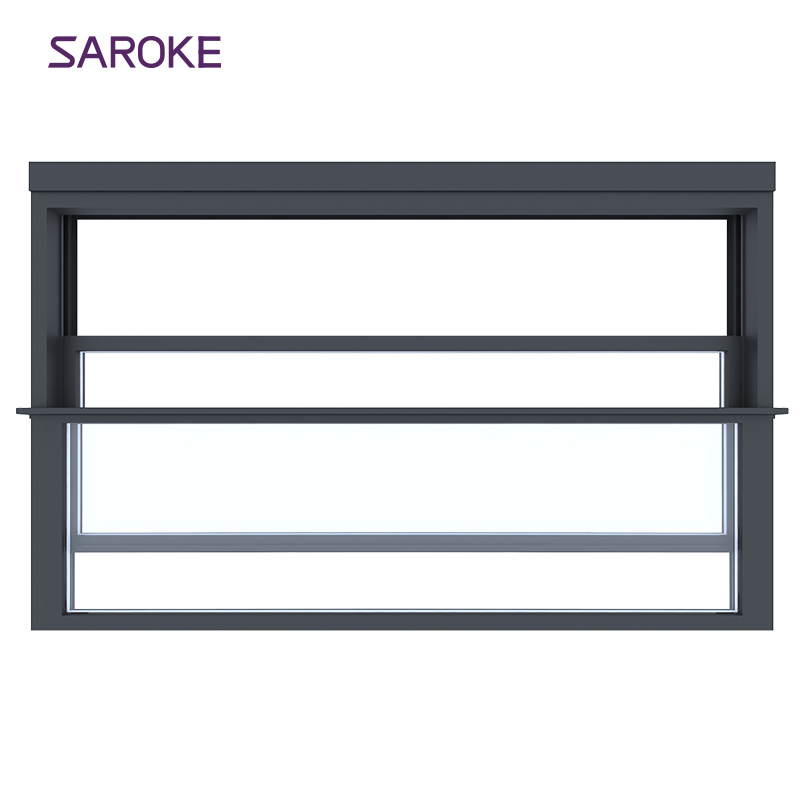

Electric Powered Thermal Break Black Terrace Large Tempered Glass Double Glazed Aluminum Lift windows
Product Description
SAROKE Product Advantages
🛡
Feature 1: Integrated Screen & Roller Blind
Newly upgraded integrated window screen with internal electric roller blind, maximum size up to 6 meters.
💧
Feature 2: Advanced Weather Sealing
Internal pressure line design, frame and sash sealed with anti-slip rubber strips, ensuring strong airtightness and watertightness.
💡
Feature 3: Reinforced Handrail & Ambient LED
Standard configuration includes a 3.0mm thick reinforced horizontal handrail and LED ambient lighting, paired with a high-precision planetary reducer; automatic reset during power outages.
⚙
Feature 4: Intelligent Motor Protection
Motor with overvoltage, overcurrent, and overload protection, equipped with fault alarm prompts and a permanent magnet braking system.
⚗
Feature 5: Screw-Driven Mechanism
Screw-driven lifting structure, sturdy and non-slip, offering greater stability, load-bearing capacity, and quieter operation.
🔧
Feature 6: Side Inspection Maintenance
Side inspection cover design, maintenance without disassembling the frame or sash, making it more convenient and simpler.
🌧
Feature 7: Smart Rain Sensing System
Standard configuration includes a luxurious wall-mounted air control + remote control switch, equipped with an intelligent rain sensor system that automatically closes the window when it rains.
🛡
Feature 8: Anti-Pinch & Child Safety Lock
Equipped with an anti-pinch function to effectively prevent secondary pinching injuries, and a child lock function for enhanced safety.
📱
Feature 9: 50% Opening & Smart Voice Control
Extra-large opening by 50%, with optional intelligent voice control system, and free control via APP.
Products Description

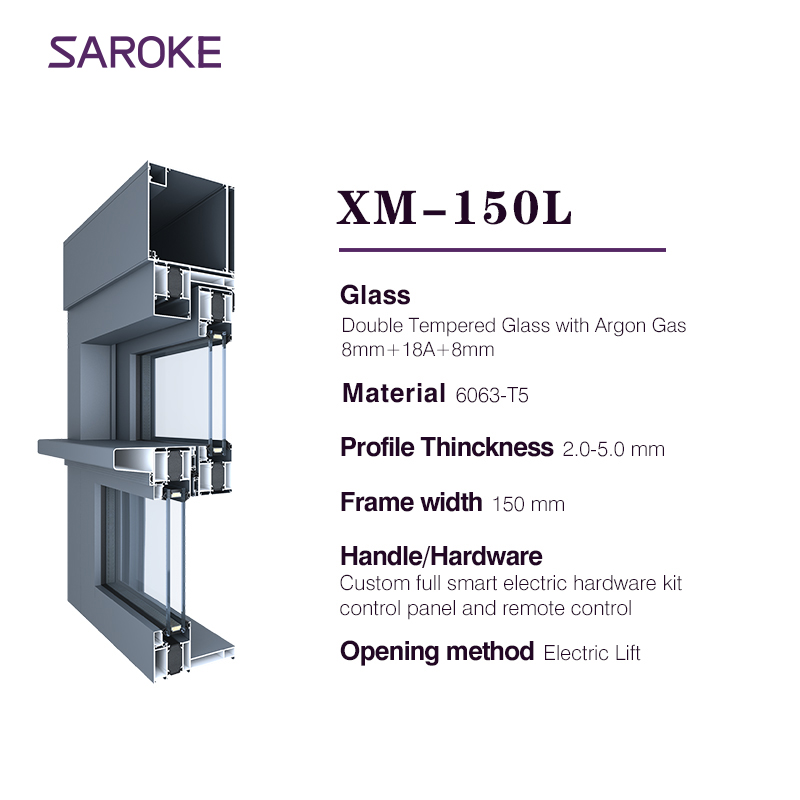

| Items | XM150L |
| Glass | Double Tempered Glass with Argon Gas 8mm+18A+8mm |
| Material | 6063-T5 |
| Thickness | 2.0-5.0mm |
| Frame Width | 150mm |
| Hardware | Custom full smart electric hardware kit, control panel and remote control |
| Opening Method | Electric Lift |
| Mosquito Screen | Yes |
| Performance |
• Wind-load Resistance: Grade 8 • Water Tightness: Grade 4 • Air Tightness: Grade 5 • Sound Insulation: Grade 4 (35dB) • Thermal Insulation: Grade 5 (U-value 2.5) |

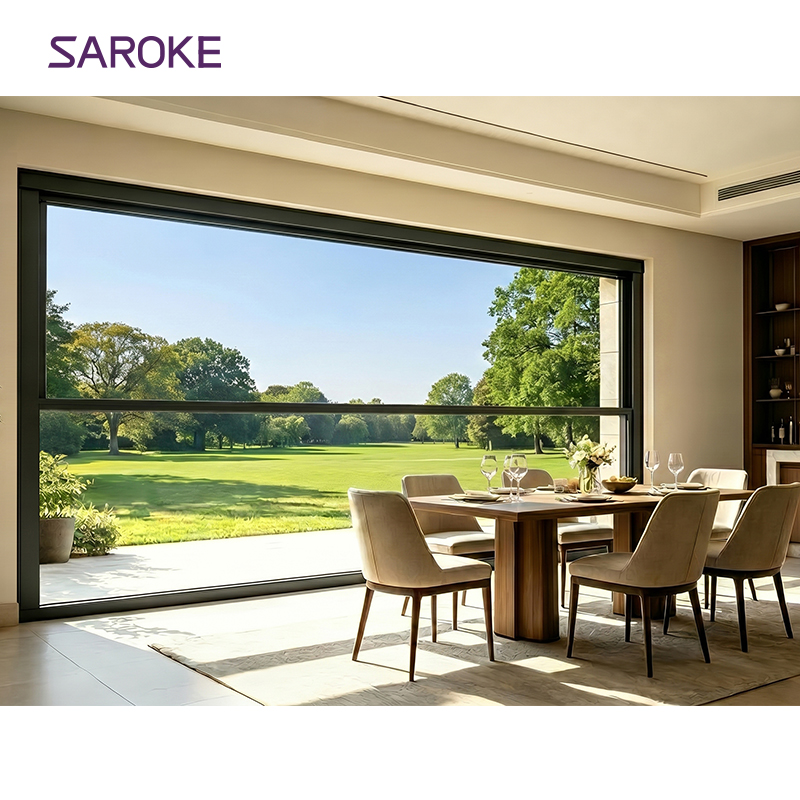

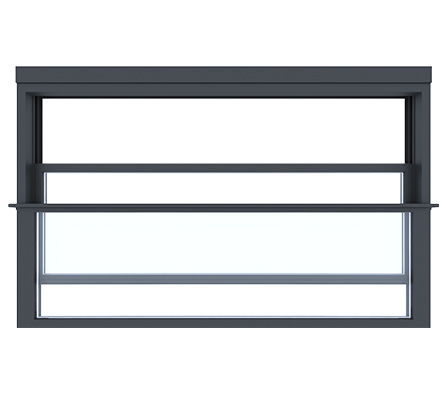

Panoramic View with up to 50% Large Opening
Optimal ventilation performance when opened. Vertical lifting operation, no indoor space occupied.

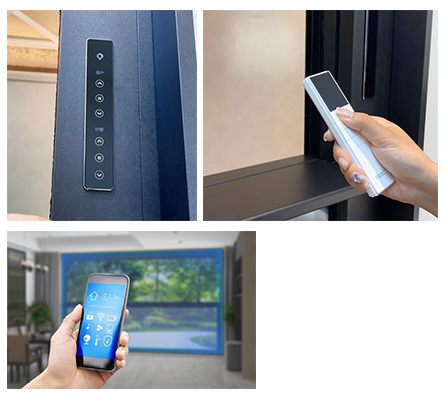

Standard: Wall-mount control panel + remote switch
Standard equipped with wall-mount control panel & remote switch. Optional smart voice control system and APP control available. Deliver full-on experience for light-luxury & comfortable living. Adopts screw-rod lifting mechanism, firm and non-slipping. Features superior stability, heavy load-bearing capacity and quieter operation.

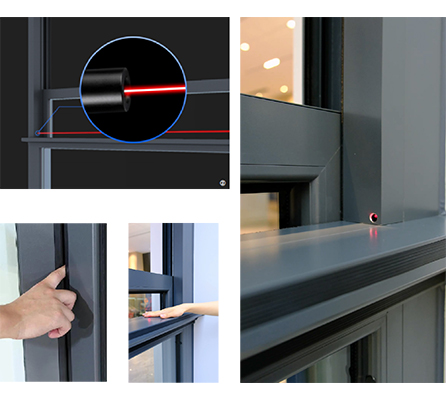

Infrared Anti-Pinch Sensor
Equipped with infrared anti-pinch sensor, featuring anti-pinch protection and child lock function, it continuously safeguards home safety for both children and the elderly.

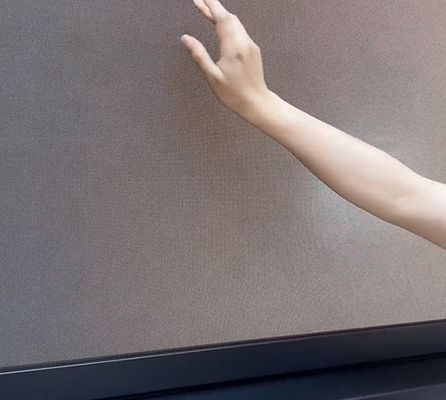

Electric Screen
Electric screen is optional accessory. It delivers effective insect-proof performance while maintaining ventilation. Newly upgraded, maximum size can reach 6 meters.

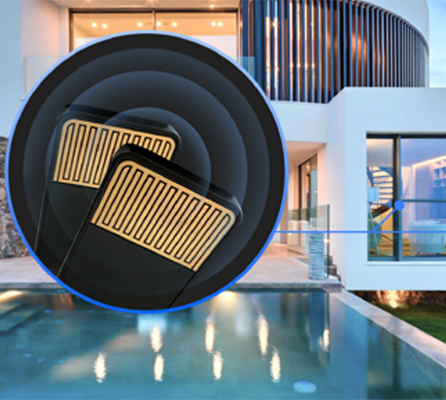

Rain Sensor System
When raindrops hit the sensor, the window closes automatically, solving the trouble of forgetting to close windows before going out. Adopting step-type floor drain drainage structure, plus sliding-aided gasket sealing for frame and sash, it delivers excellent air-tightness and water-tightness. It protects your indoor space even during sudden heavy rainfall.

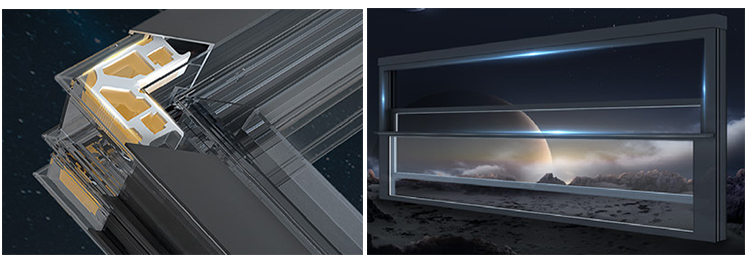

Superior Stability, Resist Severe Storms
Corner injection gluing joint enhances the overall stability and air-water tightness of the window. Upgraded profile wall thickness and high-strength frame structure withstand heavy wind-load with excellent anti-deformation performance, effectively resisting stormy weather.

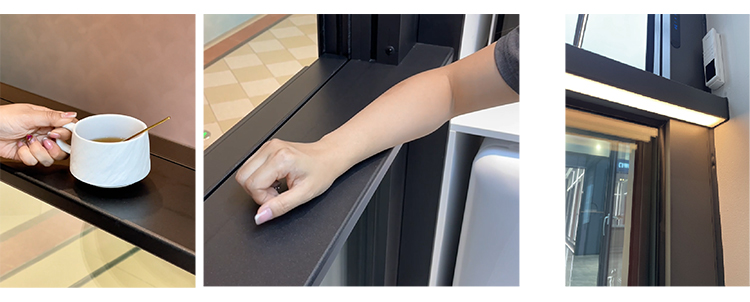

Private Bar Counter
Comes with LED ambient light for cozy atmosphere and ceremonial feeling. Standard equipped with 3.0mm thick middle horizontal reinforced handrail.

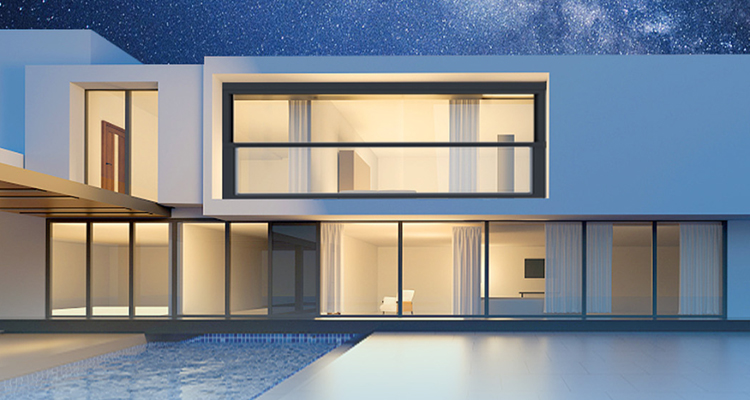

Built-in Protection Mechanism
Built-in auto-reset window-closing function upon power-off. No worries even during power outages on rainy days. Equipped with high-precision planetary reducer for auto reset when power fails. It prevents suspension under power-off and rain infiltration. The motor features over-voltage, over-current and overload protection, together with fault alarm reminder and permanent-magnet braking system.
Company Profile
As a global professional solution provider of system windows and doors for mansions, Saroke understands "beautiful residences" as a seamless integration of function, aesthetics, and state of mind. Saroke's mission is to participate deeply in the co-construction of architecture, showcasing the resident's vision and ambition through architecture, light, and design. Saroke boasts superior waterproofing, sound insulation, thermal control, and building ventilation systems, seamlessly integrating into the smart home ecosystem. With an integrated supply chain and highly flexible customization, Saroke provides comprehensive window and door solutions for discerning individuals seeking beautiful residence. With 20 years of technological and service expertise, Saroke presents not just an exceptional window and door system, but a complete trust of tranquility, security, and harmony.
FAQ
1. Are you a factory?
Our factory covers an area of 300000 Square meters and has 500+ employees.
2. What is your main product?
We can supply the window system (including profile, hardware, accessories, glass) as well as the finished products ready for installation.
3. What is your delivery time?
25-35 days after deposit and drawing confirmed.
4. What is your warranty? What do we do in case of problems?
10 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.
5. What kind of service will you provide?
We are able to provide the engineering as well as supervising service to guide installation of our windows and doors.
6. Are your products Certificated?
Yes, our products meet NFRC & CSA & AS2047 & CE for now and also we will make our product tested and certificated if you required.
