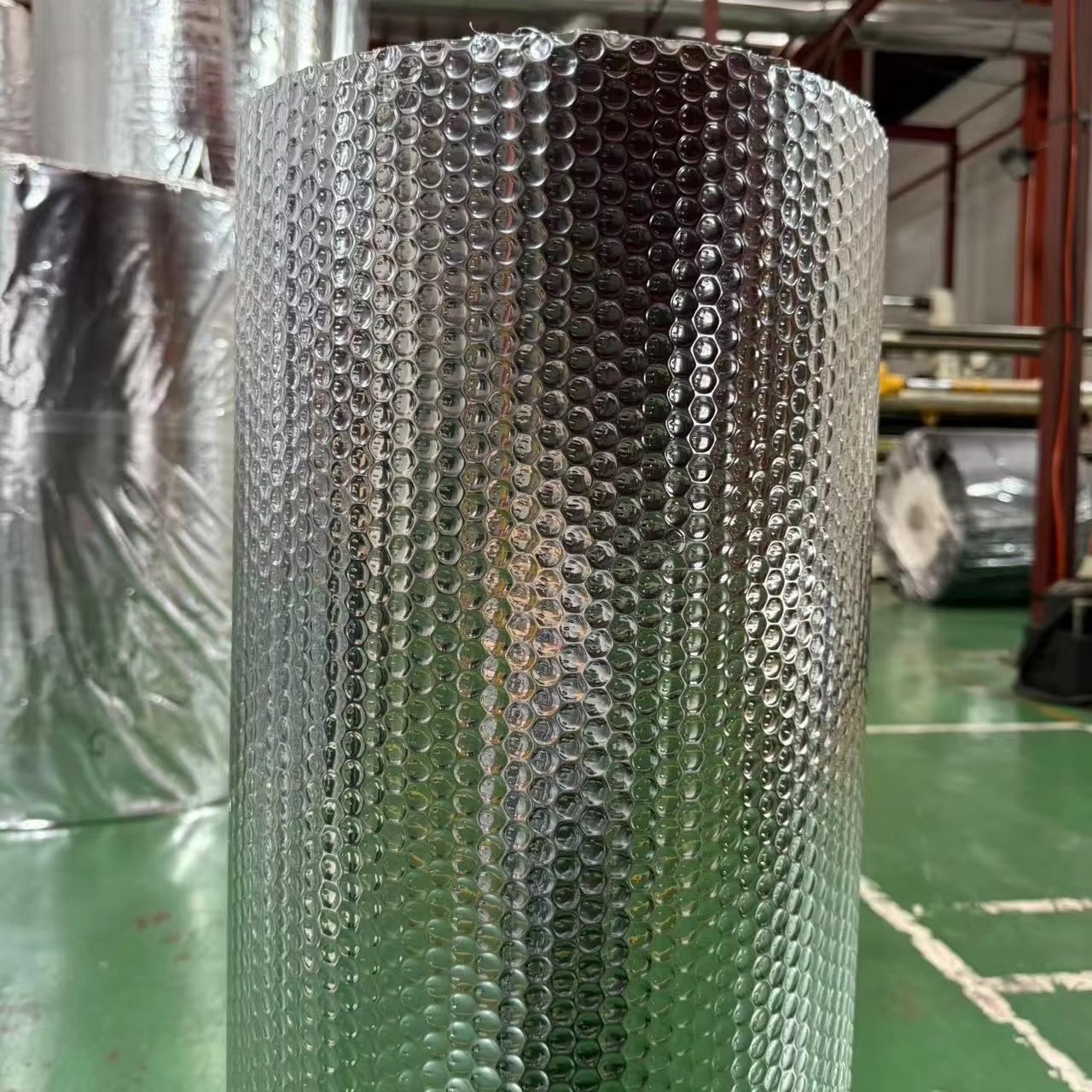

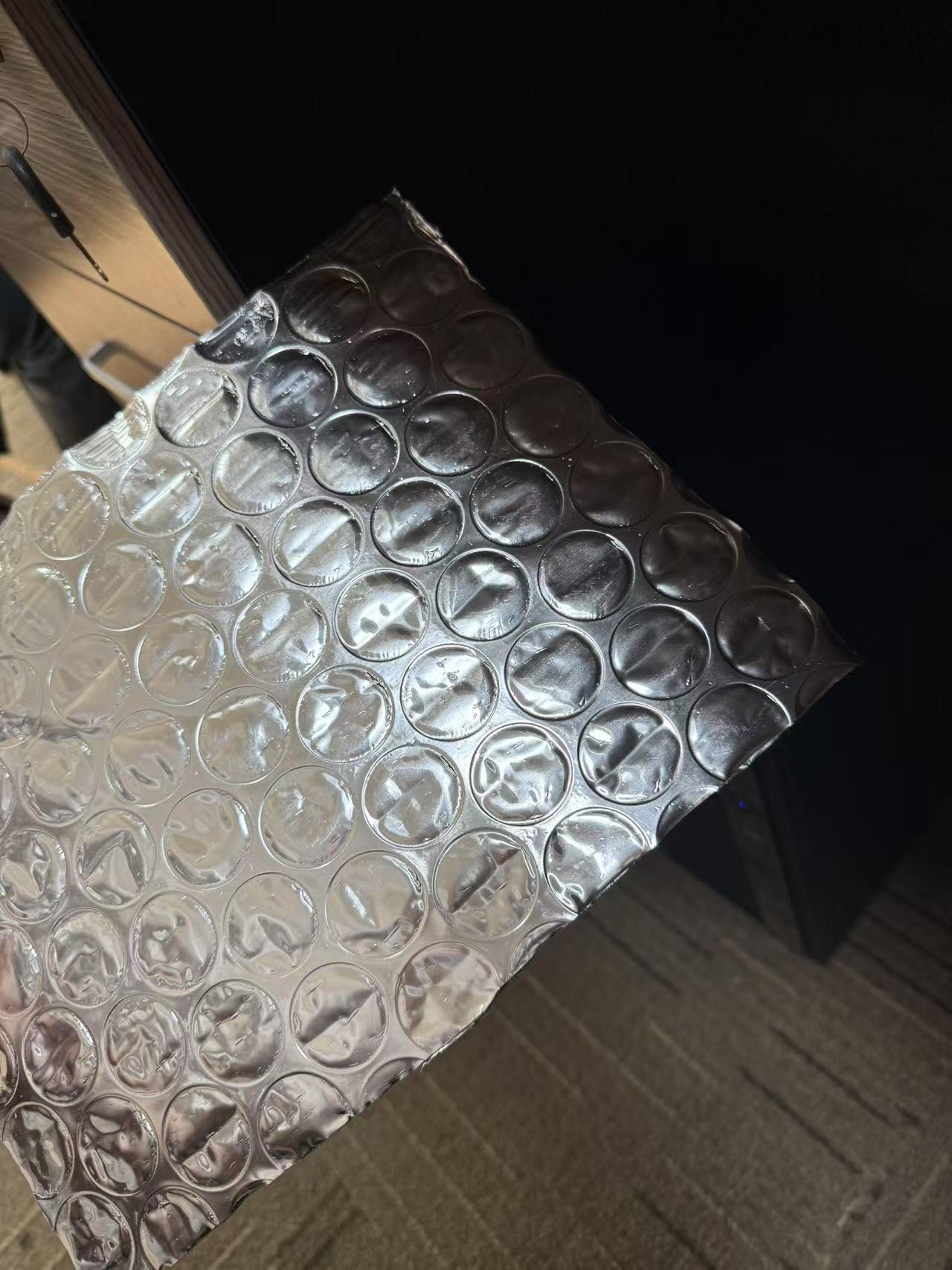

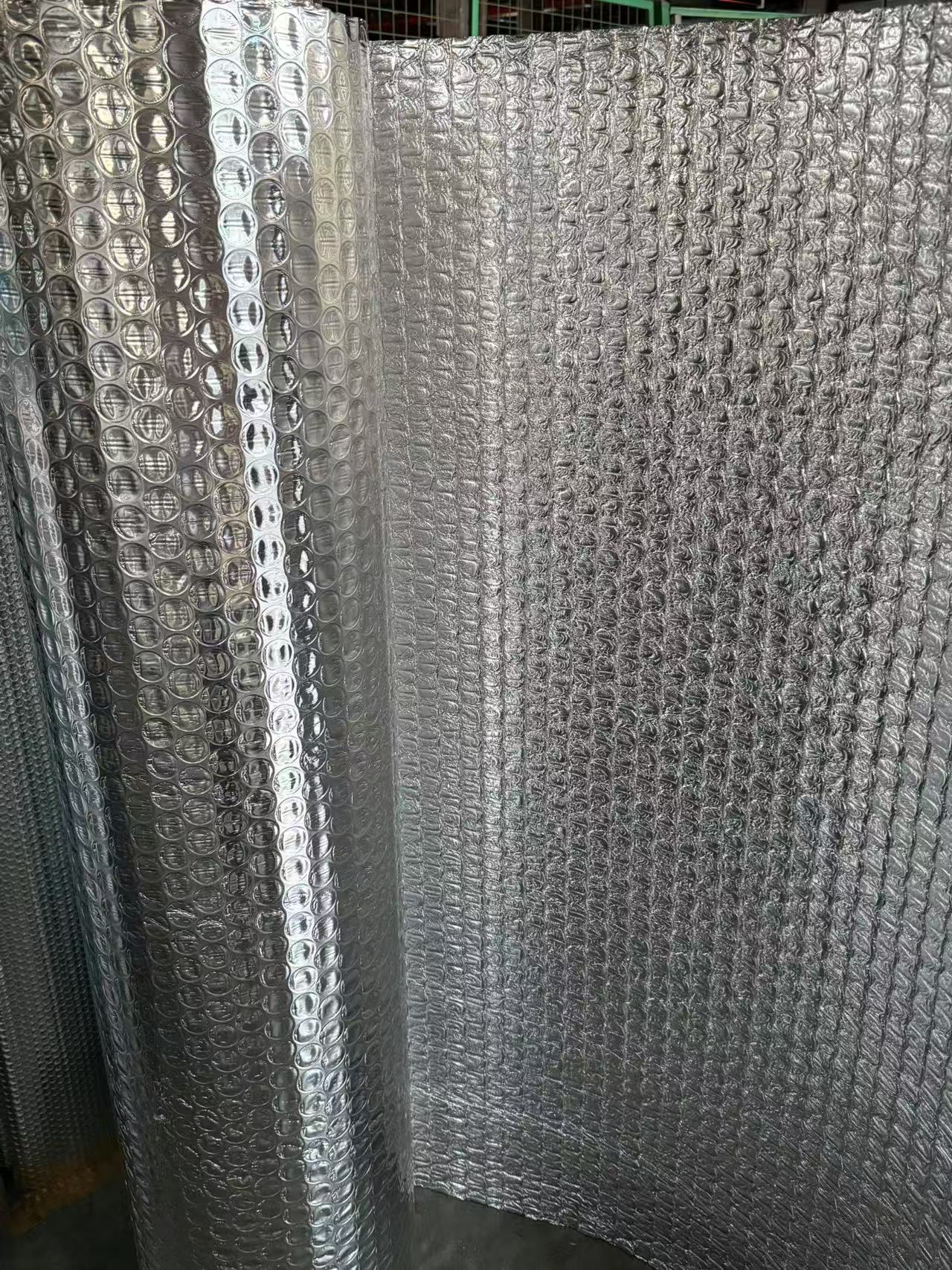

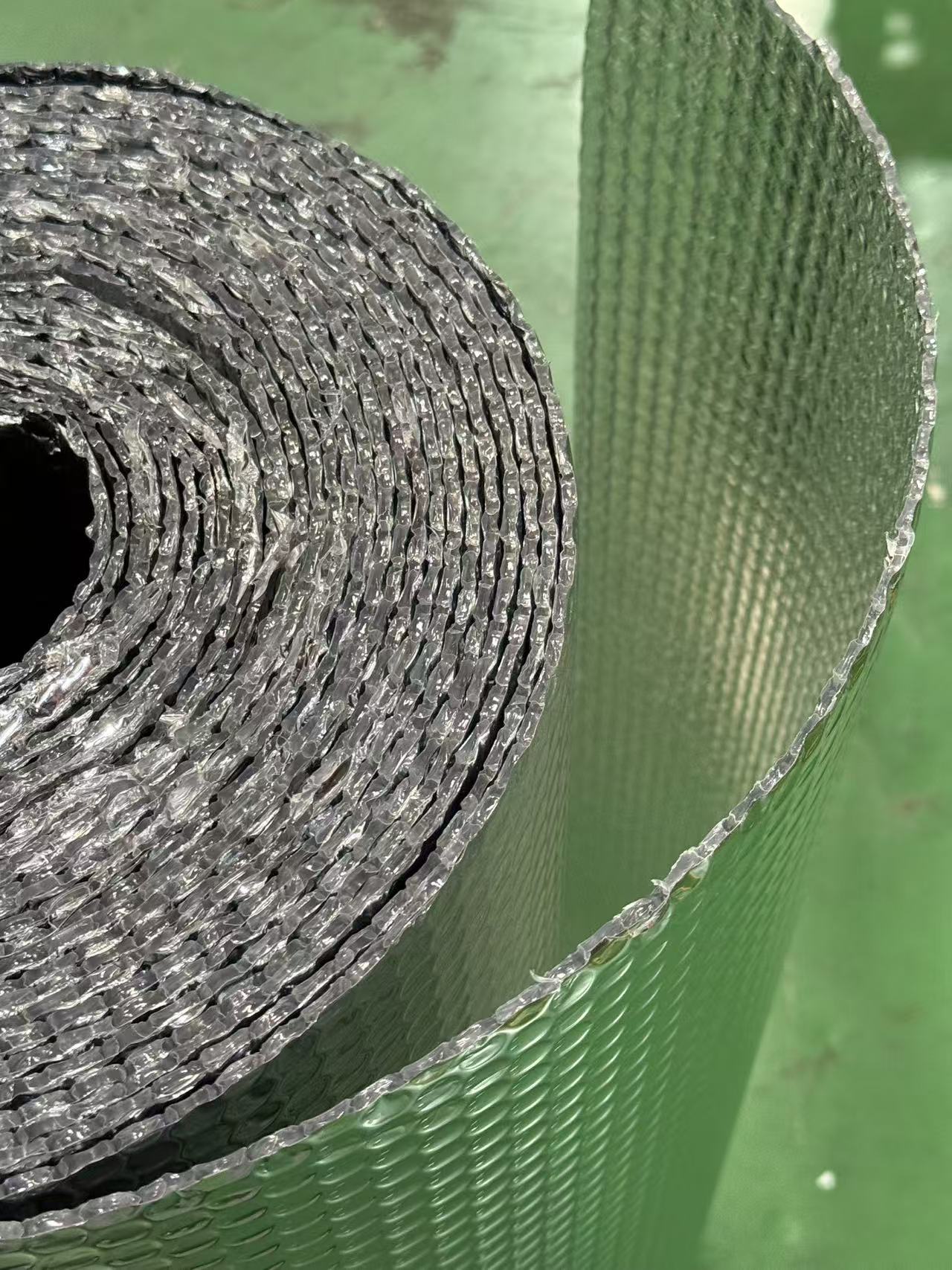

Double-Sided Reflective Aluminum Bubble Wrap Roll - Thermal Insulation Sheet for Windows, Pipes, Warehouse Temperature Control
Product Description
Product Description
Specification
Dimension of Bubble * Thickness:
10*2.5 mm, 10*4 mm, 10*5 mm,
20*6 mm, 20*7 mm, 20*8 mm
Regular Roll Size (Width * Length / roll):
- (1) 1.2 m * 30 m / roll
- (2) 1.2 m * 40 m / roll
The size can meet your demand.
Technical Features
| Temperature range | -76°F ~ +212°F (ASTM C411) |
| R-value | 2.0 ~ 11.2 |
| Fire-proofing | Class A / Class 1 |
| Emissivity | 0.03 - 0.04 COEF |
| Thermal Conductivity | 0.032 - 0.036 W/m0 |
| Apparent Density | 54.8 kg/m3 |
| Reflectivity | 96% - 97% |
| Vapor Transmission | 0.012 g/m2kpa |
| Corrosion | Doesn't generate |
| Tensile Strength (MD) | 13.43 Mpa |
| Tensile Strength (TD) | 14.58 Mpa |
Features
91%-97% high thermal reflectivity
0.3-0.9 low emissivity PE (Polyethylene) material
Zero Moisture Absorption
Hypoallergenic
Fibre-free
Clean and easy installation
Environment friendly, recyclable
High tensile strength application
Waterproof

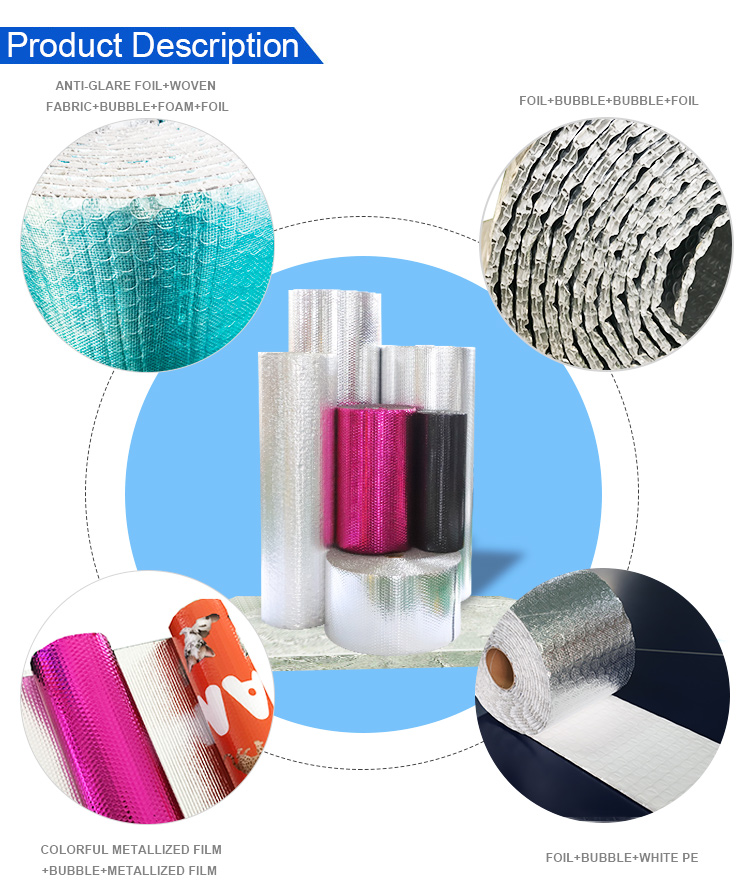

Optional features available upon request:
• Fire Retardant
• Anti-glare
• Antioxidant

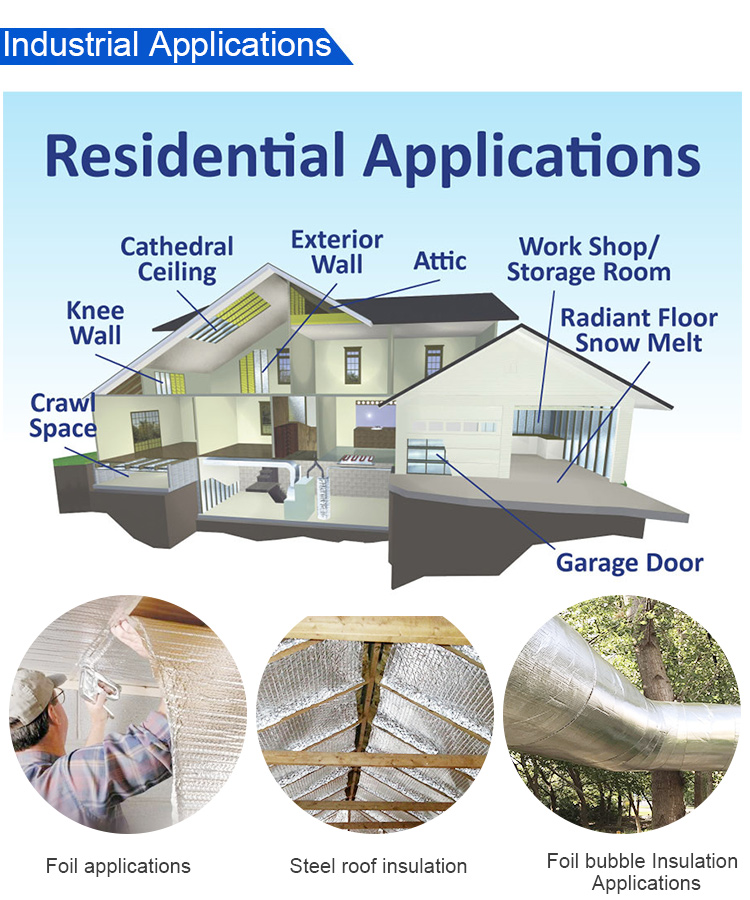

Application
1. To laminate or coat EPE, XPE, IXPE, Kraft as good building / construction Thermal Insulation Material
To reduce summer heat and keep warm in winter.
- Roof, Attic, Underlay & floor Insulation Under Concrete & wood.
- Crawl Space, Stud Wall, Metal Frame Building Insulation.
2. Wrapping
- Protective coating of ventilating pipe, HVAC Duct & Pipe;
- Shells of air conditioner and water heater;
- Wrap house & pipe;
- Industrial & commercial sheds.
3. Packaging Converting
- To make Bubble mailer, Bag, tray cover.
Frequently Asked Questions
QWhat is the reflectivity performance of this insulation wrap?
The double-sided reflective aluminum bubble wrap achieves a high thermal reflectivity rate of 96% to 97%, effectively blocking radiant heat transfer.
QWhat standard roll sizes are available?
Standard roll sizes are 1.2m x 30m and 1.2m x 40m per roll. Bubble dimensions vary from 10mm to 20mm in diameter, and customized sizes can be produced to meet your requirements.
QCan this material withstand extreme temperature ranges?
Yes, the material is rated for an operating temperature range of -76°F to +212°F according to ASTM C411 testing standards.
QIs this thermal insulation safe and moisture-resistant?
Yes, it features zero moisture absorption, is completely waterproof, hypoallergenic, and 100% fiber-free, making it safe and clean to handle and install.
QWhat fire rating does this thermal insulation hold?
The material complies with Class A / Class 1 fire-proofing standards. Additional fire retardant treatments can also be customized on request.
