OEM Architectural Door Systems Portfolio
High-performance aluminum glass door configurations fabricated to rigid international tolerances, featuring advanced thermal-break profiles, hurricane-rated laminated glazing, and heavy-duty architectural hardware.
Huasin Customized Modern Design Lowe Double Tempered Glass Sound Heat Insulation Swing Aluminum Casement Door
Bulk bifold doors aluminium folding patio exterior aluminum bi folding glass door accordion doors

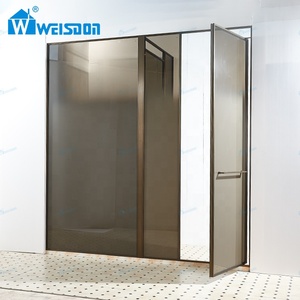

Soft Close SGCC Certified Villa Hotel Aluminum Alloy Bronze 5mm+5mm Laminated Safety Glass Framed Pivot Shower Door
Florida Certification Aluminum Hurricane Impact Glass Doors Miami Dade Hurricane Sliding Door
Custom Slim Aluminum Framed Swing Glass Crittall Style Arched Double Glazed Interior Casement Patio Entrance French Doors

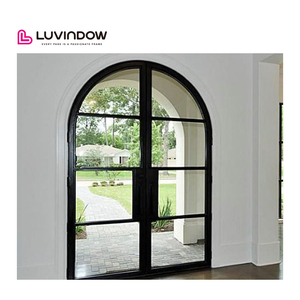

Luvindow TEXAS Aluminum French Design Mother And Son Double Open Door Aluminum Entry Hinged Door Glass Pivot Door Modern
USA Style High Quality Commercial Double Glass Aluminum Sliding Doors Patio Bulletproof Security Sliding Door
Hurricane Proof Impact Doors Thermal Break Windproof Exterior Aluminum Triple Glazed Hinged Glass Door
Precision OEM Custom Aluminium Fabrication for High-Performance Fenestration
In high-density commercial, institutional, and high-end residential architecture, the specification of exterior glass doors represents one of the most critical structural and environmental junctions in the building envelope. As global architectural typologies transition toward floor-to-ceiling glass assemblies, minimal sightlines, and aggressive fenestration spans, standard off-the-shelf fenestration systems consistently fail to satisfy rigorous structural deflection criteria, local hurricane building codes, and aggressive target thermal coefficients.
A true Custom OEM Aluminium Fabrication Glass Door Manufacturer does not merely assemble pre-cut extrusions; it operates as an integrated precision metallurgy, structural engineering, and facade prototyping facility. At our specialized industrial campus in Foshan, Guangdong—the recognized epicenter of high-end aluminum extrusion metallurgy in China—every custom fabrication cycle begins with raw primary aluminum billets cast strictly from high-purity electrolytic ingots conforming to GB/T 5237, ASTM B221, and EN 755 metallurgical standards. By controlling alloy chemistry across 6063, 6061, and 6005A grades, our metallurgists dial in precise magnesium-to-silicon (Mg2Si) stoichiometric ratios, optimizing mechanical properties post-extrusion and T5/T6 aging treatments to achieve yield strengths exceeding 215 MPa and ultimate tensile strengths above 245 MPa.
For general contractors, facade consultants, and architectural specifiers, OEM custom door fabrication bridges the gap between ambitious parametric design and physical structural stability. Whether engineering oversized monolithic pivot entry systems measuring 4 meters in height, motorized multi-stacking acoustically rated sliding partitions, or Miami-Dade certified impact glass patio doors, our in-house engineering wing leverages 3D finite element analysis (FEA) to simulate wind load deflections ($L/175$ and $L/240$), thermodynamic isothermal profiles, and stress concentrations on high-load mechanical pivot hinges and roller tracks.
Strategic Sourcing Trends in Architectural Aluminum Fabrication
Procurement executives, commercial developers, and facade contractors are navigating stringent decarbonization targets, turbulent logistics environments, and increasingly sophisticated national building codes. The following four pillars define modern B2B procurement strategies for architectural glass doors:
BIM Level 3 & DFM Digital Integration
Leading general contractors no longer issue static 2D PDF architectural elevations. Sourcing workflows now demand full integration of Building Information Modeling (BIM Level 2/3) Revit assets paired with Design-for-Manufacturability (DFM) shop drawings. Our CAD/CAM pipeline translates parametric Revit families directly into 5-axis CNC machining code, guaranteeing millimeter-accurate anchor positions, weep slots, and structural silicone bite dimensions before the initial extrusion profile is cut.
Low-Carbon Billet & EPD Transparency
With the expansion of the EU Carbon Border Adjustment Mechanism (CBAM) and LEED v4.1 Platinum / BREEAM credentials, procurement teams scrutinize the embodied carbon profile of door assemblies. DERCHI's manufacturing pipeline utilizes clean hydro-powered secondary aluminum smelting and certified low-carbon primary ingots, supporting Environmental Product Declarations (EPD) and helping global developers systematically reduce Scope 3 upstream construction emissions.
Single-Source Factory Acceptance Testing (FAT)
Fragmented supply chains—where extrusions come from one vendor, glass from another, and multi-point hardware from a third-party distributor—introduce massive site-level tolerance misalignments. The procurement trend heavily favors tier-1 OEM factories offering complete in-house pre-assembly, dynamic cycle testing (100,000 opening cycles), and third-party witnessed FAT inspections prior to sea-freight containerization in custom moisture-sealed steel A-frames.
State-of-the-Art Technical Advancements in Aluminum Glass Doors
The intersection of precision structural glass engineering and metallurgical fabrication has unlocked architectural possibilities previously unattainable. Below are the core technological frontiers deployed across our Foshan manufacturing lines:
1. Multi-Cavity PA66 GF25 Polyamide Thermal Barriers
Traditional poured-and-debridged polyurethane thermal breaks suffer from longitudinal shear failure and thermal degradation over decadal operational lifespans. Modern architectural specifications mandate mechanically crimped 24mm to 34mm polyphthalamide/polyamide 6.6 strips reinforced with 25% transverse glass fibers (PA66 GF25). By matching the coefficient of thermal expansion of architectural aluminum ($2.3 \times 10^{-5}/\text{K}$), our thermal break assemblies prevent delamination and bimetallic warping even during extreme delta-T conditions (+45°C exterior solar load against +21°C conditioned interior spaces), achieving overall assembly U-factors as low as $1.1\,\text{W}/(\text{m}^2\cdot\text{K})$ with triple Low-E insulated glass units.
2. Structural Silicone Glazing (SSG) & Pressure-Equalized Drainage
In conventional gasketed doors, water ingress occurs during severe monsoon and typhoon wind pressures when air pressure differences pump moisture past exterior wet seals. DERCHI engineers deploy four-sided structural silicone glazing (Dow Corning / Sika two-part neutral cure silicone) combined with rain-screen pressure equalization chambers. Front chambers vent to the exterior, balancing internal cavity pressure with outside gust loads to eliminate the pressure differential that drives capillary water penetration, consistently surpassing 700 Pa static water penetration thresholds under ASTM E331 and EN 12208 Class 9A.
3. High-Load Floor Bearing Pivot Assemblies (Up to 1,000 kg)
Architectural demand for monumental pivot doors measuring up to 3000mm in width and 5000mm in height places immense torsional and vertical shear stress on the pivoting axis. Our custom OEM fabrication integrates heavy-duty German and Italian hydraulic pivot systems anchored directly into sub-floor structural concrete via adjustable base plates. Featuring needle thrust bearings, internal soft-close deceleration dampers, and multi-point 360-degree perimeter acoustic magnetic gaskets, these massive leaves operate with less than 25 Newtons of manual push/pull force while completely resisting sagging over hundreds of thousands of cycles.
4. Impact Interlayer Engineering: SentryGlas (SGP) vs. Standard PVB
In coastal hurricane zones (Florida Miami-Dade, the Caribbean, Southeast Asia, and the Australian Cyclone Region), fenestration must survive large-missile projectile impacts followed by cyclic positive and negative wind pressure oscillations. We laminate safety glass units utilizing 1.52mm and 2.28mm Kuraray SentryGlas ionoplast interlayers. SGP is five times tougher and up to 100 times stiffer than conventional PVB interlayers. Even if both tempered glass lites break under severe debris impact, the ionoplast sheet retains structural post-breakage rigidity, preventing room depressurization and catastrophic roof blowouts.
System Performance Matrix: Custom OEM Fabrication Typologies
The matrix below details structural load capacities, thermal resistance metrics, and acoustic ratings across primary aluminum door assemblies manufactured in our certified Foshan production facility.
| Door System Typology | Profile Wall / Extrusion | Glazing Specification | Thermal U-Value (W/m²·K) | Acoustic STC (Rw) | Structural Wind Rating | Global Standard Compliance |
|---|---|---|---|---|---|---|
| Thermal Break Casement Door | 6063-T6 / 2.0mm Multi-Chamber | 5mm Low-E + 16A Argon + 5mm Temp | 1.4 - 1.6 | 38 dB - 42 dB | Class 5 (EN 12210) | CE / AS 2047 |
| Heavy Bi-Fold Patio Door | 6063-T5 / 2.5mm Heavy Gauge | 6mm Temp + 12A + 6mm Temp | 1.8 - 2.1 | 35 dB - 38 dB | +/- 3500 Pa Design | ISO 9001 / BS 6375 |
| Miami-Dade Impact Slider | 6061-T6 / 3.0mm Reinforced | 6mm Temp + 1.52 SGP + 6mm + 12A + 6mm | 1.5 - 1.8 | 42 dB - 45 dB | DP +/- 70 to 90 PSF | Miami-Dade TAS / AAMA |
| Monumental Architectural Pivot | Custom Box-Section / 3.0-4.0mm | 8mm Low-E + 1.52 PVB + 8mm Lami-Insul | 1.3 - 1.5 | 40 dB - 44 dB | High-Rise Custom FEA | AS 2047 N6 / CE |
| Slim-Stile Arched French Door | 6063-T5 / 2.0mm Crittall Slim | 5mm Temp + 9A Argon + 5mm Low-E | 1.9 - 2.2 | 33 dB - 36 dB | Standard Exterior DP 45 | Qualicoat / ISO |
| Ballistic Commercial Slider | 6061-T6 / 3.5mm Steel Armored | Multi-Ply Polycarbonate Clad Shield | N/A (Security Priority) | 45 dB+ | Severe Threat Rated | UL 752 Ballistic L1-3 |
Guangdong Dejiyoupin Doors & Windows Co., Ltd.
Recognized consistently as an industry frontrunner and ranked among the Top 10 premium architectural door and window manufacturers in China, DERCHI brings more than 25 years of engineering mastery to global custom fabrication. From our centralized 180,000 square meter industrial park in Foshan, Guangdong, we manage end-to-end production under rigid ISO 9001 and six-sigma quality control standards.
Our facilities are equipped with German Elumatec 5-axis CNC machining centers, automated robotic corner-crimping cells, and class-10,000 cleanroom structural silicone curing tunnels. With active project footprint across the United States, Australia, the Philippines, Singapore, the United Arab Emirates, and Saudi Arabia, our bilingual engineering team is primed to handle strict technical specifications, provide free clash-detected CAD shop drawings, and guarantee on-time port delivery.
Massive scale housing dedicated extrusion processing, automated powder-coating lines, CNC milling stations, and custom glass curing bays.
Certified to international building standards including CE EN 14351-1, Australian AS 2047 (N6 Cyclone Tested), ISO 9001, and UL fire ratings.
Full conformance with AAMA 2604/2605 fluorocarbon (PVDF) 3-coat finishes and Qualicoat Seaside Class 2 anodizing guaranteeing 25-year gloss retention.
In-house facade architects and structural engineers provide customized 2D fabrication drawings, 3D Revit models, and structural calculation books within 48 hours.
Frequently Asked Questions: B2B Sourcing of Custom Aluminum Doors
Critical technical, logistical, and testing inquiries answered by our senior fenestration engineering and export operations directors.
Q1: How does DERCHI ensure structural compliance with high-wind and hurricane regulations?
Every hurricane-rated aluminum glass door undergoes stringent physical prototype testing for air infiltration (ASTM E283), water penetration under static pressure (ASTM E331), and uniform structural load deflection (ASTM E330). For Florida and Caribbean jurisdictions requiring Miami-Dade Notice of Acceptance (NOA) or Florida Product Approval, systems are subjected to TAS 201 (Large Missile Impact test using 9-lb 2x4 lumber at 50 ft/sec) followed by TAS 202 and TAS 203 (9,000 positive and negative cyclic pressure loads). Extrusions are reinforced with internal steel structural stiffeners within the interlockers to keep deflection strictly below L/175.
Q2: What surface coating technology is applied for extreme coastal and salt-spray environments?
For coastal applications located within 500 meters of the coastline or in humid marine zones across Southeast Asia and the Gulf Coast, standard architectural powder coatings rapidly blister and oxidize. We apply AkzoNobel Interpon D3000 or PPG Duranar fluoropolymer (PVDF) liquid coatings meeting AAMA 2605 specifications (minimum 70% Kynar 500 / Hylar 5000 resin base). These coatings undergo 4,000+ hours of continuous salt-spray testing under ASTM B117 and 10 years of Florida outdoor exposure testing without chalking or significant color shift ($\Delta E < 5$). Anodized finishes are specified at minimum AA-M10C22A41 (Class I, 18 to 25 micron anodic depth) with Qualicoat Seaside certification.
Q3: Can you fabricate bespoke radius arches, Crittall grid layouts, and oversized pivot entries?
Yes. Because DERCHI maintains dedicated stretch-bending, CNC 5-axis profile machining, and laser-guided welding cells, we fabricate true continuous radius arched heads, Gothic arch profiles, and segmented transoms without profile distortion or surface rippling. Our Crittall-inspired slim-profile casement and pivot doors achieve visible sightlines as slender as 25mm to 35mm while maintaining thermal break continuity. For oversized pivot doors up to 3000mm $\times$ 5000mm, we engineer internal multi-chambered box-section transoms with concealed multi-point perimeter tie-rods to eliminate thermal bowing and sag.
Q4: What is the standard OEM/ODM production lead time and sea freight containerization procedure?
Following formal approval of our fully detailed CAD shop drawings and hardware schedule, standard fabrication lead times span 25 to 35 business days depending on surface finish custom coloration and glass processing complexity (e.g., SGP lamination autoclaving). For export packaging, we eliminate moisture damage during long ocean transit by encasing all pre-assembled or knock-down (KD) frames in polyethylene shrink wrap, heavy corner foam bumpers, and custom fumigated non-wood or steel A-frame crating strapped with high-tensile steel bands, optimized for 40ft High Cube (HC) and open-top container loading.
Q5: How do your thermal break profiles prevent bimetallic deflection in high-temperature climates?
Bimetallic warping occurs when the exterior aluminum skin expands due to intense direct solar radiation (often reaching 70°C in tropical or desert climates) while the interior skin remains cooled at 20°C, causing the door sash to bow outwards and bind against the frame. DERCHI engineers prevent this phenomenon by specifying engineered 'anti-bi-metal' split polyamide insulating bars with sliding composite joints. These specialized PA66 GF25 profiles decouple differential longitudinal thermal expansion forces between exterior and interior chambers, ensuring flawless latching and hermetic perimeter gasket compression in all seasons.
Q6: What hardware, locking systems, and smart home protocols can be integrated at the factory?
As an OEM/ODM engineering facility, we integrate top-tier architectural hardware brands according to project specifications, including German Siegenia, Roto Frank, Hoppe, and Italian Giesse multi-point perimeter lock mechanisms. For modern luxury access control, our extrusion stiles can be pre-milled and wired for concealed biometric fingerprint scanners, digital touch keypads, magnetic shear locks (1,200 lb holding force), and motorized multipoint deadbolts fully compatible with KNX, Control4, Crestron, and dry-contact smart building management protocols.
Plan Your Architectural Project with Our Senior Engineering Team
Send us your door schedules, architectural elevations, or structural CAD specifications. Our technical engineering division will generate comprehensive CAD shop drawings, thermodynamic U-factor calculations, and factory-direct commercial estimates within 24 to 48 hours.
