Engineering Whitepaper & Specifications
Thermal Engineering Standards for Sub-Zero Fenestration
Understanding the strict structural and thermodynamic benchmarks mandated by SNiP 23-02-2003 and GOST 30674-99 for exterior architectural openings throughout the Greater Moscow Region.
The Microclimate Imperative: Surviving Central Russian Temperature Deltas
Fenestration architecture deployed across Moscow and the surrounding Moscow Oblast must endure extreme cyclical climate stress. With winter lows routinely plunging past -30°C and interior spaces maintained at a humidified +22°C, the resultant 52°C thermodynamic delta exerts enormous mechanical, structural, and hygroscopic pressures across door leaf profiles. Standard commercial grade exterior doors succumb rapidly to condensation cascades, hardware seizure, thermal bridging, and structural warping induced by bi-metallic expansion differentials.
As an international industrial manufacturing enterprise with a modern 180,000㎡ production complex in Foshan, Guangdong (Dejiyoupin Doors and Windows Co., Ltd. / DERCHI), our engineering division manufactures advanced exterior door assemblies that eliminate thermal bridge conductivities. By incorporating multi-chamber structural polyimide (PA66 GF25) thermal breaks, continuous argon-filled triple-layer tempered Low-E glazing units, and multi-point perimeter compression seals, our door lines maintain low heat-transfer coefficients conforming rigorously to Moscow's residential thermal performance benchmarks ($U_d \le 0.85\ \text{W/(m}^2\cdot\text{K)}$).
| Performance Criterion | Russian SNiP / GOST Baseline | DERCHI Heavy-Duty Aluminum Clad Spec | Architectural Advantage |
|---|---|---|---|
| Thermal Transmittance ($U_d$) | $\le 1.2\ \text{W/(m}^2\cdot\text{K)}$ | $0.78 - 0.88\ \text{W/(m}^2\cdot\text{K)}$ | Drastic reduction in heating kilowatt loss during sustained deep freezes. |
| Air Permeability Class | Class B or C (GOST 26602.2) | Class 4 / Class A (Hermetic EPDM continuous dual/triple loop) | Eliminates micro-drafts, frost formation, and interior perimeter chill. |
| Acoustic Attenuation ($R_w$) | $\ge 32\ \text{dB}$ | $42 - 46\ \text{dB}$ (Acoustic laminated safety glass configuration) | Suppresses urban arterial noise along Moscow Ring Road (MKAD) & city zones. |
| Wind Load Resistance | Class B | AS 2047 N6 / Class A1 (Exceeding 3000 Pa) | Zero deflection across multi-story penthouse and exposed suburban villa portals. |
Whether specifying for luxury suburban residences in Rublyovka and Novorizhskoye Shosse or commercial corporate developments within Moscow City (MIBC), our custom-machined entrance configurations deliver uncompromising long-term stability.
Catalog Showcase
Engineered Door & Fenestration Portfolio
Factory-direct systems configured with specialized cold-bridge interruption profiles, heavy-load pivot assemblies, and multi-point security hardware.

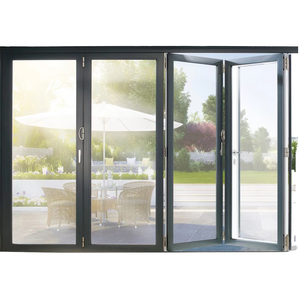

Heavy-Duty Acoustic Foldable Glass Wall Portal

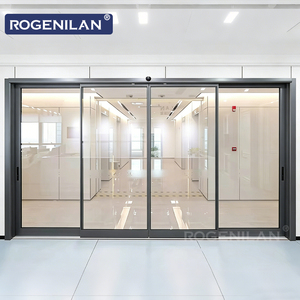

Commercial High-Traffic Automated Storefront Slider
Slimline Architectural Low-E Glass Sliding Partition
Reinforced Dual Tempered Swing Exterior Door

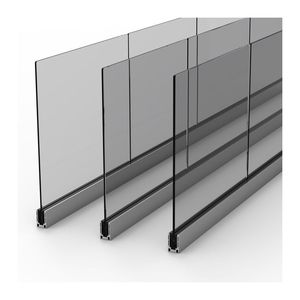

Heavy Structural Aluminum U-Channel Glass Balustrade
Impact-Rated High-Efficiency Thermal Sliding System
Architectural Grand Pivot Door for Luxury Villas
180,000㎡
Manufacturing Footprint
600+
Specialized Craftsmen & Engineers
100+
International Patents & Certs
25+
Years Engineering Heritage
Local Architectural Context
Moscow Project Application Scenarios
Precision exterior envelope engineering deployed across elite private estates, commercial centers, and residential developments throughout Central Russia.
◆
Suburban Luxury Cottages & Villas
In exclusive enclaves along Novorizhskoye and Rublyovo-Uspenskoye Shosse, architects favor large-format entrances. Our aluminum-clad pivot doors integrate interior solid timber finishes with exterior architectural fluorocarbon-sprayed aluminum shields. This dual-face configuration prevents condensation rot while preserving authentic, warm architectural interiors.
◇
Urban Penthouse Portals & Winter Gardens
Across central Moscow developments (Khamovniki, Presnensky, and Ramenki), panoramic sliding systems and glass partitions require heavy acoustic buffering to neutralize city noise while resisting negative wind pressures on higher floors. Our acoustic laminate glazing assemblies offer certified noise reduction exceeding 42 dB.
◈
Commercial Storefronts & Hotel Vestibules
High-foot-traffic corporate entrances around Moscow City (MIBC) demand robust automated sliding door solutions equipped with integrated thermal vestibule configurations. Our reinforced commercial doors integrate seamlessly with commercial air curtain enclosures to stop street-level draft infiltration.
Emerging Fenestration Trends in Russian Architecture
The Moscow premium door market is experiencing an architectural paradigm shift. Standard PVC and light uninsulated metal doors are being phased out in favor of composite high-performance systems:
- Biophilic Interior Real Wood with Armor-Shield Outer Shells: Moscow luxury buyers demand authentic natural oak, walnut, and larch inside living areas, wrapped externally in resilient, anti-corrosive powder-coated architectural aluminum profiles impervious to road salt, freezing rain, and UV degradation.
- Concealed Multi-Point Biometric Security: Transitioning beyond mechanical lock cylinders prone to cold jamming, our doors integrate built-in concealed heated biometric scanners, RFID sensors, and German-designed multi-point locking mechanisms providing Grade RC3/RC4 burglary deterrence.
- Super-Span Pivot Entrances with Pneumatic Floor Dampers: Moving away from restricted standard doorway dimensions, villas now feature grand portals reaching 4.0 meters in height, supported by custom sub-floor pivot bearings that glide effortlessly despite severe ground frost heaving.
Enterprise Strength
Industrial Capacity & Technical Authority
Recognized as one of China's Top 10 fenestration and door manufacturing groups, DERCHI (Guangdong Dejiyoupin) delivers turn-key precision engineering for international procurement teams.
✓
Comprehensive CAD/BIM Shop Drawings
Our dedicated engineering department prepares free, millimeter-accurate structural CAD elevations, thermal bridging cross-sections, and opening schedules tailored to project specifications before extrusion cutting begins.
☼
Certified Thermal Multi-Cavity Extrusions
We utilize high-tensile 6063-T6 aluminum alloys combined with imported 25mm to 34mm PA66 GF25 fiberglass-reinforced polyamide thermal insulation strips, guaranteeing absolute structural stability without deformation.
⚙
Global Code Testing & Verifiable Quality
Products hold independent certifications including CE, ISO 9001, AS 2047 N6 cyclonic testing, and UL fire ratings, providing development teams and general contractors with complete inspection confidence.
✈
Cold-Chain Export Packaging & Logistics
Every door assembly is packed in waterproof heat-sealed film, high-density shock-absorbing corner buffers, and fully enclosed fumigated maritime plywood crates to guarantee damage-free transit to Russian rail hubs and ports.
Procurement Knowledge Base
Frequently Asked Questions by Moscow Specifiers
Technical clarifications on thermal insulation, condensation control, delivery schedules, and cold-weather installation protocols.
How do your aluminum-clad doors prevent internal frost and condensation at -30°C? +
Our cold-climate architectural doors incorporate a multi-chamber structural thermal break system using premium PA66 GF25 polyimide thermal struts. This creates an engineered thermal barrier that mechanically isolates the cold exterior aluminum profile from the internal structure. Coupled with triple-pane Low-E insulated glass units (IGUs) backfilled with 90% Argon gas and warm-edge composite spacers, the interior surface temperature remains comfortably above the dew point, completely eliminating condensation and perimeter frost formation during harsh Moscow winters.
Can the door frame accommodate floor thermal movement caused by seasonal frost heaving? +
Yes. For Russian applications, we supply specialized structural sub-frame mounting channels with adjustable thermal expansion brackets. In our heavy-duty pivot door collections, floor-bearing pivot boxes are installed within sealed, water-impermeable stainless-steel housings with micro-level alignment adjustments, ensuring smooth operation even with minor ground settling or seasonal sub-base movement.
What wood veneers and timber substrates are available for the interior cladding? +
We offer multi-layer laminated structural timbers including European White Oak, American Black Walnut, Larch, and Burma Teak. Multi-ply engineered lamination prevents natural wood warping caused by dry indoor winter heating, while the exterior aluminum cladding protects the timber from external moisture, snow contact, and direct UV radiation.
What is the lead time for custom door schedules delivered to Moscow? +
Following CAD shop drawing sign-off, factory fabrication requires 25 to 35 business days depending on custom hardware, size, and architectural finish specifications. Shipping via direct sea-rail multimodal freight routes (Foshan to Moscow logistics hubs such as Vorsino or Silikatnaya) typically takes 18 to 28 days, ensuring predictable scheduling for construction milestones.
Are your automated and biometric access control systems tested for freezing temperatures? +
All electrical hardware, mortise locking systems, motorized drop seals, and biometric access scanners specified for cold climates are rated for industrial operation down to -40°C. We integrate low-temperature internal heating coils inside the lock housing and sensor heads to prevent freezing drizzle or condensation from locking the mechanical bolt throws.
Ready to Engineer Your Architectural Entrances?
Submit your door schedules, structural openings, or architectural elevations to our engineering team. We deliver complete CAD shop drawings, U-value thermal analysis, and competitive factory-direct quotations within 24 hours.
